Transport Simulation Vibration Test Machine Vertical Electromagnetic Vibration Table
Transport Simulation Vibration Test Machine Vertical Electromagnetic Vibration Table
Transport Simulation Vibration Test Machine Vertical Electromagnetic Vibration Table
Transport Simulation Vibration Test Machine Vertical Electromagnetic Vibration Table
Transport Simulation Vibration Test Machine Vertical Electromagnetic Vibration Table
Transport Simulation Vibration Test Machine Vertical Electromagnetic Vibration Table
Specifications
Model Number :
LR-H008
Place of Origin :
China
Brand Name :
Lonroy
MOQ :
1
Price :
negotiable
Packaging Details :
wooden package
Delivery Time :
5-8 work days
Supply Ability :
200
Maximum test load :
0-60 kg
Vibration direction :
vertical (up and down Y axis)
Machine weight :
about 100kg
Power supply voltage (V) :
220V 50HZ
Power :
0.75kw
Vibration waveform :
sine wave
Description

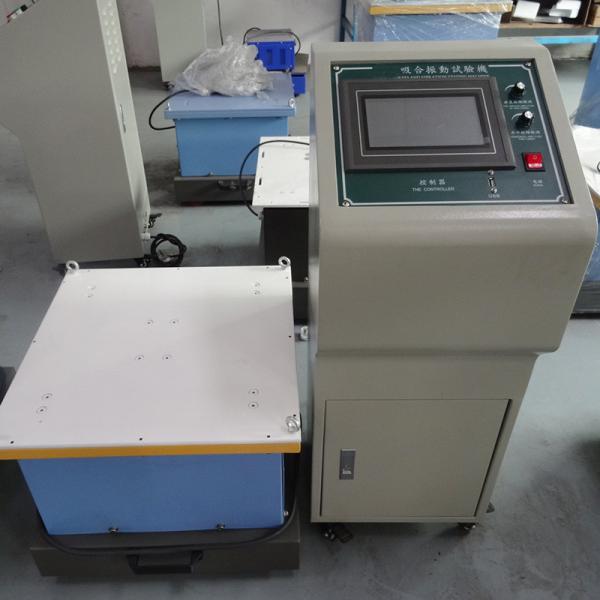

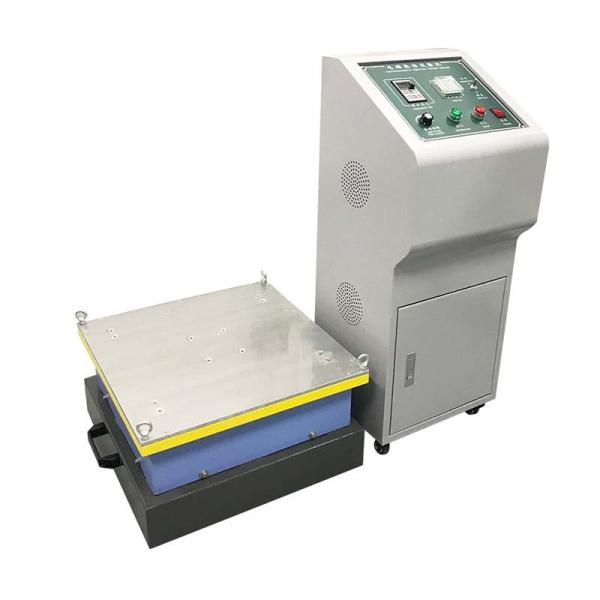

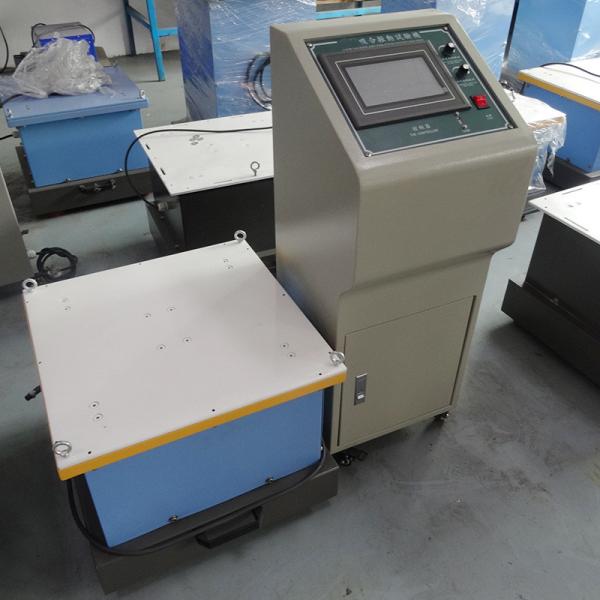

Electromagnetic Vertical Vibration Table Transport Simulation Vibration Test Machine

1. Use
Electromagnetic Vibration Table is widely used in national defense, aviation, communications, electronics, automotive, home appliances and other industries, this kind of equipment is used for early fault detection, simulation of actual working condition evaluation and structural strength testing, the product has a wide range of applications, wide applicability, significant test results, high reliability. Sine wave, frequency modulation, frequency scanning, programmable, frequency doubling, logarithmic, time control.


2. Technical Specification

1. Maximum test load 0-60 kg
2. Vibration direction vertical (up and down Y axis)
3. Table size please select the right table according to the actual size of the test product: 500 x 500 mm 750 x 750 mm 1000 x 1000 mm 1500 x 1500 mm
4. Amplitude 0 -- 5mm (random, varying with frequency)
5. Frequency sweep 1-600hz can be set arbitrarily, and the true standard frequency sweep (if 1-3000hz can be customized for price negotiation)
6. Maximum acceleration 10G
7. Functions frequency modulation, programmable and time control
8. Precision the frequency can be displayed to 0.01Hz and precision to 0.1hz
9. Programmable functions 1-600hz, 1-8 sections can be set at any frequency and time, and can be cycled
10. Frequency doubling function (0.01Hz) the number of 8 segments doubled from low to high frequency to high to low frequency
11. Logarithmic function (0.01Hz) there are 3 modes
12. Vibration waveform sine wave (half wave/full wave)
13. Time control any time can be set (in seconds)
14. Power 0.75kw
15. Power supply voltage (V) 220V 50HZ
16. Machine weight about 100kg
