Electromagnetic Vibration Testing Equipment Vertical And Horizontal Vibration Tester
Electromagnetic Vibration Testing Equipment Vertical And Horizontal Vibration Tester
Electromagnetic Vibration Testing Equipment Vertical And Horizontal Vibration Tester
Electromagnetic Vibration Testing Equipment Vertical And Horizontal Vibration Tester
Specifications
Model Number :
LR-H003
Place of Origin :
China
Brand Name :
Lonroy
MOQ :
1
Price :
negotiable
Packaging Details :
wooden package
Delivery Time :
5-8 work days
Supply Ability :
200
Frequency range (Hz) :
5~400
Table size W.D.H. (mm) :
1300×570×450
Maximum test load (kg) :
40
Total weight (kg) :
150
Power requirements :
AC 220V/50Hz ±10%
Work table material :
magnesium aluminum alloy
Description

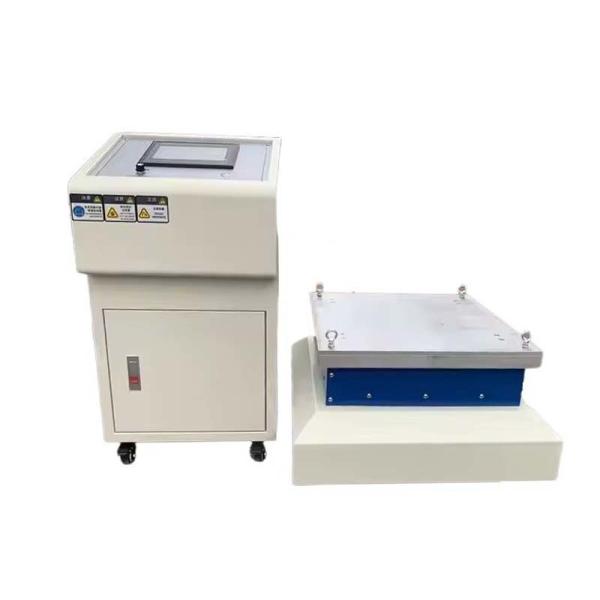

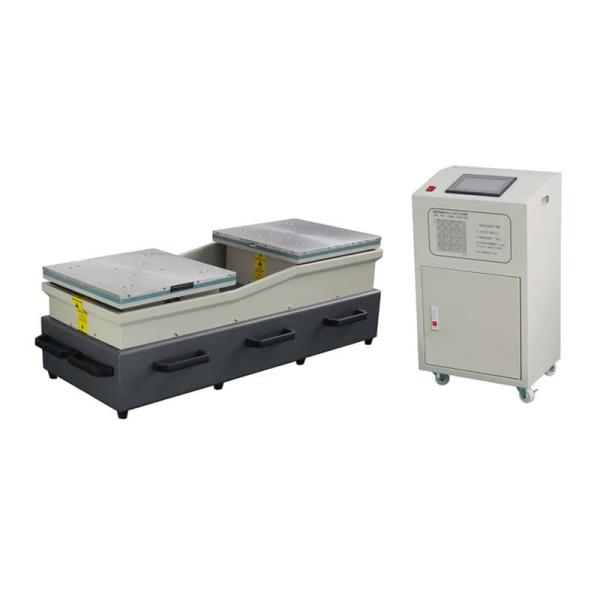

Electromagnetic Type Vertical and Horizontal Vibration Tester

1. Product overview
1. The electromagnetic vibration test series is widely applicable to industries such as national defense, aerospace, communication, electronics, automobiles, and home appliances. This equipment is used for early fault detection, simulation of actual working conditions assessment and structural strength tests. This product has a wide range of applications and a broad application scope, and the test results are significantly reliable.
2. Humanized operation control, controlled by professional control software, makes the equipment work more stably and reliably
3. The whole machine is made of composite industrial materials, precisely processed and ultra-quiet
4. The countertop is made of magnesium-aluminum alloy material, which can completely isolate magnetic field interference and effectively prevent the measured object from being magnetized
5. Two working modes, sweep frequency and fixed frequency, are available to meet the testing requirements of different industries
6. High-precision frequency output, four-point synchronous vibration, and uniform vibration table
7. Strong anti-magnetic and anti-interference ability
8. It has the safe and reliable protection function
9. The platform body is cooled by high-efficiency and low-noise fans to ensure long-term continuous operation.

2. Technical parameters

Frequency range (Hz) 5~400
Sweep frequency range (Hz) 5~400
Maximum acceleration (m/s2) 170
Maximum test load (kg) 40
Maximum no-load displacement (mmp-p) 0~5
Vibration waveform sine wave
Vibration axial direction vertical + horizontal
Excitation mode electromagnetic excitation
Cooling mode air cooling
Operating temperature requirement (ºC) 0~+40
Operating humidity requirements (%RH) 0-90, no condensation
Power requirements single-phase AC 220V/50Hz ±10%
System consumed power (KVA) 2.2
Work table material magnesium aluminum alloy
Table screw size (standard) M8 (customizable)
Number of table screws 8 (customizable)
Total weight (kg) 150
Table size W.D.H. (mm) 450×450×43
Table size W.D.H. (mm) 1300×570×450
