Fully Automatic Thermal Conductivity Equipment Protective Plate Heat Flow Meter Method
Fully Automatic Thermal Conductivity Equipment Protective Plate Heat Flow Meter Method
Fully Automatic Thermal Conductivity Equipment Protective Plate Heat Flow Meter Method
Fully Automatic Thermal Conductivity Equipment Protective Plate Heat Flow Meter Method
Specifications
Brand Name :
Lonroy
Model Number :
LRPL-III-300
Certification :
Includes Calibration Certification
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
wooden package
Size :
300 × 300 mm
Thickness Measurement :
0-50 mm
Pressure Clamping :
0-1000 N
System Accuracy :
±3%
Warranty :
1 Year
Description

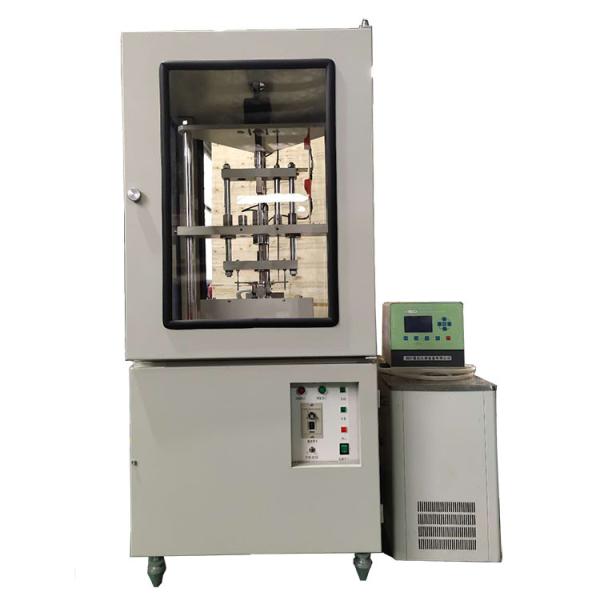

LRPL-III-300 Fully Automatic Thermal Conductivity Equipment (Protective Plate Heat Flow Meter Method)

1.Description:
This instrument adopts the internationally popular method of using thermal flow meters to measure the thermal conductivity and thermal resistance. It is equipped with a computer to achieve fully automatic testing and generate experimental reports. It is suitable for testing the thermal properties of low thermal conductivity materials such as insulation materials and refractory materials. With the addition of a sample frame, it can also be used for powder material testing. It is widely used in universities, research institutes, quality inspection departments, factories and mines.
2.Standard

The methods for determining the thermal resistance and thermal conductivity of JIS-1412-2 heat-resistant materials, GB/T10295-2008, ISO 8301:1991 (the steady-state thermal resistance and related properties of insulation materials - the hot flow meter method), and ASTM C518-04 (the test methods for determining steady-state heat flux and heat transfer characteristics using the hot flow meter method).

3.Technical Parameter.

Parameter Specification
Thermal Conductivity 0.0010-3.0000 W/(m·K) (4 decimals)
Accuracy & Repeatability Accuracy: ±3%
Repeatability: ±1%
Sample Specifications
- Size 300 × 300 mm (Standard)
Customizable
- Thickness 10-50 mm
- Materials Solids, Powders
Temperature Control
- Hot Surface RT-100°C (Standard)
Up to 300°C (Optional)
Accuracy: ±0.1°C
SCR-controlled plate heater
- Cold Surface -5-99.9°C
Water-cooled precision bath
Accuracy: ±0.1°C
Automation
- Pressure Clamping 0-1000 N (Resolution: 0.1 N)
- Thickness Measurement 0-50 mm (Resolution: 0.01 mm)
Environmental Control Acrylic wind shield with side door
Protective monitoring system for stability
