LRPY-300 10N Thermal Analysis Instrument Plastic Expansion Meter
LRPY-300 10N Thermal Analysis Instrument Plastic Expansion Meter
Specifications
Brand Name :
Lonroy
Model Number :
LRPY-300
Certification :
Includes Calibration Certification
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
wooden package
Power Supply :
220V ± 10%, 50Hz
CTE Sample :
≤ Ø10 × 20 mm
Max. Load :
10N
Temperature Resolution :
0.1°C
Warranty :
1 Year
Description

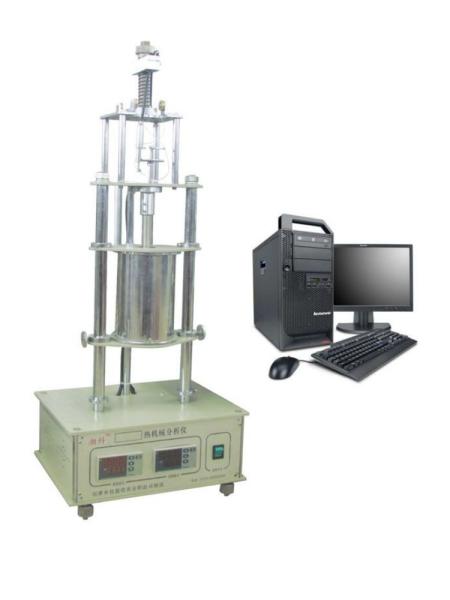

LRPY-300 Thermal Analysis Instrument Plastic Expansion Meter

1.Description:

This instrument is mainly used to measure three thermal physical indicators of plastics: the expansion coefficient, the glass transition temperature, and the Vicat softening temperature of thermoplastic. The test for the glass transition temperature complies with GB11998-89 (Method for Measuring the Glass Transition Temperature of Plastics - Thermal Mechanical Analysis Method), and the measurement of the Vicat softening temperature of thermoplastic complies with GB/T1633-2000 ISO 306:1994 (Determination of Vicat Softening Temperature (VST) of Thermoplastic). The instrument is widely used in laboratories of material manufacturing enterprises, quality inspection units, universities, research institutes, etc., for thermal mechanical analysis of plastics and other materials.

2.Technical Parameter.

Parameter Specification
Furnace Temperature Range RT to 300°C
Max. Load 10 N
Power Supply 220V ± 10%, 50Hz
Max. Power Consumption < 0.5 kW
Displacement Measurement

Range: 0–3 mm

Resolution: 0.1 µm
Temperature Resolution 0.1°C
Sample Sizes:
• CTE Sample ≤ Ø10 × 20 mm
• Glass Transition (Tg) Cylinder: Ø(4.5±0.5) × (6.0±1.0) mm
Cube: (4.5±0.5)³ × (6.0±1.0) mm
• Vicat Softening Point Thickness: 3–6.5 mm
Base: 10 mm square or Ø10 mm cylinder
Control & Reporting Fully computer-controlled
Automatic test result recording & report generation
Printable output
