ISO 9863 4593 ASTM D5199 Geotextile Thickness Tester with 0.001mm to 20mm Measurement Range for Plastic Films
ISO 9863 4593 ASTM D5199 Geotextile Thickness Tester with 0.001mm to 20mm Measurement Range for Plastic Films
ISO 9863 4593 ASTM D5199 Geotextile Thickness Tester with 0.001mm to 20mm Measurement Range for Plastic Films
ISO 9863 4593 ASTM D5199 Geotextile Thickness Tester with 0.001mm to 20mm Measurement Range for Plastic Films
ISO 9863 4593 ASTM D5199 Geotextile Thickness Tester with 0.001mm to 20mm Measurement Range for Plastic Films
ISO 9863 4593 ASTM D5199 Geotextile Thickness Tester with 0.001mm to 20mm Measurement Range for Plastic Films
ISO 9863 4593 ASTM D5199 Geotextile Thickness Tester with 0.001mm to 20mm Measurement Range for Plastic Films
ISO 9863 4593 ASTM D5199 Geotextile Thickness Tester with 0.001mm to 20mm Measurement Range for Plastic Films
ISO 9863 4593 ASTM D5199 Geotextile Thickness Tester with 0.001mm to 20mm Measurement Range for Plastic Films
ISO 9863 4593 ASTM D5199 Geotextile Thickness Tester with 0.001mm to 20mm Measurement Range for Plastic Films
ISO 9863 4593 ASTM D5199 Geotextile Thickness Tester with 0.001mm to 20mm Measurement Range for Plastic Films
ISO 9863 4593 ASTM D5199 Geotextile Thickness Tester with 0.001mm to 20mm Measurement Range for Plastic Films
Specifications
Brand Name :
Lonroy
Place of Origin :
China
MOQ :
1
Measurement Range :
0.001mm to 20mm
Minimum Graduation :
0.001 millimeter
Pressing Foot Diameter :
10mm or 6.35mm
Work Stress :
2 ± 0.01 kPa, 20 ± 0.1 kPa, 200 ± 1 kPa
Voltage :
220 V
Protection Class :
IP56
Pressing Foot Shape :
Circular
Measurement Method :
Micrometer
Display Type :
Digital
Operation Type :
Electric lifting
Measurement Function :
Single and continuous
Time Preset :
Yes
Compliance Standards :
GB/T 13761.1-2009, ISO 9863-1-2005, GB/T 6672-2001, ISO 4593-1993, ASTM D5199-2001, SL/T 235-6-2012, JTG E50T1112-2006
Material Compatibility :
Geotextiles, plastic films
Plate Type :
Reference plate
Certification :
ISO ASTM CE
Price :
Negotaible
Packaging Details :
Wooden package
Delivery Time :
5-8 work days
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Description

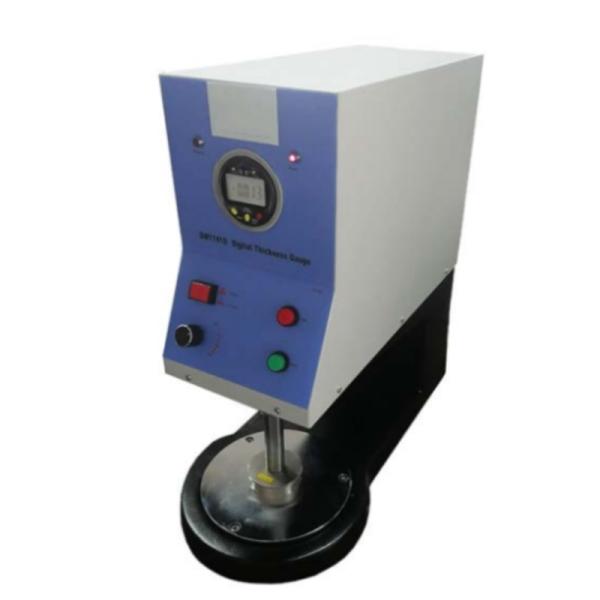

ISO 9863 4593 Geotextile Thickness Measuring Instrument ASTM D5199 Plastic Films Thickness Testing Machine Thickness Meter

Product Description

Scope of Application

The geotextile thickness measuring instrument is used to determine the thickness of smooth geotextiles and other plastic films under specified pressure and time. The sample is placed on the reference plate, and a circular pressing foot parallel to the reference plate is used to apply the specified pressure to the sample for a certain period of time. Then, the vertical distance between the two plates is measured. The thickness of the geotextile is expressed as the average value of the test results.

Features

It is designed and manufactured in accordance with standards, and complies with all relevant standards and specifications.

It has the functions of single and continuous measurement.

Foot press electric lifting, easy to operate;

It can preset the pressing weight time in advance, thereby reducing human operational errors.

It is measured using a micrometer, ensuring high precision.

The measurement values are displayed numerically, making it easy to read.

Standards

GB/T 13761.1-2009,ISO 9863-1-2005,GB/T 6672-2001,ISO 4593-1993

ASTM D5199-2001,SL/T 235-6-2012,JTG E50T1112-2006

ISO 9863 4593 Geotextile Thickness Measuring Instrument ASTM D5199 Plastic Films Thickness Testing Machine Thickness Meter

Technical Specification

Measurement Range

0.001mm to 20mm

Minimum Graduation Value

0.001 millimeter

Pressing Foot Diameter

Φ10mm or Φ6.35mm

Work Stress

2 ± 0.01 kPa, 20 ± 0.1 kPa, 200 ± 1 kPa
