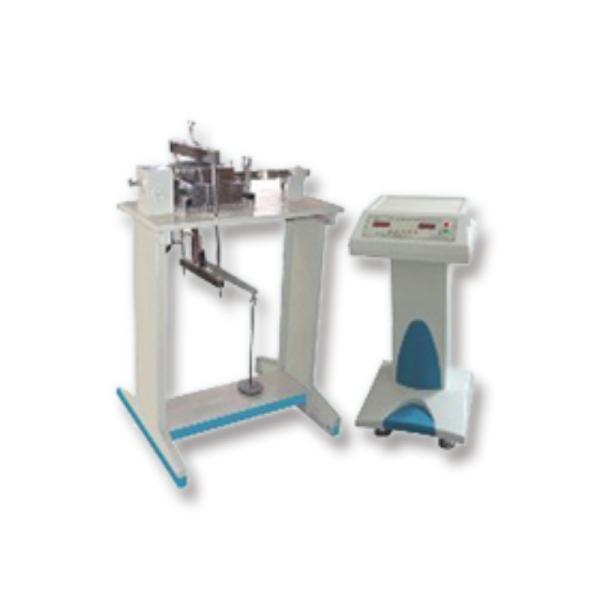

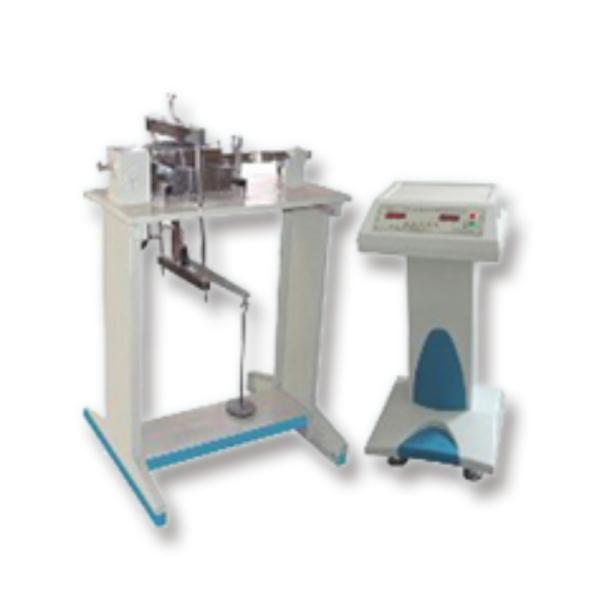

ISO 12957 ASTM D5321 Geosynthetic Direct Shear Apparatus Geotextile Interface Friction Test Machine with 0-10KN Force Measurement Range
ISO 12957 ASTM D5321 Geosynthetic Direct Shear Apparatus Geotextile Interface Friction Test Machine with 0-10KN Force Measurement Range
ISO 12957 ASTM D5321 Geosynthetic Direct Shear Apparatus Geotextile Interface Friction Test Machine with 0-10KN Force Measurement Range
ISO 12957 ASTM D5321 Geosynthetic Direct Shear Apparatus Geotextile Interface Friction Test Machine with 0-10KN Force Measurement Range
ISO 12957 ASTM D5321 Geosynthetic Direct Shear Apparatus Geotextile Interface Friction Test Machine with 0-10KN Force Measurement Range
ISO 12957 ASTM D5321 Geosynthetic Direct Shear Apparatus Geotextile Interface Friction Test Machine with 0-10KN Force Measurement Range
ISO 12957 ASTM D5321 Geosynthetic Direct Shear Apparatus Geotextile Interface Friction Test Machine with 0-10KN Force Measurement Range
ISO 12957 ASTM D5321 Geosynthetic Direct Shear Apparatus Geotextile Interface Friction Test Machine with 0-10KN Force Measurement Range
ISO 12957 ASTM D5321 Geosynthetic Direct Shear Apparatus Geotextile Interface Friction Test Machine with 0-10KN Force Measurement Range
ISO 12957 ASTM D5321 Geosynthetic Direct Shear Apparatus Geotextile Interface Friction Test Machine with 0-10KN Force Measurement Range
ISO 12957 ASTM D5321 Geosynthetic Direct Shear Apparatus Geotextile Interface Friction Test Machine with 0-10KN Force Measurement Range
ISO 12957 ASTM D5321 Geosynthetic Direct Shear Apparatus Geotextile Interface Friction Test Machine with 0-10KN Force Measurement Range
Specifications
Brand Name :
Lonroy
Place of Origin :
China
MOQ :
1
Force measurement range :
0 - 10KN
Horizontal shear rate :
0.02 - 3mm/min
Horizontal shear displacement :
0 - 30mm
Rated voltage :
AC220V 50Hz
Vertical loading pressure :
100kpa, 200kpa, 300kpa, 400kpa
Protection class :
IP56
Transmission type :
Ball screws
Load sensor type :
Wheel-rim type
Transmission mechanism :
Circular arc tooth synchronous belts
Speed ratio :
1:100,000
Frame structure :
Floor-standing
Motor type :
High-precision stepper
Shear implementation :
High-precision stepper motors
Coaxiality process :
Special processes
Fixture design :
Firm clamping, no sliding
Certification :
ISO ASTM CE
Price :
Negotaible
Packaging Details :
Wooden package
Delivery Time :
5-8 work days
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Description

ISO 12957 ASTM D5321 Geosynthetic Direct Shear Apparatus Sand Geotextile Interface Friction Test Machine

Product Description

Scope of Application

By conducting direct shear tests on the contact surface of standard sand and geotextile, the friction characteristics of the sand/geotextile interface were determined. This method is applicable to all geotextiles and their related products. High-precision stepping motors were used.

Compliant with standards

ISO12957.1, GB/T17635.1, ASTM D5321, JTGE50T1129, SL/T235-199

Product features

The mainframe adopts a floor-standing frame structure, featuring high strength, minimal deformation, and an elegant and stylish appearance; it uses imported high-precision ball screws for transmission, ensuring efficient and smooth operation;

It employs high-precision wheel-rim type load sensors, offering high measurement accuracy and excellent stability;

The transmission part uses circular arc tooth synchronous belts for transmission, ensuring no gap in both directions during the transmission process;

The speed ratio can exceed 1:100,000;

The fixture is specially designed for firm clamping, convenient operation, and no sliding of the jaw;

Special processes ensure the coaxiality of the testing machine and effectively eliminate the influence of irregular test specimens on the sensors.


ISO 12957 ASTM D5321 Geosynthetic Direct Shear Apparatus Sand Geotextile Interface Friction Test Machine

Technical Specification

Horizontal shear implementation

Achieved using high-precision stepper motors

Force measurement range

0 - 10KN

Vertical loading pressure

100kpa, 200kpa, 300kpa, 400kpa

Horizontal shear rate

0.02 - 3mm/min

Horizontal shear displacement

0 - 30mm

Rated voltage

AC220V 50Hz
