Specifications
Brand Name :
Lonroy
Place of Origin :
China
MOQ :
1
Inner diameter :
50 ± 0.5 mm
Sample thickness :
20 mm
Power supply :
AC 220V ± 10% 50Hz
Dimensions :
400 × 500 × 850 mm
Protection class :
IP56
Max water head :
250 mmH2O
Time control range :
0 to 99.9 seconds
Time accuracy :
0.1 seconds
Graduated cylinder :
1000 ml
Measurement accuracy :
10 ml
Water level indicator :
1 mm division
Temperature range :
0 - 60℃
Temperature accuracy :
0.1℃
Sensor type :
Electronic temperature sensor
Voltage :
220 V
Certification :
ISO ASTM CE
Price :
Negotaible
Packaging Details :
Wooden package
Delivery Time :
5-8 work days
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Description

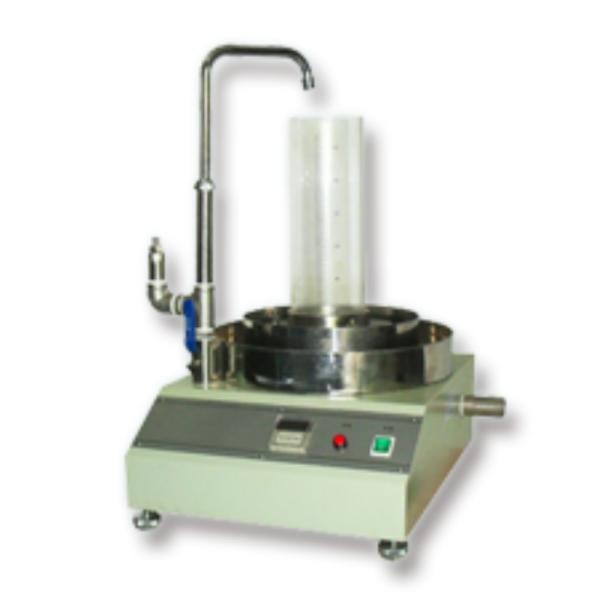

ISO 11058 ASTM D4716 Geotextile Permeability Tester Geotextiles Vertical Permeability Coefficient Testing Machine

Product Description

Scope of application

The geotextile permeability tester (for use in the water conservancy industry or in accordance with national standards) is used to test the vertical permeability coefficient and permeability rate of geotextiles and composite materials under no-load conditions, constant water head, and in laminar flow conditions.

Relevant standards

SL/T235-2012, GB/T15789, ISO11058, ASTM D4716


ISO 11058 ASTM D4716 Geotextile Permeability Tester Geotextiles Vertical Permeability Coefficient Testing Machine

Technical Specification

Maximum water head pressure difference

250 mmH2O

Inner diameter of the holder

50 ± 0.5 mm

Applicable sample thickness

20 mm

Time controller

Can be set from 0 to 99.9 seconds; time control accuracy: 0.1 seconds

Graduated cylinder

1000 ml (measurement accuracy: 10 ml)

Water level indicator

Division value: 1 mm

Temperature range & sensor

- Temperature range: 0 - 60℃ (accuracy: 0.1℃)
- Sensor type: Electronic temperature sensor

Power supply

AC 220V ± 10% 50Hz

Dimensions

400 × 500 × 850 mm
