Specifications
Brand Name :
Lonroy
Place of Origin :
China
MOQ :
1
Power :
3.5KW
Voltage :
220V
Input power :
AC220V 50Hz
Wavelength :
395nm
Light source :
UV LED
Single lamp power :
3000W
Light sources :
Group 1
Luminescent size :
400*100mm
Power adjustment :
20-100%
Control method :
Button control
Transmitting method :
Teflon mesh belt

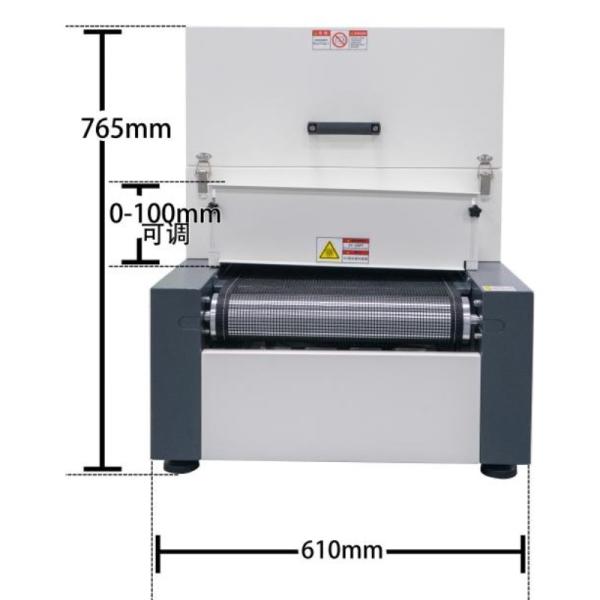

Feed height :
0-100mm
Protection class :
IP56
Environmental temperature :
-10℃ to 40℃
Relative humidity :
25% - 80% RH
Certification :
ISO ASTM CE
Price :
Negotaible
Packaging Details :
Wooden package
Delivery Time :
5-8 work days
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Description

Ultraviolet Curing Machine UV Curing Equipment Materials Printed Surface Curing Drying Testing Instrument

Product Description

I. Equipment Application

This machine is suitable for the coating, bonding, and molding of UV light-sensitive coatings, inks, and adhesives, or for the instant curing and drying of the printed surfaces of various materials.

1) Printing: Widely used in screen printing, offset printing, letterpress printing, self-adhesive labels, metal nameplates, PC, PVC, ABS, PS, acrylic, terephthalate, glass, ceramics, electronic components, single-sided circuit boards, etc.

2) Coating: Wood surface bright coating, paper surface glossing, plastic floor tiles and PU leather surface glossing, optical fiber surface coating, etc.

3) Bonding: Bonding of CHIP components on circuit boards, various electronic components, glass bonding, bonding of liquid crystal sheets and terminal sealing adhesives.

4) Molding: Decorative colored plates and vessels, decorative accessories (buttons, hairpins, belt buckles, etc.)

II. Key Components

Serial Number

Project

Brand

Remarks

1

UV LED light source

Sanan

/

2

Power supply

Mingwei/Jiali

/

3

Main Electrical

Mingwei

/

4

Indicator Light/Switch

Yijia

/

Ultraviolet Curing Machine UV Curing Equipment Materials Printed Surface Curing Drying Testing Instrument

Technical Specification

Serial Number

Project

Unit

Content

1

Input power supply

V

AC220V 50Hz

2

Total device power

KW

3.5KW

3

Wavelength

nm

395nm

4

Single lamp power

KW

3000W

5

Number of light sources

Group

Group 1

6

Light source type

/

UV LED

7

Luminescent size

mm

400*100mm

8

Power adjustment

Table

Power adjustable (20-100%)

9

Control method

Wrap

Button control

10

Transmitting method

Table

Teflon mesh belt

11

Feed inlet height

mm

0 - 100mm (manual adjustment possible)

12

Guarantee period

Year

One year

13

Environmental temperature

℃

Environmental temperature: -10℃ to 40℃

Relative humidity: 25% - 80% RH

14

Note

/

Customized equipment is non-returnable and non-exchangeable.
