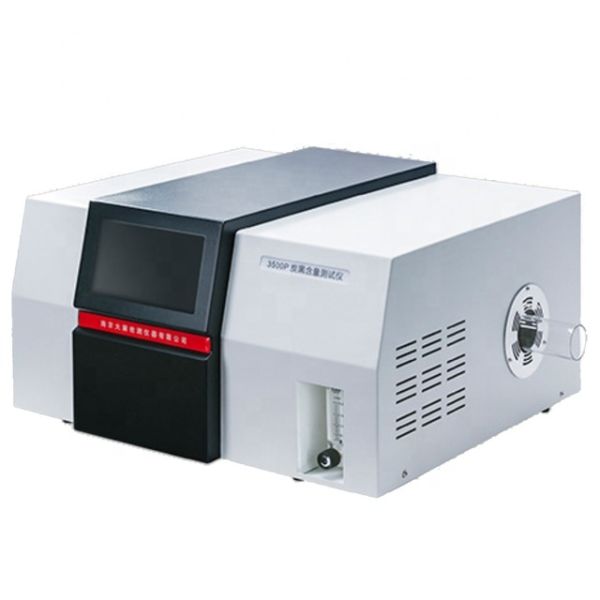

Carbon Black Content Tester Thermal Analyzer Conductive Material Testing Instrument
Carbon Black Content Tester Thermal Analyzer Conductive Material Testing Instrument
Carbon Black Content Tester Thermal Analyzer Conductive Material Testing Instrument
Carbon Black Content Tester Thermal Analyzer Conductive Material Testing Instrument
Carbon Black Content Tester Thermal Analyzer Conductive Material Testing Instrument
Carbon Black Content Tester Thermal Analyzer Conductive Material Testing Instrument
Carbon Black Content Tester Thermal Analyzer Conductive Material Testing Instrument
Carbon Black Content Tester Thermal Analyzer Conductive Material Testing Instrument
Specifications
Brand Name :
LONROY
Place of Origin :
Guangdong, China
MOQ :
1
Type :
Testing Machine
Protection Class :
IP57
Voltage :
220 V, 380 V
Display Mode :
LCD display
Furnace Size :
φ 31×350±5 mm
Heating Element :
High-temperature alloy wire
Heating Zone Length :
200 mm
Constant Temperature Zone :
150 mm
Operating Temperature :
Room temperature ~ 1050℃
Temperature Control :
Intelligent programmable control
Power Supply :
AC220V/50HZ
Sensor Sensitivity :
0.1℃
Air Path Control :
Two paths
Description
High Quality Carbon Black Content Tester/Carbon Black Content Testing Machine/Carbon Black Content Analyzer
This instrument is designed for determining carbon black content in cable and optical cable insulation, sheath materials, plastic pipes, plastic particles, and masterbatch. Using gravimetric analysis of samples decomposed at high temperature under nitrogen protection, it provides accurate measurements with easy operation and reliable performance. Carbon black content significantly affects material properties including hardness, elasticity, wear resistance, and insulation.
Compliance Standards
ISO 6964, GB/T 13021, IEC 60811-4-1, GB/T 2951.41, JTG E50 T1165, ASTM D1603-2012, CJ/T 125-2000, GB/T2951.41-2008 (not limited to these standards)
Technical Specifications
Parameter Specification
Display Mode LCD display
Furnace Size φ 31×350±5 mm
Heating Element High-temperature alloy wire
Heating Zone Length 200 mm
Constant Temperature Zone Length 150 mm
Operating Temperature Room temperature ~ 1050℃
Temperature Control Mode Intelligent programmable control
Power Supply AC220V/50HZ (customizable)
Sensor Sensitivity 0.1℃
Air Path Control Two paths
