Description

This heat flow thermal conductivity tester is primarily used to measure the thermal conductivity of STP and VIP vacuum insulation panels. It is widely used by manufacturers of heat-resistant and thermal insulation materials, relevant quality inspection departments and units, universities, research institutes, and other scientific research institutions.

Applicable Standards

GBT 10295-2008 "Determination of Steady-State Thermal Resistance and Related Properties of Thermal Insulation Materials - Heat Flow Meter Method"

GB/T39704-2020 "Determination of Effective Thermal Conductivity of Vacuum Insulation Panels"

GB/T25261-2018 "Reflective Thermal Insulation Coatings for Buildings"

ASTM C518-04 "Standard Test Method for Steady-State Heat Transfer Properties by Heat Flow Meter Method"

ASTM D5470 "Standard Test Method for Thermal Conductivity"

Product Overview

The heat flow thermal conductivity tester is designed in accordance with the national standard GB/T 10295-2008 "Determination of Steady-State Thermal Resistance and Related Properties of Thermal Insulation Materials." This equipment is manufactured in accordance with the technical requirements of GB/T39704-2020 "Determination of Effective Thermal Conductivity of Vacuum Insulation Panels," GB/T39704-2020 "Determination of Effective Thermal Conductivity of Vacuum Insulation Panels," and GB/T25261-2018 "Reflective Thermal Insulation Coatings for Buildings." This equipment is primarily used to test the thermal conductivity of STP and VIP vacuum insulation panels. It is widely applicable to manufacturers of heat-resistant and thermal insulation materials, relevant quality inspection departments and units, universities, research institutes, and other scientific research institutions.

Product Applications

This equipment is primarily used to test the thermal conductivity of STP and VIP vacuum insulation panels. It can also measure materials such as silicate insulation materials, ceramic insulation materials, polystyrene powder, extruded polystyrene (XPS), rigid polyurethane foam insulation boards, foamed cement boards, inorganic fireproof insulation mortars, ceramic insulation boards, extruded XPS boards, EPS foam boards, perlite and perlite bricks, vermiculite and vermiculite bricks, and foamed cement.

Product Features

The heat flow meter thermal conductivity tester integrates a thermostat, and all measurement and control functions are computer-controlled. A computer interface enables fully automated instrument control, data acquisition and processing, as well as thermal conductivity calculation, display, and printout. The instrument offers fast measurement times, high speed, accurate data, a high degree of automation, and low noise. The specimen is clamped securely with an electric clamping device, and the clamping pressure of the electric system can be adjusted according to actual needs.

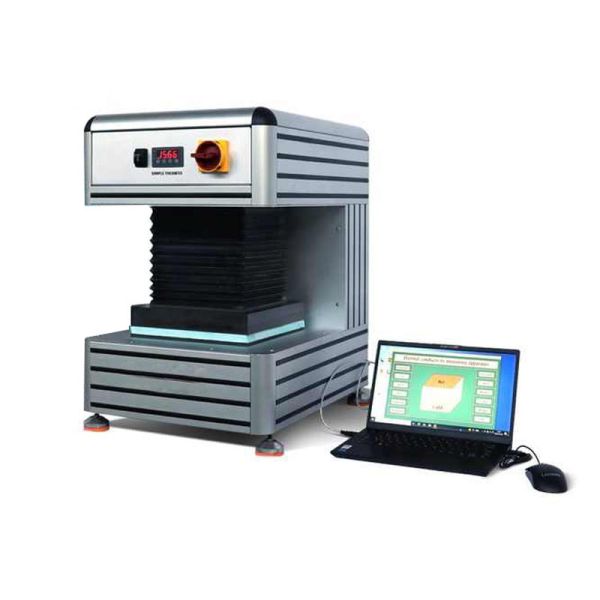

ASTM D5470 ASTM C518 Heat Flow Thermal Conductivity Tester STP and VIP Vacuum Insulation Panels Thermal Conductivity Analyzer
