Specifications
Brand Name :
lonroy
Place of Origin :
Guangdong, China
MOQ :
1
Accuracy :
0.001
Power :
500W
Protection Class :
IP55
Voltage :
220V
Dimension :
30mm or 20x20mm
Thermal conductivity range :
0.001 ~ 50W/m.k, 0.001 ~ 300W/m.k
Thermal resistance range :
0.05 ~ 0.000005 M2.K/W
Sample thickness :
0.001 ~ 50mm
Thermal pole temperature :
room temperature ~ 100ºC
Cold pole temperature :
0 ~ 99.00ºC
Pressure range :
0 ~ 1000N
Thickness accuracy :
0.1um
Test accuracy :
better than 3%
Host dimensions :
550×450×1550mm or 500×400×780mm
Host weight :
100Kg or 60Kg
Description

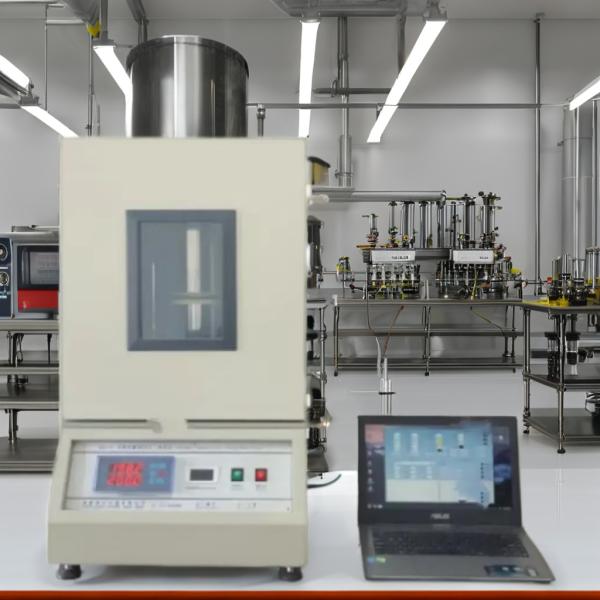

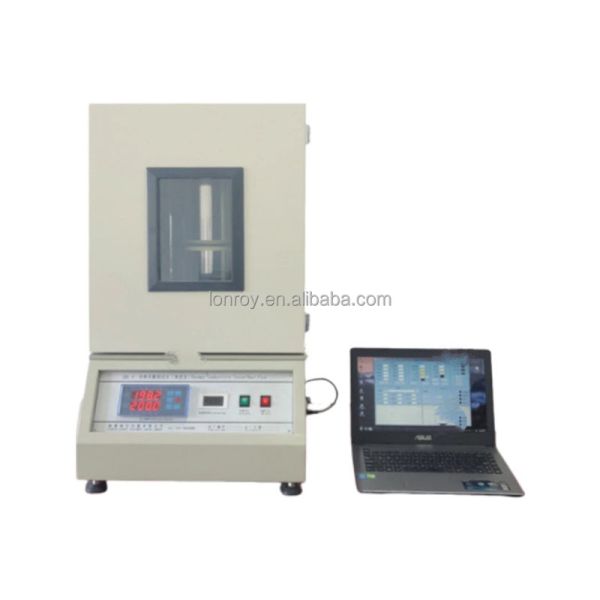

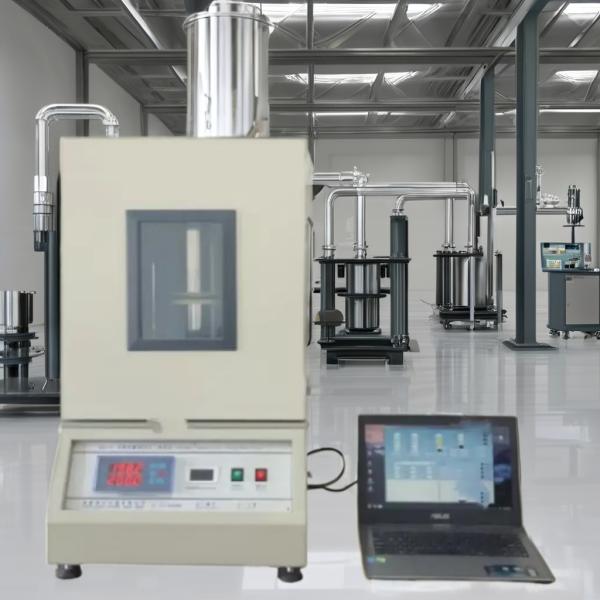

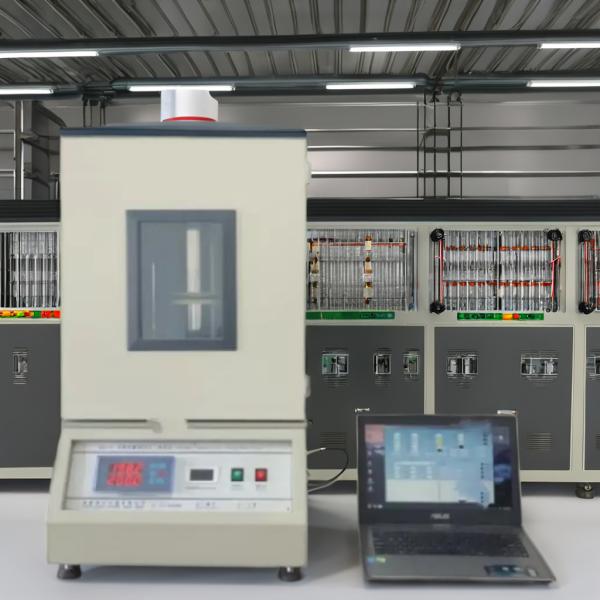

DRL-III ASTM D5470 Thermal Conductivity and Resistance Tester
Product Overview

The DRL-III thermal conductivity tester is designed for precise measurement of thermal resistance in thin thermal conductors, solid electrical insulating materials, thermal conductive silicone grease, resin, rubber, beryllium oxide porcelain, alumina porcelain, and other materials. It also measures contact thermal resistance at solid interfaces and material thermal conductivity.

Key Features
  • Compliant with ASTM D5470-2017 standard
  • Servo motor-controlled precision automatic pressure system
  • 6-point temperature gradient detection for improved accuracy
  • Thermal protection device reduces ambient temperature influence
  • Measures thermal resistance curves under different pressures
  • Automatic cold end temperature compensation
  • Available in standard and space-saving compact models
Technical Specifications
Parameter Specification
Sample Size Φ30mm or 20x20mm (standard), customizable sizes available
Thermal Conductivity Range 0.001 ~ 50W/m.k, 0.001 ~ 300W/m.k (auto-ranging)
Thermal Resistance Range 0.05 ~ 0.000005 M2.K/W
Sample Thickness 0.001 ~ 50mm (standard), typical 0.02 ~ 20mm
Temperature Control Range Room temperature ~ 100ºC (standard), up to 500ºC available
Pressure Range 0 ~ 1000N with 0.1N accuracy
Test Accuracy Better than 3%
Test Capabilities
  • Thermal resistance under different pressures
  • Material thermal conductivity
  • Contact thermal resistance
  • Aging reliability
  • Material compression performance
Typical Test Materials
  • Metal materials (stainless steel)
  • Thermal conductive silicone grease and pads
  • Thermal engineering plastics
  • Thermal tapes
  • Aluminum substrates and copper clad plates
  • Quartz glass and composite ceramics
  • Advanced materials (copper foam, graphite paper/sheets)
Standard Package
  • Main unit
  • Analysis software (Chinese/English versions)
  • HX-1005 precision low temperature constant temperature tank
  • Two standard samples
  • Accessory set (test boxes, forming dies)
Dimensions & Weight
  • Standard model: 550×450×1550mm, 100kg
  • Compact model: 500×400×780mm, 60kg
  • Temperature tank: 300×350×530mm, 35kg
Technical Support

1-year free warranty with lifetime technical support and software upgrades. Nationwide installation and mobile technical service available.
