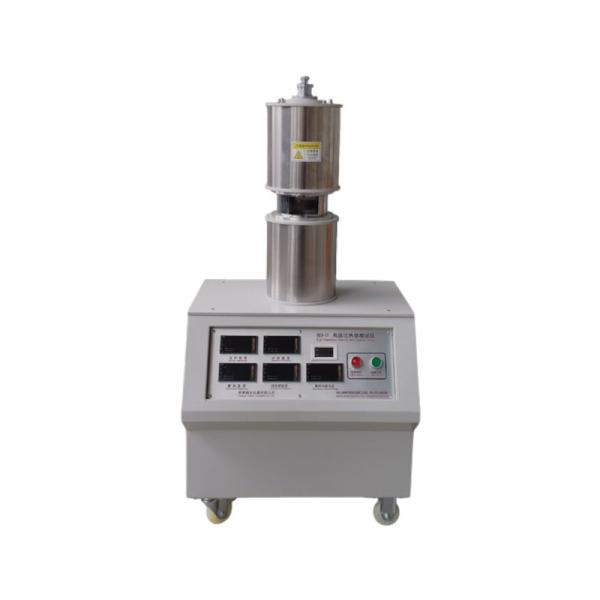

BRR-V Fully Automatic High Temperature Specific Heat Capacity Thermal Conductivity Meter Analyzer
BRR-V Fully Automatic High Temperature Specific Heat Capacity Thermal Conductivity Meter Analyzer
BRR-V Fully Automatic High Temperature Specific Heat Capacity Thermal Conductivity Meter Analyzer
BRR-V Fully Automatic High Temperature Specific Heat Capacity Thermal Conductivity Meter Analyzer
BRR-V Fully Automatic High Temperature Specific Heat Capacity Thermal Conductivity Meter Analyzer
BRR-V Fully Automatic High Temperature Specific Heat Capacity Thermal Conductivity Meter Analyzer
BRR-V Fully Automatic High Temperature Specific Heat Capacity Thermal Conductivity Meter Analyzer
BRR-V Fully Automatic High Temperature Specific Heat Capacity Thermal Conductivity Meter Analyzer
BRR-V Fully Automatic High Temperature Specific Heat Capacity Thermal Conductivity Meter Analyzer
BRR-V Fully Automatic High Temperature Specific Heat Capacity Thermal Conductivity Meter Analyzer
BRR-V Fully Automatic High Temperature Specific Heat Capacity Thermal Conductivity Meter Analyzer
BRR-V Fully Automatic High Temperature Specific Heat Capacity Thermal Conductivity Meter Analyzer
Specifications
Brand Name :
lonroy
Place of Origin :
Guangdong, China
MOQ :
1
Specific heat range :
0.05-5(kj/kg*k)
Test accuracy :
solid ≤1%±0.002, Powder ≤2%±0.002
Temperature range :
100-800 ºC
Calorimetric resolution :
0.001ºC
Experimental method :
mixed method
Power supply :
220V/50Hz,3KW
Measurement mode :
intelligent PID adjustment, computer automatic test
Heat capacity :
1000J/K (resistance wire), 1500J/K (silicon carbon tube)
Sample size :
solid (φ11-φ14) × (20-40) mm, Powder ~6 cm³
Protection class :
IP66
Voltage :
220 V
Power supply type :
Electronic
Heating method :
resistance wire (100-800ºC), silicon carbon tube (200-1350ºC)
Atmosphere control :
argon protection (for 200-1350ºC)
Data output :
test report print output
Description
BRR-V Thermal Conductivity Meter Fully Automatic High Temperature Specific Heat Tester
Product Introduction
The BRR-V automatic high temperature specific heat capacity tester is a hybrid testing instrument that utilizes computer technology to automatically measure the specific heat capacity of solid materials at various temperatures. Widely used in scientific research and teaching, this instrument heats samples to the desired temperature in a tube furnace before dropping them into a calorimeter. The computer measurement system collects temperature data throughout the process to calculate the material's specific heat capacity.
For samples prone to oxidation at high temperatures, an atmosphere system is required. The instrument complies with GJB 330A-2000 standards for specific heat capacity testing of solid materials. Computer-controlled measurement and operation minimize human error and enhance testing accuracy.
Key Features
  • Fully automatic computer-controlled testing process
  • Reduced human error for improved accuracy
  • Compatible with both solid and powder samples
  • Complies with GJB 330A-2000 testing standards
  • Optional atmosphere system for oxidation-prone samples
Technical Specifications
Parameter Specification
Specific heat capacity range 0.05-5 (kJ/kg·K)
Test accuracy Solid ≤1%±0.002
Powder ≤2%±0.002
Temperature range 100-800°C (resistance wire heating)
200-1350°C (silicon carbon tube heating)
Calorimetric resolution 0.001°C
Experimental method Mixed method
Power supply 220V/50Hz, 3KW
Measurement and control Intelligent PID adjustment, computer automatic test with data processing and report generation
Sample requirements Solid: (φ11-φ14) × (20-40) mm
Powder: about 6 cm³
Standard Configuration
  • Main unit
  • Software package
  • Communication interface and data cable
  • High-precision constant temperature sink
  • Desktop computer (as per contract)
BRR-V Thermal Conductivity Meter
