Specifications
Brand Name :
lonroy
Place of Origin :
Guangdong, China
Model Number :
DRPL-V-G
MOQ :
1
Power supply :
220V, 3KW
Experimental method :
mixed method
Specific heat capacity :
0.05-5(kj/kg*k)
Test accuracy solid :
≤1%±0.002
Test accuracy powder :
≤2%±0.002
Temperature range :
100-800 ºC
Calorimetric resolution :
0.001ºC
Measurement control mode :
intelligent PID adjustment
Heat capacity :
1000J/K
Sample size solid :
(φ11-φ14) × (20-40) mm
Sample size powder :
6 cm3
Heating method :
resistance wire heating
High temperature range :
200-1350 ºC
High temp heat capacity :
1500J/K
Protection gas :
argon
Description

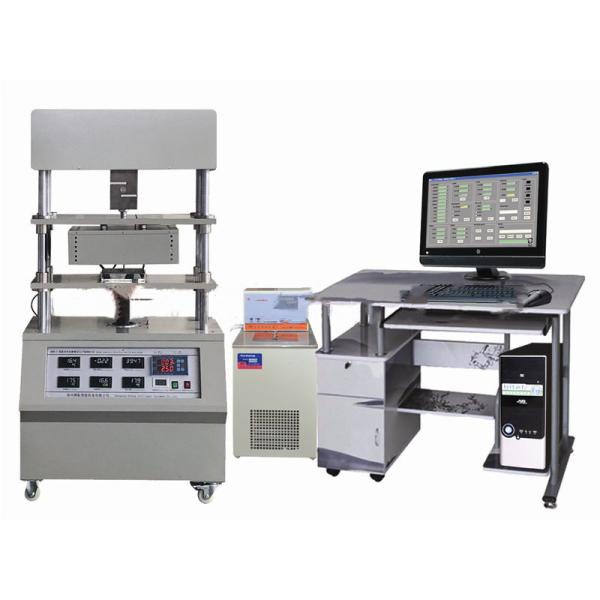

DRPL-V-G High Temperature Material Thermal Conductivity Meter, Cold Surface Temperature Comprehensive Tester ASTMC518
Product Introduction
This advanced thermal conductivity tester utilizes the internationally recognized heat flow meter method for precise detection of thermal conductivity and thermal resistance. Equipped with computer automation, it generates comprehensive test reports with high accuracy and reliability.
Key features include:
  • Stable hot surface temperature application with heat transfer measurement to cold surface
  • High precision measurement (0.1mw accuracy) especially suitable for low thermal conductivity materials
  • Modular design with multifunctional testing capabilities
  • Servo motor loading for constant pressure application during tests
  • Comprehensive thermal physical property analysis through thermal conductivity and back temperature measurement
  • Wide application across plastics, rubber, refractory materials, insulation materials, aerogel boards, and composite materials
Reference Standards
Complies with GB/T10295-2008 (heat flow meter method for insulation materials) and ASTMC518-04 (heat flow meter method for steady-state heat flux measurement).
Technical Specifications
Parameter Specification
Specific heat capacity range 0.05-5 (kj/kg*k)
Test accuracy Solid ≤1%±0.002
Powder ≤2%±0.002
Temperature range 100-800ºC (resistance wire heating)
200-1350ºC (silicon carbon tube heating)
Calorimetric resolution 0.001ºC
Experimental method Mixed method
Power supply 220V/50Hz, 3KW
Measurement and control Intelligent PID adjustment with computer automation
Sample Requirements
Solid samples: (φ11-φ14) × (20-40) mm
Powder samples: approximately 6 cm³
Standard Configuration
Includes one host unit, software package, communication interface and data cable, high-precision constant temperature sink, and desktop computer (as per contract specifications).
