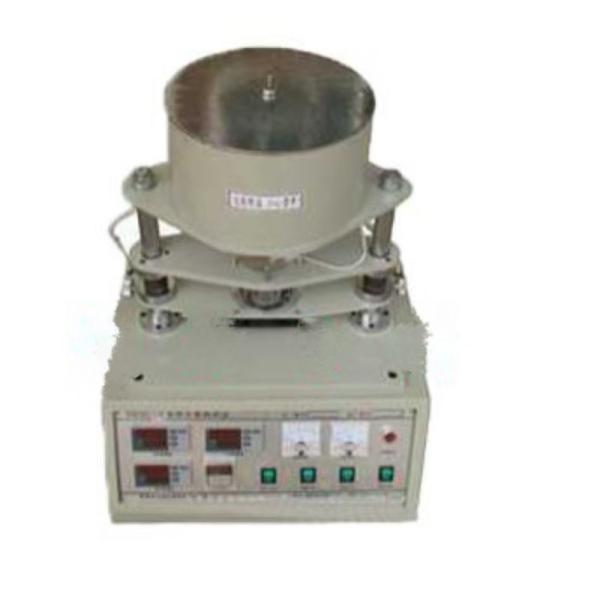

DRXL Solid Thermal Conductivity Tester Meter Testing Machine Analyzer
DRXL Solid Thermal Conductivity Tester Meter Testing Machine Analyzer
DRXL Solid Thermal Conductivity Tester Meter Testing Machine Analyzer
DRXL Solid Thermal Conductivity Tester Meter Testing Machine Analyzer
DRXL Solid Thermal Conductivity Tester Meter Testing Machine Analyzer
DRXL Solid Thermal Conductivity Tester Meter Testing Machine Analyzer
DRXL Solid Thermal Conductivity Tester Meter Testing Machine Analyzer
DRXL Solid Thermal Conductivity Tester Meter Testing Machine Analyzer
DRXL Solid Thermal Conductivity Tester Meter Testing Machine Analyzer
DRXL Solid Thermal Conductivity Tester Meter Testing Machine Analyzer
DRXL Solid Thermal Conductivity Tester Meter Testing Machine Analyzer
DRXL Solid Thermal Conductivity Tester Meter Testing Machine Analyzer
Specifications
Brand Name :
lonroy
Place of Origin :
Guangdong, China
MOQ :
1
Accuracy :
better than 10%
Protection Class :
IP57
Voltage :
220 V
Power supply :
220V, 50HZ
Test range :
0.1~300w/m*k
Heat source :
heating copper block, 36V safe voltage
Test materials :
solid, powder, glue samples
Measuring temperature range :
room temperature ~250ºC, up to 550ºC
Temperature accuracy :
1ºC
Timing range :
0~999.9s
Timing resolution :
0.1s
Thermal conductivity accuracy :
better than 10%
Sample size :
130x(1-100)mm
Heat source voltage :
36V
Power type :
Electronic
Description
Product Description

DRXL Solid Thermal Conductivity Tester Meter Testing Machine
1.Product introduction
DRXL thermal conductivity tester can measure the thermal conductivity of ceramic, rubber, glass, insulation materials, refractory materials, aluminum alloy and other metal materials, non-metallic materials, test range is wide
DRXL Solid Thermal Conductivity Tester Meter Testing Machine
2. Product Parameter
test range
 0.1~300w/m*k
power supply AC 220V, 50HZ
heat source heating copper block, using 36V safe voltage heating
Test materials solid materials of metal materials and non-metal materials, and the enclosed frame can be used to test powder, glue and other samples; 5, measuring temperature range: room temperature ~250ºC, up to 550ºC, accuracy of 1ºC:
timing part
 range 0~999.9s: resolution 0.1s
thermal conductivity
measurement accuracy
 better than 10%
sample size
 130x(1-100)mm
DRXL Solid Thermal Conductivity Tester meter testing machine
3.after-sales service
1. The manufacturer is responsible for the installation and debugging of the equipment, and trains the operators
2, from the date of acceptance, warranty for three years, lifelong maintenance. Equipment in the process of use failure, timely service, regular visits to the user
