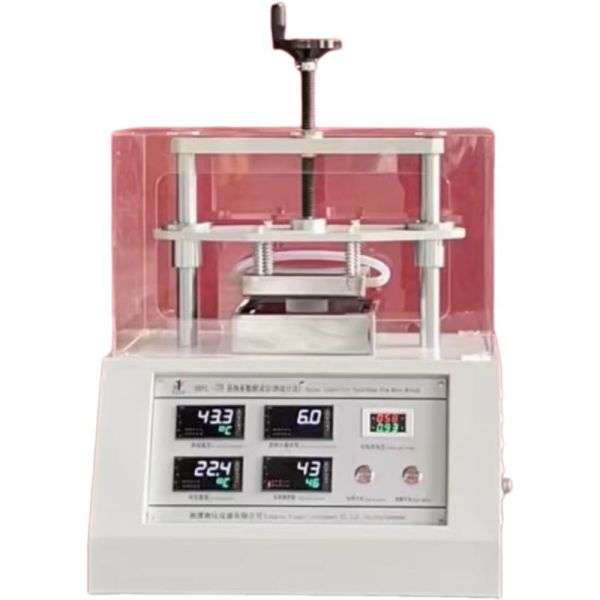

ASTM C518 DRPL-II Plate Heat Flow Meter Thermal Conductivity Tester Thermal Analyzer
ASTM C518 DRPL-II Plate Heat Flow Meter Thermal Conductivity Tester Thermal Analyzer
ASTM C518 DRPL-II Plate Heat Flow Meter Thermal Conductivity Tester Thermal Analyzer
ASTM C518 DRPL-II Plate Heat Flow Meter Thermal Conductivity Tester Thermal Analyzer
ASTM C518 DRPL-II Plate Heat Flow Meter Thermal Conductivity Tester Thermal Analyzer
ASTM C518 DRPL-II Plate Heat Flow Meter Thermal Conductivity Tester Thermal Analyzer
ASTM C518 DRPL-II Plate Heat Flow Meter Thermal Conductivity Tester Thermal Analyzer
ASTM C518 DRPL-II Plate Heat Flow Meter Thermal Conductivity Tester Thermal Analyzer
ASTM C518 DRPL-II Plate Heat Flow Meter Thermal Conductivity Tester Thermal Analyzer
ASTM C518 DRPL-II Plate Heat Flow Meter Thermal Conductivity Tester Thermal Analyzer
ASTM C518 DRPL-II Plate Heat Flow Meter Thermal Conductivity Tester Thermal Analyzer
ASTM C518 DRPL-II Plate Heat Flow Meter Thermal Conductivity Tester Thermal Analyzer
Specifications
Brand Name :
lonroy
Place of Origin :
Guangdong, China
MOQ :
1
Power :
1KW
Voltage :
220V
Measurement time :
15-20min
Plate spacing :
0 ~ 160mm
Thermal conductivity range :
0.00001 ~ 10W/m.k, 0.001 ~ 300W/m.k
Measurement accuracy :
3% (domestic), 1% (imported)
Sample size :
50×50 ~ 300×300mm
Hot surface temperature :
room temperature ~ 199.9ºC
Cold surface temperature :
0 ~ 99.9ºC
Temperature control accuracy :
0.1ºC
Heat transfer area :
150×150mm
Heat flow parameter :
23.26w/m2.mV
Protection class :
IP56
Material compatibility :
solids, powders
Control method :
bidirectional SCR
Description
ASTM C518 DRPL-II Plate Heat Flow Meter High Quality Thermal Conductivity Tester
Product Description

The DRPL-II thermal conductivity tester (plate heat flow meter method) uses the internationally recognized heat flow meter method to detect thermal conductivity and thermal resistance, with computer-controlled automatic detection and report generation.

The instrument applies stable hot surface temperature to one side of the sample, transferring heat to the cold surface (room temperature) through the sample, then measures the heat transfer to calculate thermal conductivity and resistance.

Key Features
  • Simple, quick and repeatable testing method
  • Ideal for research and development of heat transfer in metal materials
  • Suitable for testing plastics, rubber, graphite, insulation materials, aerogel plates, vacuum glass, and more
  • Widely used in universities, research institutes, quality inspection, and industrial applications
  • Complies with GB/T10295-2008 and ASTM C518-04 standards
Technical Specifications
Parameter Specification
Thermal Conductivity Range 0.00001 ~ 10W/m.k, 0.001 ~ 300W/m.k
Measurement Accuracy 3% (domestic heat flow meter); 1% (imported heat flow meter)
Sample Size 50×50 ~ 300×300 (mm), round or square. Custom sizes available
Measurement Time 15-20 minutes
Hot Surface Temperature Room temperature ~ 199.9°C (standard), up to 299.9°C available
Cold Surface Temperature 0 ~ 99.9°C (standard), -10 ~ 99.9°C available
Plate Spacing 0 ~ 160mm adjustable
Heat Transfer Area 150×150mm
Power Supply 220V, 1KW
Additional Features
  • Tests both solid and powder materials
  • Computer-controlled automatic testing with data storage and printing
  • Uses WPY heat flow meter with heat flow parameter 23.26w/m².mV
ASTM C518 DRPL-II Plate Heat Flow Meter
