ASTM D1422 1423 BS 2085 Electric Yarn Twist Meter DIN 53832 ISO 2061 Motorized Yarn Twist Tester
ASTM D1422 1423 BS 2085 Electric Yarn Twist Meter DIN 53832 ISO 2061 Motorized Yarn Twist Tester
Specifications
Brand Name :
Lonroy
Model Number :
LR-A171
Certification :
ISO ASTM CE
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
wooden package
Product name :
Electric Yarn Twist Meter
Customization :
Available
Warranty :
1 Year
External dimensions :
1070 × 300 × 290mm (L × W × H)
Weight :
16kg (36lb)
Power supply :
100 - 240V 50Hz/60Hz
Description

ASTM D1422 1423 BS 2085 Electric Yarn Twist Meter DIN 53832 ISO 2061 Motorized Yarn Twist Tester

Introduction

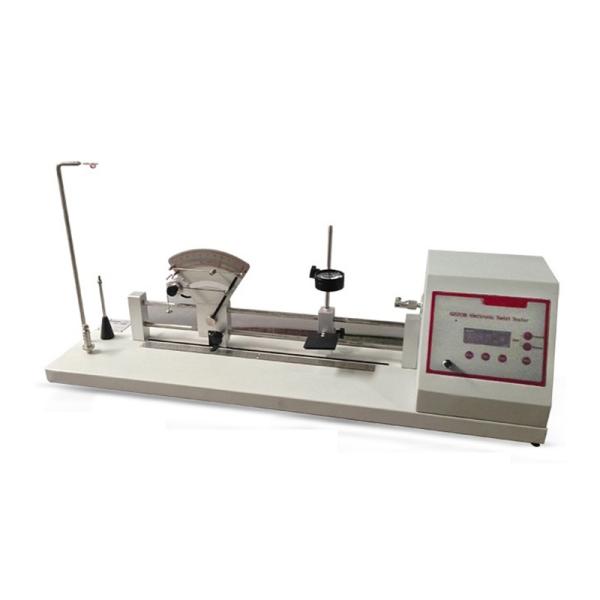

This instrument is composed of a control box (with digital display), a tension mechanism, a threading frame, etc. The rotation direction, speed, start and stop of the decoring clamp of the main unit are controlled by the control box. The number of twists tested is displayed as the twist count through photoelectric conversion by the control display box. The spacing of the instrument can be adjusted. During the test, the tension is applied by the vertical pointer-type lever, and the zero position stops automatically using a photoelectric sensor.

Conforming to standards

ASTM D1422/1423, BS 2085, DIN 53832, ISO 2061, IWTO 25-70, GB/T 2543.1-2001/2543.2-2001

Scope of Application

Electric yarn twist meter, capable of measuring the twist of single yarn or stranded yarn, used for determining the twist of cotton, wool, linen, synthetic fibers and other yarns, as well as the uneven twist rate of the yarn and the twist of the plied yarn. It is a fan-arm twist meter, suitable for traditional or non-twist/re-twist testing methods. The test length can reach 50cm/20 inches (for S&Z type twist).


Technical specifications

Testing methods

Direct counting method, one-time re-twisting and twisting method, two-time re-twisting and twisting method, three-time re-twisting and twisting method

Slack unwinding speed

0 - 1600 rpm, adjustable continuously

Test sample length

0 - 500mm, adjustable

Extension range

0 - 100mm (0 - 4 inches)

Twist count indication

1 - 9999

Clamping head rotation direction

Clockwise, counterclockwise rotation

Transmission method

Separate motor belt drive

Accuracy

1 digit (counter), ±0.5mm (zero position)

External dimensions

1070 × 300 × 290mm (L × W × H)

Weight

16kg (36lb)

Power supply

100 - 240V 50Hz/60Hz
