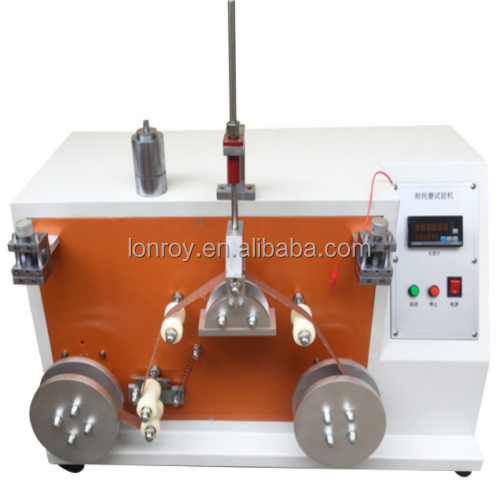

DIN 72551 ISO 6722 Automobile Wire Abrasive Belt Drag Grinding Testing Machine
DIN 72551 ISO 6722 Automobile Wire Abrasive Belt Drag Grinding Testing Machine
DIN 72551 ISO 6722 Automobile Wire Abrasive Belt Drag Grinding Testing Machine
DIN 72551 ISO 6722 Automobile Wire Abrasive Belt Drag Grinding Testing Machine
DIN 72551 ISO 6722 Automobile Wire Abrasive Belt Drag Grinding Testing Machine
DIN 72551 ISO 6722 Automobile Wire Abrasive Belt Drag Grinding Testing Machine
Specifications
Place of Origin :
Guangdong, China
Brand Name :
LONROY
MOQ :
1
Voltage :
220V
Belt grinding speed :
1500mm/min
Test voltage :
24V
Load options :
20g / 50g / 100g / 200g (2 PCS) / 500g / 900g / 1000g
Power :
200VA / 220V / 50Hz
Wire diameter :
Less than 15mm
Sanding belt length :
0 - 999999 mm
Belt support corners :
3.5mm
Load support weight :
65g (0.63N ± 0.05N)
Belt-sample angle :
29°
Conductive strip gap :
75mm or 150mm
Conductive strip width :
10mm
Abrasive belt grits :
80#, 150#, 180#, 400#
Protection class :
IP56
Power supply :
200VA / 220V / 50Hz
Description

DIN 72551 ISO 6722 Automobile Wire Abrasive Belt Drag Grinding Testing Machine Wire Wear Resistance Tester

Product Description

Introduction

Automobile wire abrasive belt dragging and grinding testing machine is suitable for testing the wear resistance of the insulation sheath of automotive wires under certain conditions.

Applicable Standards

QC/T730-2005, SAE-J 1128-2005, DIN 72551, ISO6722, JASO D 618 and other standards

DIN 72551 ISO 6722 Automobile Wire Abrasive Belt Drag Grinding Testing Machine Wire Wear Resistance Tester

Technical Specification

Applicable wire diameter

Less than 15mm

Sanding belt length measurement range

0 - 999999 mm

Belt grinding speed

1500mm/min

Rounded corners of the sanding belt support

3.5mm

Test voltage

24V

Load

20g / 50g / 100g / 200g (2 PCS) / 500g / 900g / 1000g

Weight of the load support

65g (0.63N ± 0.05N)

Angle between abrasive belt and sample

29°

Gap between conductive strips

75mm or 150mm

Width of the conductive strip

10mm

Power

200VA / 220V / 50Hz

Available abrasive belt grits

80#, 150#, 180# and 400# (for selection)

DIN 72551 ISO 6722 Automobile Wire Abrasive Belt Drag Grinding Testing MachineDIN 72551 ISO 6722 Automobile Wire Abrasive Belt Drag Grinding Testing MachineDIN 72551 ISO 6722 Automobile Wire Abrasive Belt Drag Grinding Testing MachineDIN 72551 ISO 6722 Automobile Wire Abrasive Belt Drag Grinding Testing Machine
