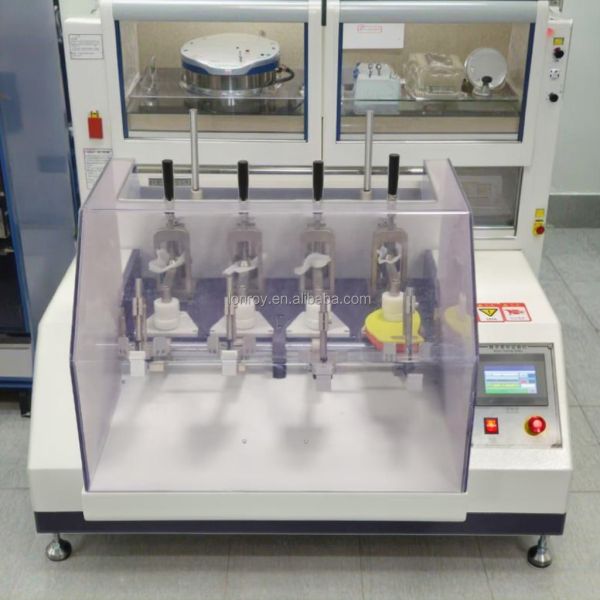

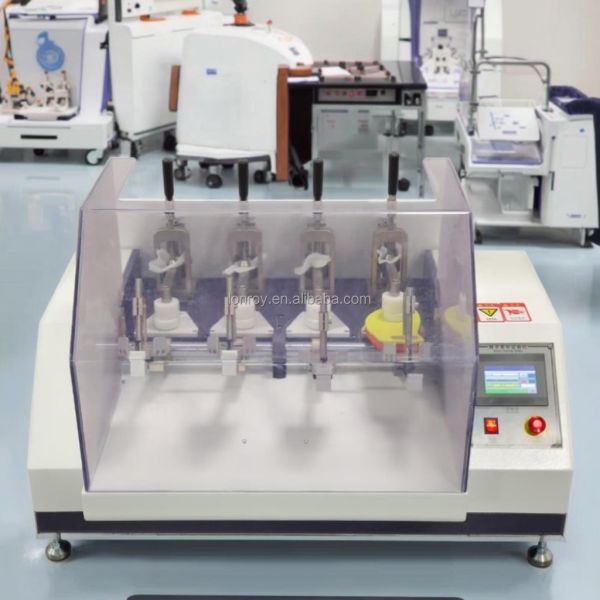

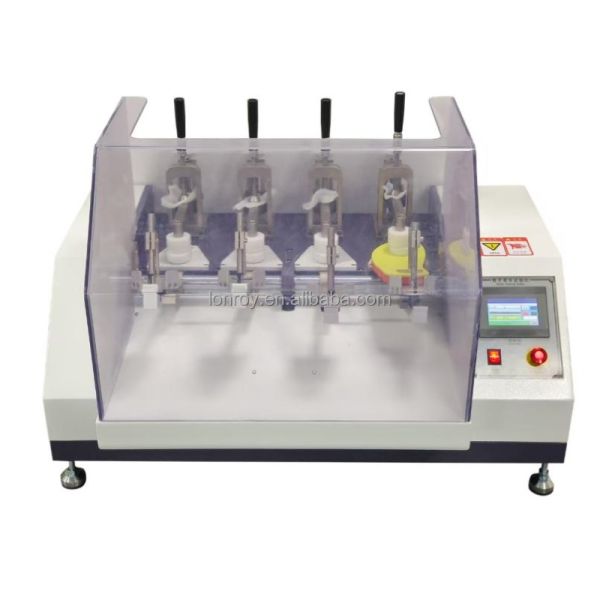

SATRA TM92 Shoe Flexure Resistance Tester Heel-Actuated Shoe Flexing Test Equipment Finished Shoe Flexure Testing Machine
SATRA TM92 Shoe Flexure Resistance Tester Heel-Actuated Shoe Flexing Test Equipment Finished Shoe Flexure Testing Machine
SATRA TM92 Shoe Flexure Resistance Tester Heel-Actuated Shoe Flexing Test Equipment Finished Shoe Flexure Testing Machine
SATRA TM92 Shoe Flexure Resistance Tester Heel-Actuated Shoe Flexing Test Equipment Finished Shoe Flexure Testing Machine
SATRA TM92 Shoe Flexure Resistance Tester Heel-Actuated Shoe Flexing Test Equipment Finished Shoe Flexure Testing Machine
SATRA TM92 Shoe Flexure Resistance Tester Heel-Actuated Shoe Flexing Test Equipment Finished Shoe Flexure Testing Machine
SATRA TM92 Shoe Flexure Resistance Tester Heel-Actuated Shoe Flexing Test Equipment Finished Shoe Flexure Testing Machine
SATRA TM92 Shoe Flexure Resistance Tester Heel-Actuated Shoe Flexing Test Equipment Finished Shoe Flexure Testing Machine
Specifications
Type :
Testing Machine
Accuracy :
---
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
400W
Protection Class :
Ip56
Voltage :
220 V
warranty :
1 Year
Working Power Supply :
AC 220V
Operating Power :
400W
Volume :
(101x72x73) cm
Weight :
Approximately 220kg
MOQ :
1
Description

SATRA TM92 Shoe Flexure Resistance Tester Heel-Actuated Shoe Flexing Test Equipment Finished Shoe Flexure Testing Machine

Product Description

Instrument Introduction

The finished shoes are installed on the finished shoe flexure testing machine. The testing machine drives the finished shoe to flex at a flexure angle that matches the shoe shape and at a fixed rate. The flexure is repeated until the predetermined time is reached or the specified number of flexures is completed. Then, the damage condition of the flexure part of the tested finished shoes is observed to evaluate the flexure resistance performance of the tested finished shoes.

Reference Standards

Compliant with: SATRA-TM92 and other standards.

Accessories

1. 1 set of pressure pads, 1 Allen wrench, 1 power cord.

2. 1 user manual, 1 warranty card.

SATRA TM92 Shoe Flexure Resistance Tester Heel-Actuated Shoe Flexing Test Equipment Finished Shoe Flexure Testing Machine

Technical Specification

Simultaneous Testing Capacity

Can test 4 finished shoes simultaneously

Curvature Angle

(5 to 80) degrees, Adjustable

Torsion Resistance Rate

(5 to 150) r/min, Adjustable (digital display)

Allowable Sample Length

150 to 400mm

Volume

(101x72x73) cm

Motor Type

Variable frequency motor

Operating Power

400W

Equipment Weight

Approximately 220kg

Power Supply

AC 220V

SATRA TM92 Shoe Flexure Resistance Tester Heel-Actuated Shoe Flexing Test Equipment Finished Shoe Flexure Testing MachineSATRA TM92 Shoe Flexure Resistance Tester Heel-Actuated Shoe Flexing Test Equipment Finished Shoe Flexure Testing MachineSATRA TM92 Shoe Flexure Resistance Tester Heel-Actuated Shoe Flexing Test Equipment Finished Shoe Flexure Testing MachineSATRA TM92 Shoe Flexure Resistance Tester Heel-Actuated Shoe Flexing Test Equipment Finished Shoe Flexure Testing Machine
