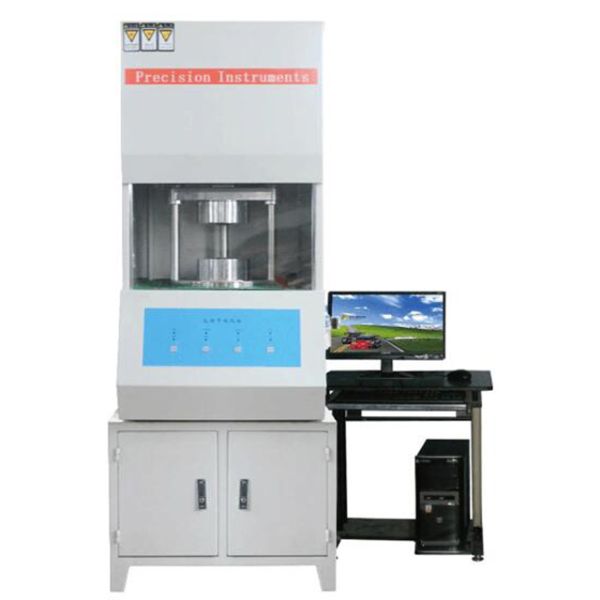

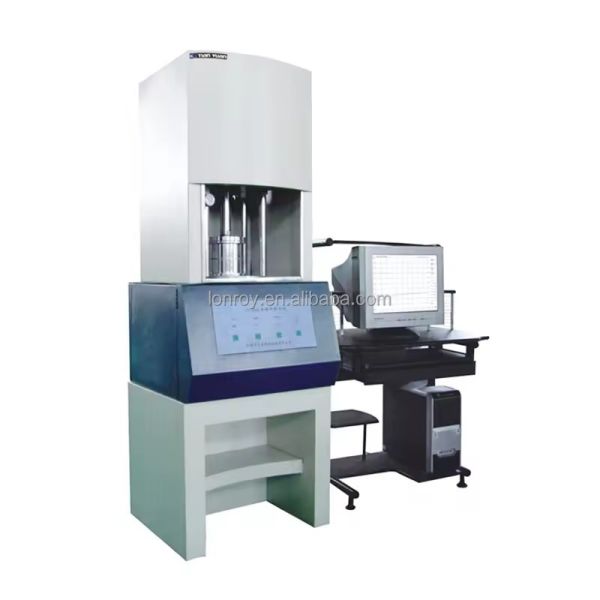

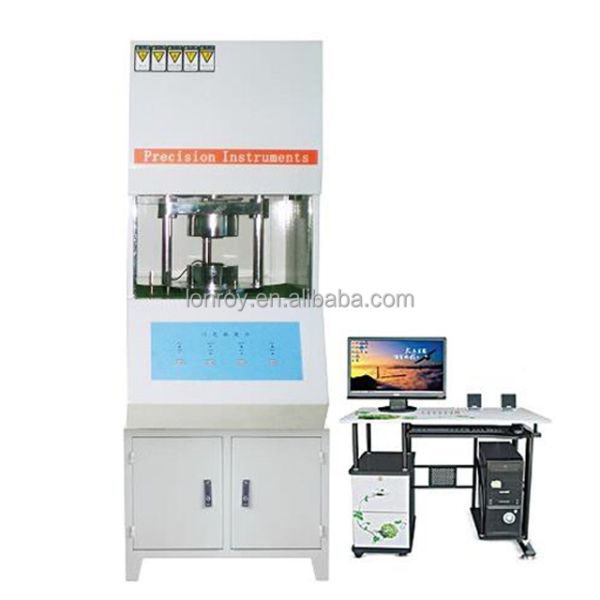

ISO289 ISO667 Mooney Viscosity Testing Machine Rubber Mooney Viscometer
ISO289 ISO667 Mooney Viscosity Testing Machine Rubber Mooney Viscometer
ISO289 ISO667 Mooney Viscosity Testing Machine Rubber Mooney Viscometer
ISO289 ISO667 Mooney Viscosity Testing Machine Rubber Mooney Viscometer
ISO289 ISO667 Mooney Viscosity Testing Machine Rubber Mooney Viscometer
ISO289 ISO667 Mooney Viscosity Testing Machine Rubber Mooney Viscometer
ISO289 ISO667 Mooney Viscosity Testing Machine Rubber Mooney Viscometer
ISO289 ISO667 Mooney Viscosity Testing Machine Rubber Mooney Viscometer
ISO289 ISO667 Mooney Viscosity Testing Machine Rubber Mooney Viscometer
ISO289 ISO667 Mooney Viscosity Testing Machine Rubber Mooney Viscometer
ISO289 ISO667 Mooney Viscosity Testing Machine Rubber Mooney Viscometer
ISO289 ISO667 Mooney Viscosity Testing Machine Rubber Mooney Viscometer
Specifications
Model Number :
LR-A019
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Product name :
Rubber Mooney Viscometer
Standard :
ISO289 ISO667
Model :
LR-A019
Customized support :
OEM, ODM, OBM
Power :
Electronic
Warranty :
1year
MOQ :
1
Description

ISO289 ISO667 Mooney viscosity testing machine Rubber Mooney Viscometer

Character:

Mooney Viscometer is used for measuring viscosity and relaxation of base rubber, raw rubber stock or rubber mass prevulcanization properties, it is also used for measuring viscosity in Mooney value for compounded or uncompounded unvulcanized natural, synthetic or regenerated rubber.

This instrument has excellent performances including automatic calibration, higher stability. It can perform the following tests: viscosity, scorch and stress relaxation.

Test standard:

Accord with GB/T1232"Rubber unvulcanized -Determination of mooney viscosity'',GB/T 1233 ''Rubber,unvulcanized-Determination of prevulcanization characteristics-Shearing disk method'',ISO289,ISO667ect.

ISO289 ISO667 Mooney viscosity testing machine Rubber Mooney Viscometer

Specification:

Range of temperature control

From room temperature to 200°C

Temperature fluctuation in die

≤±0.1°C

Temperature display resolution

0.1°C

Rate of temperature increase

25°C/min

Measurement range of torque

0-200 MV

Torque resolution

0.01MV

Frequency of rotor

2±0.02r/min

Temperature PID Control

+/- 0.1°C

Upper & Lower

Separate plate temperature control

Power supply

220 V ,1 Phase, 50 Hz

ISO289 ISO667 Mooney viscosity testing machine Rubber Mooney Viscometer

Features:

1. Easy to use the instrument.

It have automatic door and all of the electric components are CE corresponding.

2. Temperature can be increased up to 185 within 7.5min, and recovery time when beginning, and recovery time when beginning test will be less 2min. And temperature fluctuation will be within 0.1.

3. All instruments adopted the way of PID to control temperature. The smallest size and weight in all of the same type instrument in the market;

4. The die was designed to international standard ISO.

5. With lower noise when working, ≤55dB.

6. It is following ISO 289 ,ASTM D 1646, JIS K 6300 .

7. Can variable Temperature unit “C, “ F Degree.

8.Use window XP program connect to machine & and can setting Mooney or scorch time and show Dynamically Mooney value or scorch time on the graph.

ISO289 ISO667 Mooney Viscosity Testing Machine Rubber Mooney ViscometerISO289 ISO667 Mooney Viscosity Testing Machine Rubber Mooney ViscometerISO289 ISO667 Mooney Viscosity Testing Machine Rubber Mooney Viscometer
