Specifications
Type :
Testing Machine
Accuracy :
---
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Laboratory Testing
customized support :
OEM, ODM, OBM
power :
---
Protection Class :
IP57
Voltage :
220 V
warranty :
1year
model :
LR-A012
Design Standards :
DIN-53516,ISO-4649,GB/T9867
Load :
2.5N,5N,10N
Specimen size :
diameter 16mm, height 6-16 mm
Roller rotation speed :
40rpm
Speed :
19.2m/minute
Weight :
40kg
MOQ :
1
Description

DIN 53516 Shoes Wear Test Machine Plastic Wear Test Equipment Lab Rubber Leather abrasion Tester

Application

DIN Rubber Wear Abrasion Tester is used to test the friction of surface by a particular piece of abrasive paper, After wear for a certain time, and then assess the condition of material surface, weight, volume and thickness, from this standard to assess the abrasive nature of materials, as such elastic material, rubber, tires, convey belt, transmit belt, sole, synthetic leather, leather and others

Principle

Under a predetermined contact pressure and a given area ,the specimen with sandpaper angled to measureabrasion resistance of the specimen subjected to rubbing on a certain level of sandpaper, sandpaper affixed to the surface of the drum, samples pressed on a drum with sandpaper, and the specimen along the roller to the lateral movement, abrasion resistance is produced at one end of the cylindrical specimen, tests the value of the mass loss of the specimen, by the density of the specimen to calculate the amount of volume abrasion.

DIN ISO 4649:2006-11 (E). Rubber, vulcanized or thermoplastic - Determination of abrasion resistance using a rotating cylindrical drum device.

ASTM D5963 - 04(2010)e1 Standard Test Method for Rubber Property—Abrasion Resistance (Rotary Drum Abrader).

DIN 53516 Shoes Wear Test Machine Plastic Wear Test Equipment Lab Rubber Leather abrasion Tester

Specifications

Design Standards

DIN-53516,ISO-4649,GB/T9867

Specimen size

diameter 16mm, height 6-16 mm

Load

2.5N,5N,10N

Rotating wheel

diameter 150mm, length 460mm, rotating speed 40rpm

Roller rotation speed

40rpm

Remove range

4.2mm/R.P.M.

Speed

19.2m/minute

Accessories

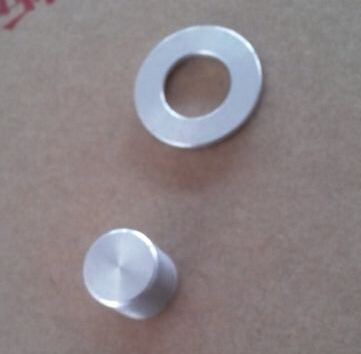

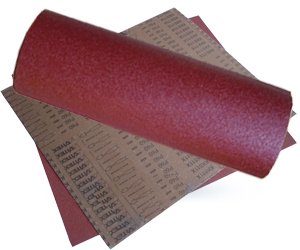

Sand paper,standard glue,sample cutter.

Weight

40kg

Dimention

85×32×40cm

Power

1Ø, AC 220V, 50 ~60Hz 3A

DIN 53516 Shoes Wear Test Machine Plastic Wear Test Equipment Lab Rubber Leather abrasion Tester

Accessories

DIN 53516 Shoes Wear Test Machine Plastic Wear Test Equipment Lab Rubber DIN Abrasion TesterDIN 53516 Shoes Wear Test Machine Plastic Wear Test Equipment Lab Rubber DIN Abrasion TesterDIN 53516 Shoes Wear Test Machine Plastic Wear Test Equipment Lab Rubber DIN Abrasion Tester

DIN 53516 Shoes Wear Test Machine Plastic Wear Test Equipment Lab Rubber DIN Abrasion TesterDIN 53516 Shoes Wear Test Machine Plastic Wear Test Equipment Lab Rubber DIN Abrasion TesterDIN 53516 Shoes Wear Test Machine Plastic Wear Test Equipment Lab Rubber DIN Abrasion TesterDIN 53516 Shoes Wear Test Machine Plastic Wear Test Equipment Lab Rubber DIN Abrasion Tester
