Rotational Vulcanizer Machine Price ASTM D5289 ISO 6502 No Rotor Rubber Rheometer
Rotational Vulcanizer Machine Price ASTM D5289 ISO 6502 No Rotor Rubber Rheometer
Rotational Vulcanizer Machine Price ASTM D5289 ISO 6502 No Rotor Rubber Rheometer
Rotational Vulcanizer Machine Price ASTM D5289 ISO 6502 No Rotor Rubber Rheometer
Rotational Vulcanizer Machine Price ASTM D5289 ISO 6502 No Rotor Rubber Rheometer
Rotational Vulcanizer Machine Price ASTM D5289 ISO 6502 No Rotor Rubber Rheometer
Rotational Vulcanizer Machine Price ASTM D5289 ISO 6502 No Rotor Rubber Rheometer
Rotational Vulcanizer Machine Price ASTM D5289 ISO 6502 No Rotor Rubber Rheometer
Rotational Vulcanizer Machine Price ASTM D5289 ISO 6502 No Rotor Rubber Rheometer
Rotational Vulcanizer Machine Price ASTM D5289 ISO 6502 No Rotor Rubber Rheometer
Specifications
Type :
No Rotor Rubber Rheometer
Brand Name :
LONROY
Place of Origin :
Guangdong, China
customized support :
OEM, ODM, OBM
power :
50/60, Electronic
Voltage :
220 V, 110 V
warranty :
1year
Test Standard :
GB/T 16584,ASTM D5289,ISO 6502
Calculated parameters :
ts1,ts2,t10,t30,t50,t70,t90,Vc1,Vc2
MOQ :
1
Description

Rotational Vulcanizer Machine Price ASTM D5289 ISO 6502 No Rotor Rubber Rheometer

Summary of the equipment:

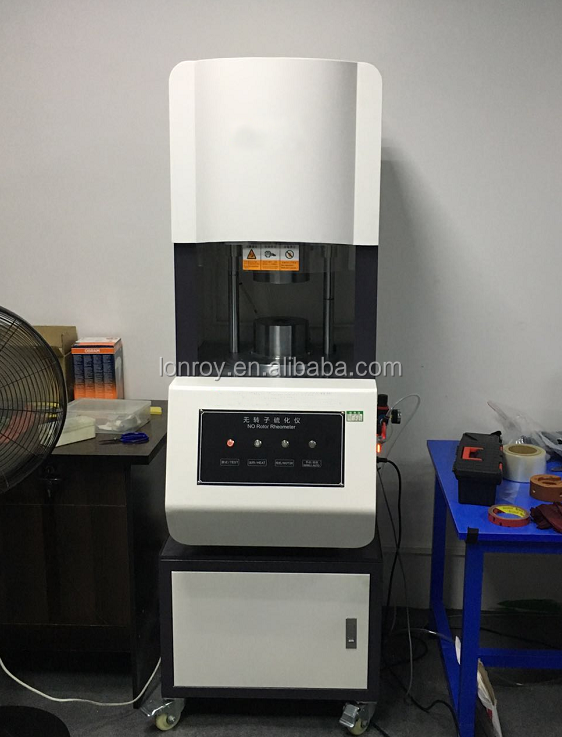

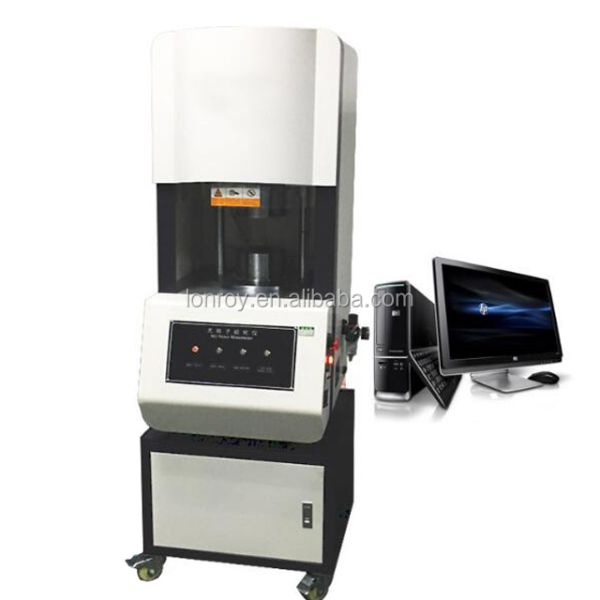

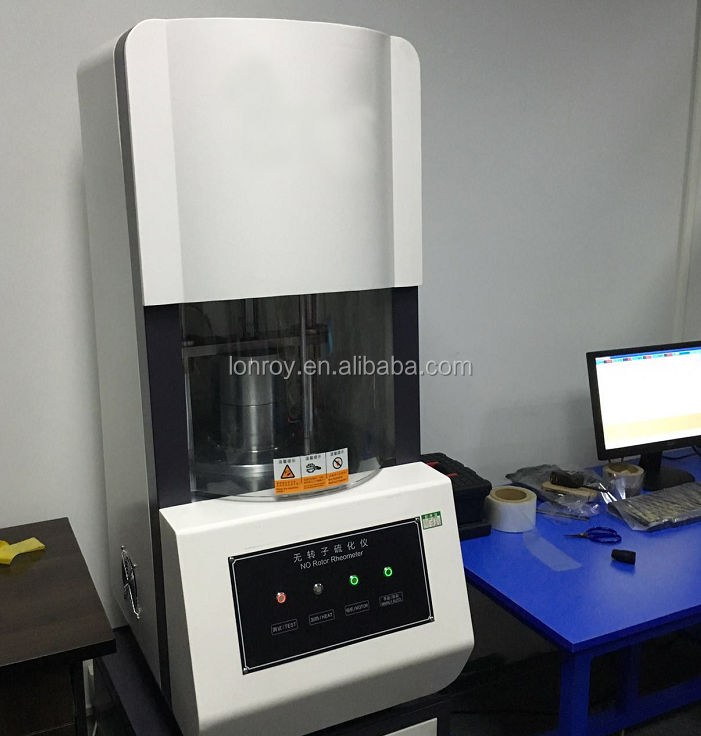

rubber rheometer/rotational rheometer/rheometer machine is used to control the quality of rubber, rubber processing industry rapidly test and rubber basic research, the most widely used instrument for rubber optimization combination formula provides accurate data, can be precisely measured scorch time, positive rheometer time, sulfide, index and parameters such as maximum and minimum torque.

Rotational Vulcanizer Machine Price ASTM D5289 ISO 6502 No Rotor Rubber Rheometer

The main features

1,The non-rotor rheometer adopts the latest version of the latest domestic software, which has the characteristics of fast heating (within 3 minutes) and high temperature control..

2,The non - rotor rheometer adopts alpha - sealed cavity structure and is in the international leading position.

3,The non - rotor vulcanizer adopts advanced alpha force sensor technology.:(Sensor accuracy 0.001N.m)

4,No rotor rheometer using advanced alpha type sealed cavity structure, by importing seal rotating cavity and fixed sealed cavity, and closed type cavity and the general structure of the open cavity is not the same, its precision and requirements and advanced nature is not matching.Airtight mold cavity repeatability completely consistent, in the international leading position.

Rotational Vulcanizer Machine Price ASTM D5289 ISO 6502 No Rotor Rubber Rheometer

Technical specification:

Model

LR-A018

Temperature control range

RT—200℃

Temperature fluctuation range

±0.15℃

Torque resolution

1/500000

Torque accuracy

0.3%

Torque Unit

N.m,N.cm,N.inch,kN.m,kN.cm,kN.inch,kg.m,kg.cm,kg.inch,lp.m,lp.cm,lp.inch,g.m,g.cm,g.inch

Temperature display resolution.

0.01℃

Temperature recovery time after mold closing.

< 1.5min

Temperature unit

C(degree centigrade ),F(Fahrenheit degree ),K(degree Kelvin)

Sampling rate

200times/S

Language

English,Chinese,Chinese traditional

Test standard

GB/T 16584,ASTM D5289,ISO 6502

Calculated parameters

ts1,ts2,t10,t30,t50,t70,t90,Vc1,Vc2

Software interface

USB2.0

Print the content

Date,Time,Temperature,vulcanization curve, Temperature curve ,ML,MH,ts1,ts2,t10,t50,t90,Vc1,Vc2

Rotational Vulcanizer Machine Price ASTM D5289 ISO 6502 No Rotor Rubber RheometerRotational Vulcanizer Machine Price ASTM D5289 ISO 6502 No Rotor Rubber RheometerRotational Vulcanizer Machine Price ASTM D5289 ISO 6502 No Rotor Rubber Rheometer

Rotational Vulcanizer Machine Price ASTM D5289 ISO 6502 No Rotor Rubber Rheometer
