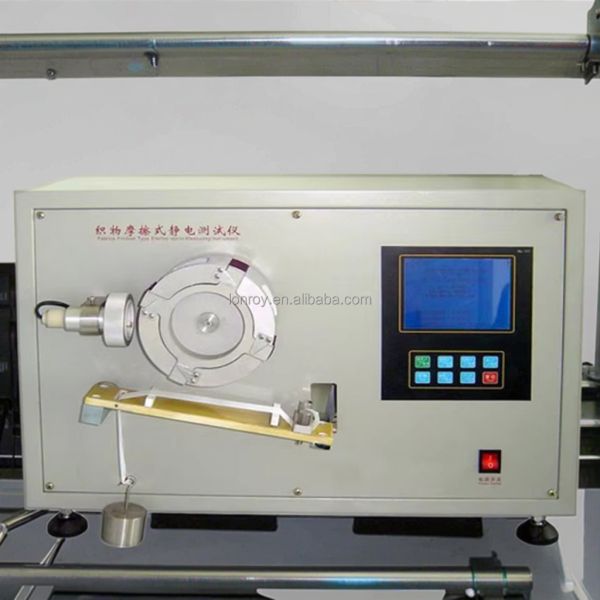

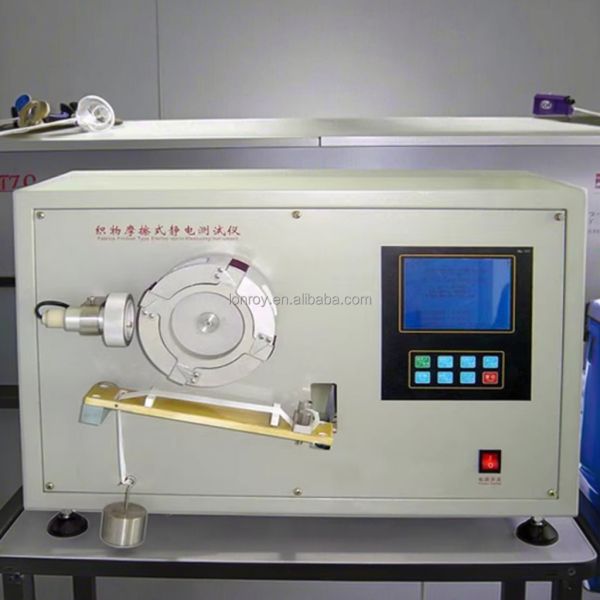

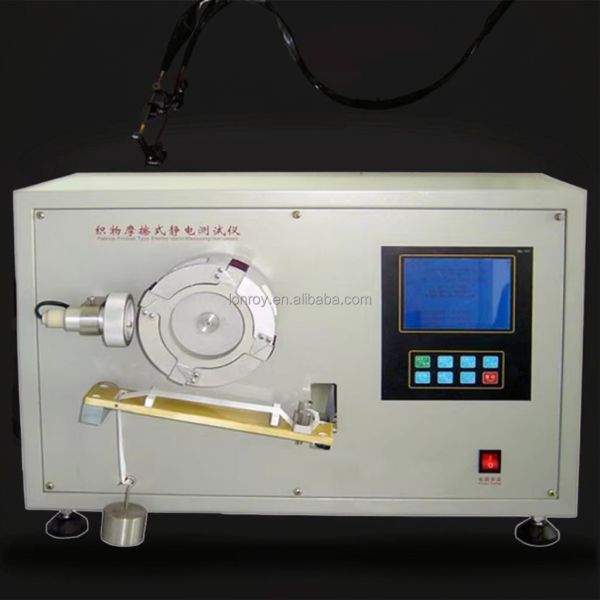

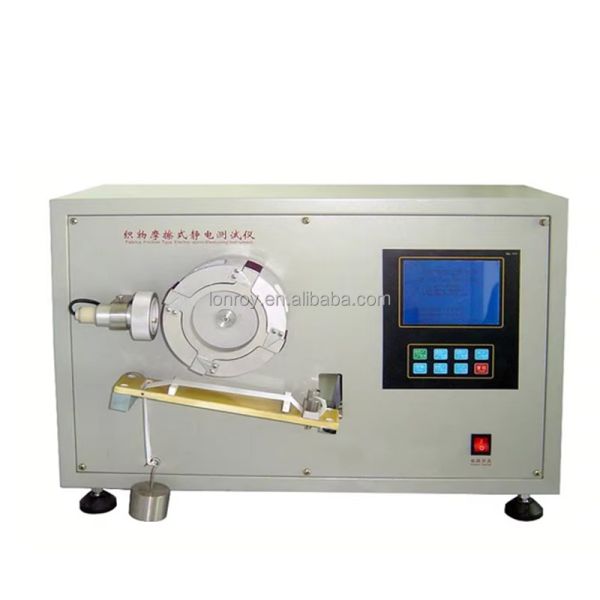

FZ/T 64082 JIS L1094 Yarns Friction Static Tester Fabrics Textiles Friction Static Electricity Testing Instrument
FZ/T 64082 JIS L1094 Yarns Friction Static Tester Fabrics Textiles Friction Static Electricity Testing Instrument
FZ/T 64082 JIS L1094 Yarns Friction Static Tester Fabrics Textiles Friction Static Electricity Testing Instrument
FZ/T 64082 JIS L1094 Yarns Friction Static Tester Fabrics Textiles Friction Static Electricity Testing Instrument
FZ/T 64082 JIS L1094 Yarns Friction Static Tester Fabrics Textiles Friction Static Electricity Testing Instrument
FZ/T 64082 JIS L1094 Yarns Friction Static Tester Fabrics Textiles Friction Static Electricity Testing Instrument
FZ/T 64082 JIS L1094 Yarns Friction Static Tester Fabrics Textiles Friction Static Electricity Testing Instrument
FZ/T 64082 JIS L1094 Yarns Friction Static Tester Fabrics Textiles Friction Static Electricity Testing Instrument
FZ/T 64082 JIS L1094 Yarns Friction Static Tester Fabrics Textiles Friction Static Electricity Testing Instrument
FZ/T 64082 JIS L1094 Yarns Friction Static Tester Fabrics Textiles Friction Static Electricity Testing Instrument
FZ/T 64082 JIS L1094 Yarns Friction Static Tester Fabrics Textiles Friction Static Electricity Testing Instrument
FZ/T 64082 JIS L1094 Yarns Friction Static Tester Fabrics Textiles Friction Static Electricity Testing Instrument
Specifications
Type :
Testing Machine
Accuracy :
---
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing, Textile Testing
customized support :
OEM, ODM, OBM
power :
200W
Protection Class :
Ip56
Voltage :
220 V, 380 V
warranty :
1 Year
Logo/graphic design :
Hot Stamping
Weight :
Approximately 50 kilograms
Working power supply :
AC 220V, 50Hz, 200W
Dimensions of main unit :
450mm*315mm*320mm
Sample size :
(80 ± 1) mm * (50 ± 1) mm
MOQ :
1
Description

FZ/T 64082 JIS L1094 Yarns Friction Static Tester Fabrics Textiles Friction Static Electricity Testing Instrument

Product Description

Introduction

Used to evaluate the static properties of fabrics or yarns and other materials after they become charged through friction.

Compliant with the standards

GB/T 12703.5-2020, FZ/T 01061 (ZBW 04009), JIS L1094, FZ/T 64082-2021

Product Features

1. Randomly display the peak voltage, friction belt voltage and time.

2. Peak voltage is automatically locked.

3. Automatically measure the attenuation time.

FZ/T 64082 JIS L1094 Yarns Friction Static Tester Fabrics Textiles Friction Static Electricity Testing Instrument

Technical Specification

Static voltage testing range and accuracy

0 - 10KV, accuracy: ≤ ±1%

Drum dimensions and rotational speed

Outer diameter (150 ± 1) mm, Width (60 ± 1) mm, Rotational speed: (400 ± 1) r/min

Friction time

Adjustable from 0 to 99.99 seconds (The test is scheduled for 1 minute)

Half-life time range

0 - 99.99 seconds

Size of friction cloth and pre-applied tension

(150 ± 1) mm × (25 ± 1) mm, pre-applied tension: (4.9 ± 0.1) N

Sample size

(80 ± 1) mm × (50 ± 1) mm

Dimensions of main unit

450mm × 315mm × 320mm

Dimensions of electrical control box

450mm × 256mm × 185mm

Working power supply

AC 220V, 50Hz, 200W

Weight

Approximately 50 kilograms

FZ/T 64082 JIS L1094 Yarns Friction Static Tester Fabrics Textiles Friction Static Electricity Testing InstrumentFZ/T 64082 JIS L1094 Yarns Friction Static Tester Fabrics Textiles Friction Static Electricity Testing InstrumentFZ/T 64082 JIS L1094 Yarns Friction Static Tester Fabrics Textiles Friction Static Electricity Testing InstrumentFZ/T 64082 JIS L1094 Yarns Friction Static Tester Fabrics Textiles Friction Static Electricity Testing InstrumentFZ/T 64082 JIS L1094 Yarns Friction Static Tester Fabrics Textiles Friction Static Electricity Testing Instrument
