Specifications
Type :
Testing Machine
Accuracy :
---
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
----
Protection Class :
Ip56
Voltage :
220 V
warranty :
1 Year
Logo/graphic design :
Hot Stamping
Wheel width :
70mm
Counter :
LCD liquid crystal display, 0-999,999
Test load :
5kg
Rolling speed :
60 rpm/min
MOQ :
1
Description

DIN 3415 ISO 22776 22777 Adhesive Hook Fatigue Tester Hooked Tape Fatigue Strength Testing Machine

Product Description

Introduction

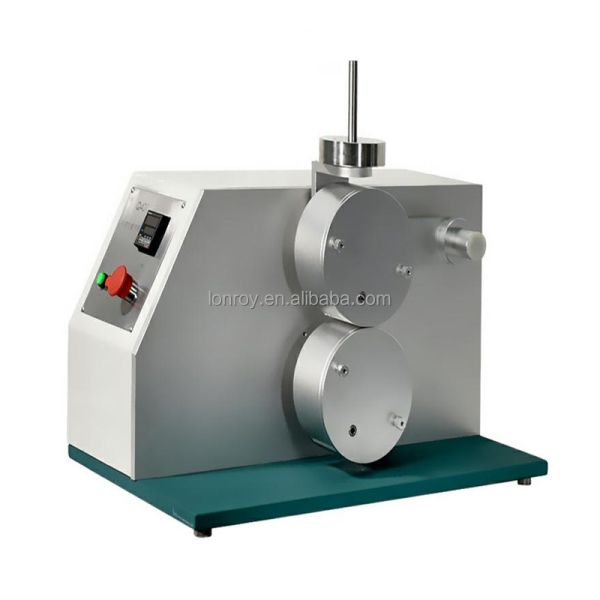

The Adhesive Hook Fatigue Tester / Hooked Tape Fatigue Strength Testing Machine is used to test the adhesion ability of the hooked tape (velcro tape) after repeated peeling and adhering actions, and to evaluate whether it meets the standard requirements.

Applicable standards

DIN-3415, GB/T 3903.20, GB/T 3903.21, GB/T 23315, ISO 22777, ISO 22776, SATRA PM123

Test principle

The hooked tape fatigue tester / hooked tape fatigue strength testing machine performs repeated peeling and adhering actions on the testing machine. After a certain number of repetitions, the test piece is pressed evenly by the weight of the roller, and then combined with the tensile testing machine to measure its adhesion force (AS) and adhesion strength (PA).

DIN 3415 ISO 22776 22777 Adhesive Hook Fatigue Tester Hooked Tape Fatigue Strength Testing Machine

Technical Specification

Wheel diameter

Upper wheel φ162.5mm, Lower wheel φ160mm

Wheel width

70mm

Rolling speed

60 rpm/min

Reverse time

30 seconds reverse

Test load

5kg

Fixture groove

Width 4mm, Length 55 ± 2mm

Horsepower

AC1/8HP dual-frequency motor

Counter

LCD liquid crystal display, 0-999,999

DIN 3415 ISO 22776 22777 Adhesive Hook Fatigue Tester Hooked Tape Fatigue Strength Testing MachineDIN 3415 ISO 22776 22777 Adhesive Hook Fatigue Tester Hooked Tape Fatigue Strength Testing Machine
