FZ/T 60017 Liquid Penetration Tester, Penetration test Machine for Liquid
FZ/T 60017 Liquid Penetration Tester, Penetration test Machine for Liquid
Specifications
Brand Name :
LONROY
Place of Origin :
Guangdong, China
customized support :
OEM, ODM, OBM
power :
Electronic
warranty :
1year
Model Number :
LR-38
Test standard :
FZ/T 60017
MOQ :
5
Description

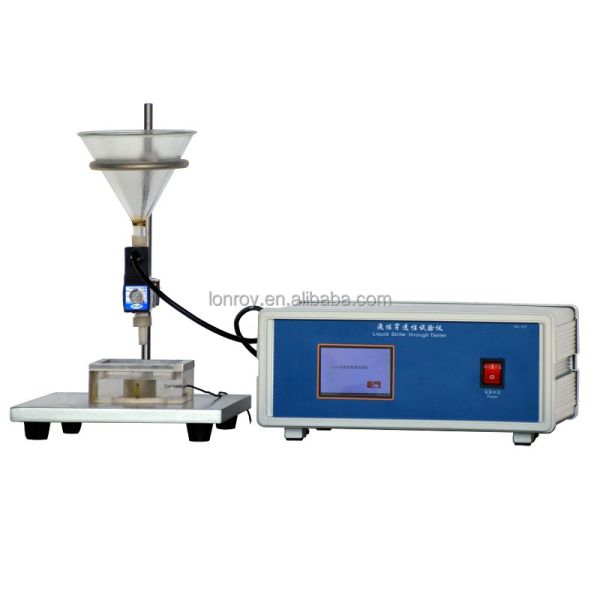

FZ/T 60017 Liquid penetration tester, Penetration test machine for liquid

Introduction:

Application scope of the instrument:The instrument is suitable for the penetration test of thin nonwovens such as women's sanitary napkins and diaper covering materials.

Working principle of the instrument:A certain amount of artificial urine is poured into a nonwovens sample laid on a standard absorbent pad in a prescribed way, and the time required for all the liquid to pass through the nonwovens sample is measured by electrometry.

FZ/T 60017 Liquid penetration tester, Penetration test machine for liquid

Applicable standards:

FZ/T 60017 Test method for liquid penetration of thin nonwovens for sanitary use;

GB/T 24218.8 Textile nonwovens - Test methods - Part 8: Determination of liquid penetration time (simulated urine);

GB/T 24218.13 Textile nonwovens - Test methods - Part 13: Determination of liquid multiple penetration time;

GB/T 24218.14 Textile nonwovens -- Test methods -- Part 14: Determination of reverse moisture content of clad materials.

FZ/T 60017 Liquid penetration tester, Penetration test machine for liquid

Technical parameters:

Burette capacity

50ml

Funnel velocity with solenoid valve

Flow 25ml at (3.5±0.25) s;Drip pipe 1, the outlet is Φ3mm or so (GB/T 24218) 80ml flow in 6s, drip pipe 2, outlet Φ6mm (FZ/T 60017)

Distance between funnel tip and sample:

adjustable

Base plate quality

organic glass

Penetration disk size

100mm×100mm×25mm

Sample size

125mm×125mm

Accuracy of timer

0.01s

Total weight of penetration disk

500g

Power supply

AC220V± 10% power: 50W

Volume

530mm×250mm×650mm

Weight

15Kg

FZ/T 60017 Liquid Penetration Tester, Penetration test Machine for LiquidFZ/T 60017 Liquid Penetration Tester, Penetration test Machine for LiquidFZ/T 60017 Liquid Penetration Tester, Penetration test Machine for LiquidFZ/T 60017 Liquid Penetration Tester, Penetration test Machine for LiquidFZ/T 60017 Liquid Penetration Tester, Penetration test Machine for Liquid
