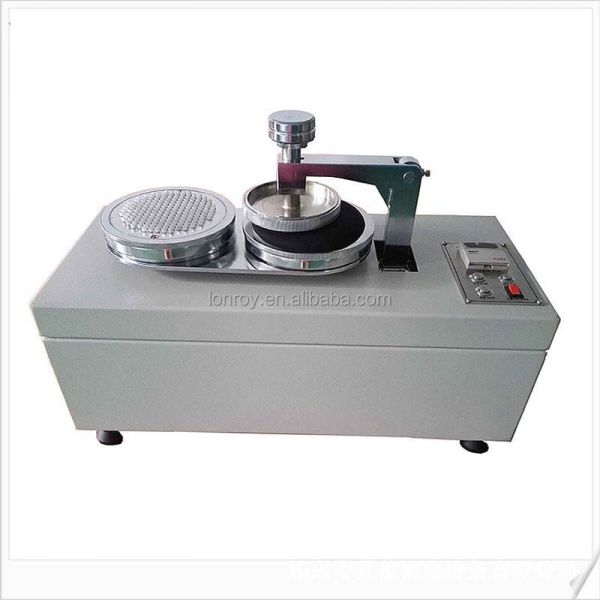

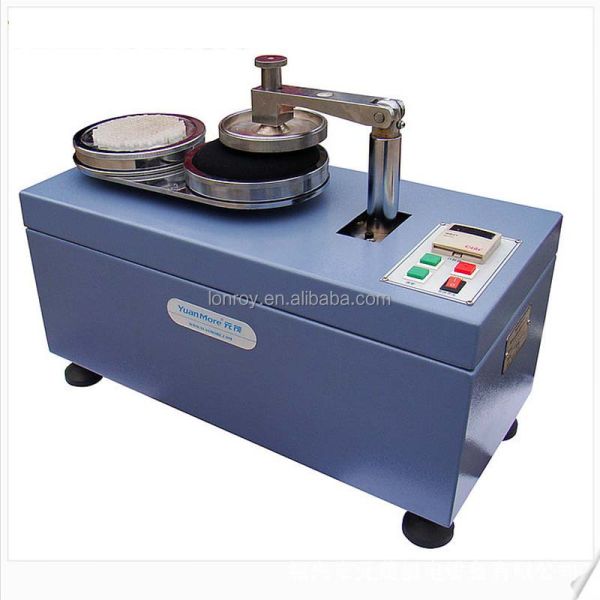

DIN538863 JISL1076 Fabric Pilling Apparatus, Textile Pilling Apparatus
DIN538863 JISL1076 Fabric Pilling Apparatus, Textile Pilling Apparatus
DIN538863 JISL1076 Fabric Pilling Apparatus, Textile Pilling Apparatus
DIN538863 JISL1076 Fabric Pilling Apparatus, Textile Pilling Apparatus
Specifications
Brand Name :
LONROY
Place of Origin :
Guangdong, China
customized support :
OEM, ODM, OBM
power :
Electronic
warranty :
1 Year
Model Number :
LR-502
Product name :
Textile pilling apparatus
MOQ :
5
Description

DIN538863 JISL1076 Fabric pilling apparatus, Textile pilling apparatus

Main features:

The circular trajectory method tests the fuzz and pilling resistance of various fabrics.
A digital counter is used to control two sets of sinusoidal mechanism, so that the sample and the grinding table form a compass track relative motion at a certain speed. Nylon brush and abrasives or single abrasives are used to make chemical fiber knitted fabrics, chemical fiber woven fabrics, worsted blends, worsted fabrics, coarse wool fabrics and other fabrics friction pilling and pilling, and the pilling sample is rated according to the pilling sample.Can be set times, automatic counting, Hall element acquisition times signal, LED display data.The machine adopts linear guide rail as sliding unit, smooth operation, low noise, good consistency!

DIN538863 JISL1076 Fabric pilling apparatus, Textile pilling apparatus

Technical parameter:

Motion trajectory

φ40mm ± 1mm circular trajectory

Package size

650mm x 350mm x 440mm

Movement speed

60r/min ± 1r/min

Volume

550mm × 260mm × 385mm

Brush height

2mm ~ 10mm adjustable

Power supply

AC220V ± 10 50Hz

Count range

1 to 999,900 times

Weight

31kg

DIN538863 JISL1076 Fabric pilling apparatus, Textile pilling apparatus

The choice of weights:

The machine is equipped with two weights of different weights, which are 100cN and 290cN respectively. Users can choose different weights according to different experimental requirements. When the weights need to be replaced, please hold the weights and rotate counterclockwise to remove the weights.
Three weight: 490cN no weight;
590cN put 100cN weight;
780cN with 290cN weight

DIN538863 JISL1076 Fabric Pilling Apparatus, Textile Pilling ApparatusDIN538863 JISL1076 Fabric Pilling Apparatus, Textile Pilling ApparatusDIN538863 JISL1076 Fabric Pilling Apparatus, Textile Pilling Apparatus
