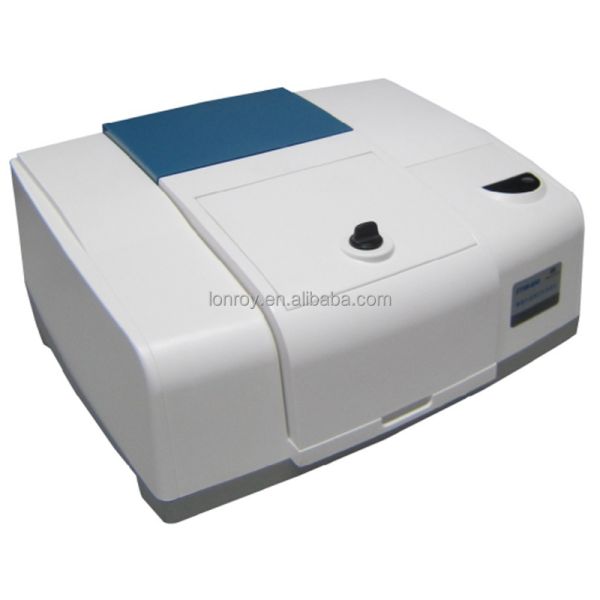

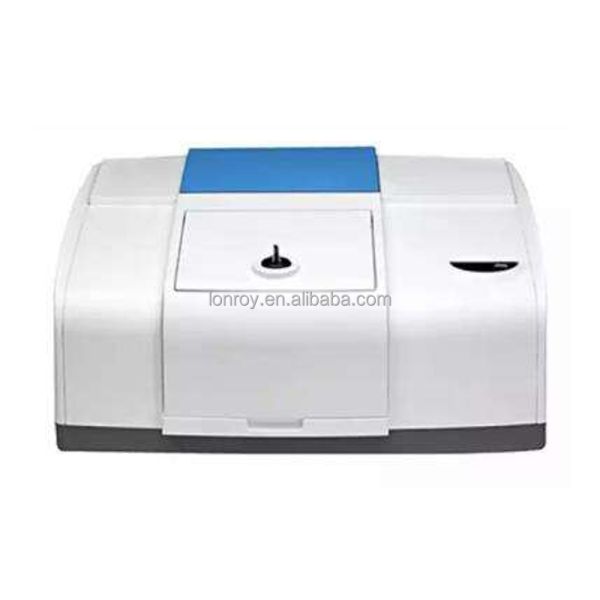

FTIR-650 Single Beam FTIR Spectrometer/Fourier Transform Infrared Spectrophotometer Price
FTIR-650 Single Beam FTIR Spectrometer/Fourier Transform Infrared Spectrophotometer Price
FTIR-650 Single Beam FTIR Spectrometer/Fourier Transform Infrared Spectrophotometer Price
FTIR-650 Single Beam FTIR Spectrometer/Fourier Transform Infrared Spectrophotometer Price
FTIR-650 Single Beam FTIR Spectrometer/Fourier Transform Infrared Spectrophotometer Price
FTIR-650 Single Beam FTIR Spectrometer/Fourier Transform Infrared Spectrophotometer Price
FTIR-650 Single Beam FTIR Spectrometer/Fourier Transform Infrared Spectrophotometer Price
FTIR-650 Single Beam FTIR Spectrometer/Fourier Transform Infrared Spectrophotometer Price
FTIR-650 Single Beam FTIR Spectrometer/Fourier Transform Infrared Spectrophotometer Price
FTIR-650 Single Beam FTIR Spectrometer/Fourier Transform Infrared Spectrophotometer Price
FTIR-650 Single Beam FTIR Spectrometer/Fourier Transform Infrared Spectrophotometer Price
FTIR-650 Single Beam FTIR Spectrometer/Fourier Transform Infrared Spectrophotometer Price
Specifications
Resolution :
1 LUX
Sampling Rate :
4 Times/Second
Spectral Bandwidth :
5 nm
Type :
Lux Meter
Model Number :
FTIR-650
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Display Type :
LCD
Light Source :
None
Operating Temperature :
0 °C ~ 40 °C
Repeatability Test :
±1%
Product name :
FT-IR Spectrometer
Power :
Electronic
MOQ :
1
Description

FTIR-650 Single Beam FTIR Spectrometer/Fourier Transform Infrared Spectrophotometer Price

FTIR-650 is a single beam FTIR spectrometer. Thisinstrument is operated by a PC. It is a powerful tool to

analyze the sample structure in many fields such aspetroleum, chemical engineering and pharmaceutical.

FTIR-650 Single Beam FTIR Spectrometer/Fourier Transform Infrared Spectrophotometer PriceHigh stable optical system

1.The design integrates main components to an optical bench machined from a cast aluminum.Highly stable and no need for adjustment,re-moving troubles of maintenance of optical path.

2.Precision machinery ensures high repeatability of every scanning. Advanced design concept is adopted in both optical path and every part

3.The system’s corner cube optics provides easy operation without requiring complicated electronics and additional moving parts. In addition, many components of the spectrometer are user replaceable which saves time over the lifetime of the instrument.

4.Internal dynamic collimation system and movable mirror driving system keep interferometer at optimum situation. Voice-coil driver and precision slide improves the ability of working in severe conditions.

5.The spectrometer includes a container of desiccant that protects the beam splitter and other optical components from moisture damage.

FTIR-650 Single Beam FTIR Spectrometer/Fourier Transform Infrared Spectrophotometer Price

Specifications

Wavenumber Range

7800 ~ 350 cm- 1

Resolution

1 cm- 1

Signal Noise Ratio

20000:1 ( resolution 4cm- 1; sample and background scan for 1 min 2100cm- 1)

Detector

High resolution detector

Beamsplitter

Coated KBr

Light Source

Long life, air cooled IR light source

Electronic System

A/D converter of 24 bits at 500MHz, USB 2.0

Power

110-220VAC, 50-60Hz

Wavenumber Range

7800 ~ 375 cm- 1

Resolution

1 cm- 1

Signal Noise Ratio

20000:1 ( resolution@4cm- 1; sample and background scan for 1 min@2100cm- 1)

FTIR-650 Single Beam FTIR Spectrometer/Fourier Transform Infrared Spectrophotometer Price

Parts included

No.

Description

Qty

1

Spectrometer

1

2

Power Supply

1

3

Dust Cover

1

4

USB Cable

1

5

Power Cord

1

6

Screw Driver, 150x6mm

1

7

Allen Wrench, 2.5mm

1

8

Replacement Desiccant

1

9

Polystyrene Film

1

10

Software CD

1

11

User Manual

1 copy

FTIR-650 Single Beam FTIR Spectrometer/Fourier Transform Infrared Spectrophotometer PriceFTIR-650 Single Beam FTIR Spectrometer/Fourier Transform Infrared Spectrophotometer PriceFTIR-650 Single Beam FTIR Spectrometer/Fourier Transform Infrared Spectrophotometer Price
