Product description

LR-T5321 Research grade micro confocal Raman spectrometer is a spectral measurement system developed by our company with high resolution and high sensitivity. This instrument can realize micro and macro measurements. It supports Raman, fluorescence and absorption spectroscopy measurements, and provides advanced confocal Raman imaging, polarization imaging and fluorescence imaging functions. It can quickly and accurately obtain detailed image and spectral data of the tested sample, and can be widely used in standard Raman analysis, fluorescence spectrum analysis, photoluminescence (PL), pinpoint enhanced Raman scattering (TERS) and so on. The LR-T5321 ensures high performance while also taking into account ease of use. The software automatically switches the white light/laser optical path, and reserves optical input and output interfaces for later expansion of other functions.

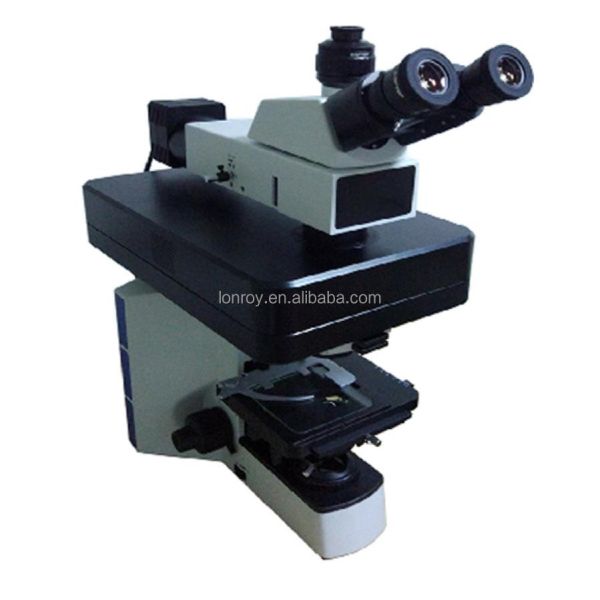

LR-T5321 Single-channel Micro Raman Spectrometer Optical Spectrum Tester Metals Analyzer

Device features:

1 "Compact structure design, strong performance, high degree of automation

LR-T5321 microconfocal Raman spectrometer adopts aberration-correcting optical path design, and is equipped with high sensitivity deep cooling CCD detector, and the optical path software automatically switches.

The instrument has high versatility and scalability

2 LR-T5321 can expand up to 1 laser and 1 grating, which can realize the measurement of Raman spectrum, fluorescence spectrum and absorption spectrum, and reserve multiple optical interface, which can be easily used with other instruments.

3.Professional analysis software

The analysis software can be used for macro and micro studies, with Raman imaging, fluorescence imaging, polarization imaging, automatic deduction of fluorescence baseline, quantitative analysis, self-built database and spectrogram comparison.

4.Customized micro Raman spectrometer accessories

Measurement accessories such as spectrum test kits, hot and cold stations, electrode polishers and in-situ reaction pools are available

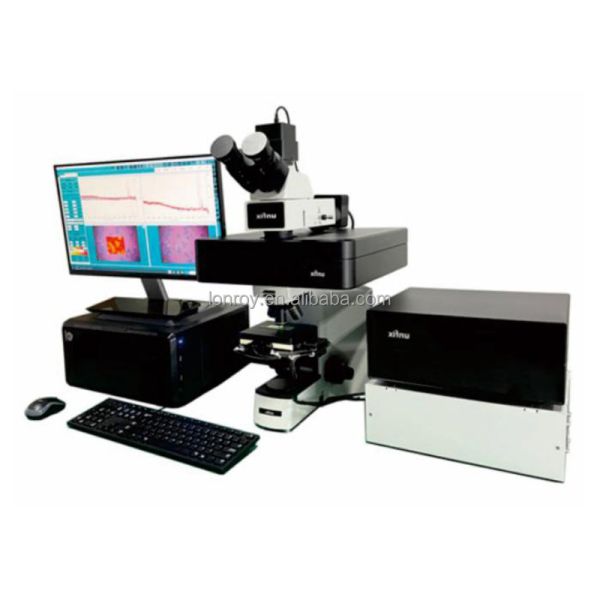

LR-T5321 Single-channel Micro Raman Spectrometer Optical Spectrum Tester Metals Analyzer

Application:

Industrial process organic and inorganic pollution and temperature and pressure monitoring

Application of Raman spectroscopy to allotrope materials

Application of Raman spectroscopy in material analysis

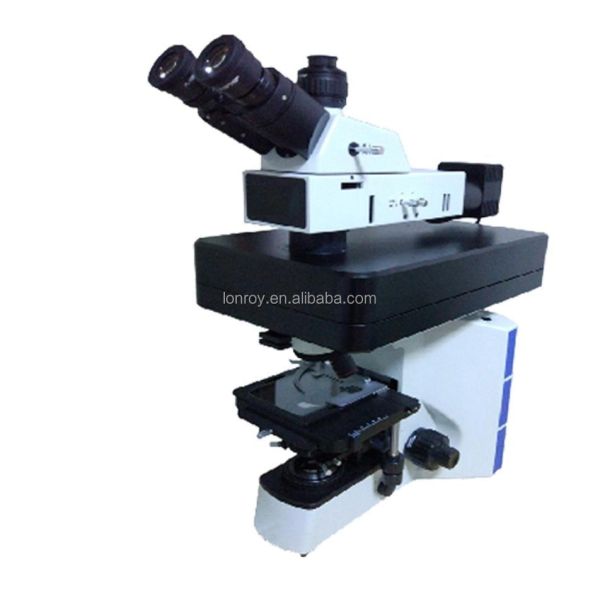

LR-T5321 Single-channel Micro Raman Spectrometer Optical Spectrum Tester Metals Analyzer

Technical parameters

1.Working conditions:

1.1. Working voltage: DC 24V 2A

1.2. Temperature: Operating environment 15℃ -30 ℃

1.3. Humidity: <80%RH

1.4. Stable operating environment

2.Technical indicators:

2.1. Ease of operation

2.1.1. Software operation to collect music;

2.1.2. Friendly Chinese software operation interface;

2.1.3. One-click correction function, eliminating complex parameter modification work;

2.1.4. Expandable optical path design, various functional modules can be added later.

2.2. Mobility

Compact design, can transport the whole machine; All optical components are rigidly fixed on the same frame, and the optical stability is good.

2.3 Host System

2.3.1. Spectral range:

532nm excitation light source: 127-3600cm-1 (±10%)

2.3.2. Spectral resolution: <5cm-1

2.3.3. Signal to Noise ratio: > 2000:1

*2.3.4. Detector:

High sensitivity 2068*70 pixel array CCD (200-1100nm)

*2.3.5. High optical quantum efficiency: QE > 75% at 600nm;

2.3.6. High full well capacity, wide dynamic range (with anti-overflow function)

2.3.7. Raster:

High diffraction efficiency (65%@532nm)
