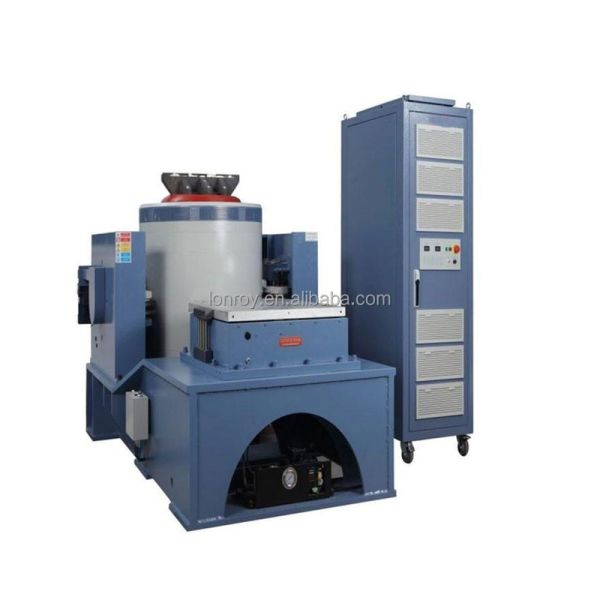

Electromagnetic Vibrator Vibration Testing Machine Vibration Shaker Tester Electromagnetic Vertical Vibration Test
Electromagnetic Vibrator Vibration Testing Machine Vibration Shaker Tester Electromagnetic Vertical Vibration Test
Electromagnetic Vibrator Vibration Testing Machine Vibration Shaker Tester Electromagnetic Vertical Vibration Test
Electromagnetic Vibrator Vibration Testing Machine Vibration Shaker Tester Electromagnetic Vertical Vibration Test
Electromagnetic Vibrator Vibration Testing Machine Vibration Shaker Tester Electromagnetic Vertical Vibration Test
Electromagnetic Vibrator Vibration Testing Machine Vibration Shaker Tester Electromagnetic Vertical Vibration Test
Electromagnetic Vibrator Vibration Testing Machine Vibration Shaker Tester Electromagnetic Vertical Vibration Test
Electromagnetic Vibrator Vibration Testing Machine Vibration Shaker Tester Electromagnetic Vertical Vibration Test
Electromagnetic Vibrator Vibration Testing Machine Vibration Shaker Tester Electromagnetic Vertical Vibration Test
Electromagnetic Vibrator Vibration Testing Machine Vibration Shaker Tester Electromagnetic Vertical Vibration Test
Electromagnetic Vibrator Vibration Testing Machine Vibration Shaker Tester Electromagnetic Vertical Vibration Test
Electromagnetic Vibrator Vibration Testing Machine Vibration Shaker Tester Electromagnetic Vertical Vibration Test
Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
----
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
---
Protection Class :
Ip56
Voltage :
220 V
warranty :
1 Year
Vibration isolation frequency :
2.5 Hz
Allowable eccentric moment :
300N.m
Shaker dimensions :
800*600*710 mm
Shake weight :
About 320 Kg
MOQ :
1
Description

Electromagnetic Vibrator Vibration Testing Machine Vibration Shaker Tester Electromagnetic Vertical Vibration Test

Electromagnetic Vibrator Vibration Testing Machine Vibration Shaker Tester Electromagnetic Vertical Vibration Test Device

Product Description

Product Application

Vibration test is a process of exciting or shocking some part or device to observe its reaction in real environment. Vibration test is widely applied in many fields, ranging from circuit board, airplane, ship, rocket, missile, automobile, household appliance and other industrial products.

LONROY can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products

according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.

Vibration Shaker Test Machine Electromagnetic Vibration Tester Electromagnetic Horizontal and Vertical Vibration Test Equipment

Introduction to digital vibration controller

The vibration controller adopts the advanced distributed structure system, the closed-loop control is realized by the DSP

processor, and the PC is independent of the control ring, which ensures the real-time and efficient control system, can respond to any change of the test system in time and quickly, and ensure the stability and high precision of the control. The hardware adopts 32-bit floating point DSP processor with main frequency up to 300MHz, ADC/DAC with 24-bit resolution, and high-precision floating point digital filter and low noise design technology of hardware circuit. The controller randomly controls the dynamic range of more than 90dB, and the signal-to-noise ratio is more than 100dB.

Vibration controller features

A. High performance and reliability

B, simple operation

C, powerful function and flexibility

D. Test safety

E. Generate test reports

VElectromagnetic Vibrator Vibration Testing Machine Vibration Shaker Tester Electromagnetic Vertical Vibration Test Device

Technical Specification

Max. Sine force

600Kg.f peak (5.88KN)

Max. random force

600Kg.f r.ms (5.88KN)

Max. shock force

1200Kg.f peak (11.76KN)

Frequency range

1 - 3000 Hz

Max. displacement

50.8 mm p-p

Max. velocity

2m/s

Max. acceleration

100G (980 m/s2)

First-order resonance frequency

3200 Hz±5%

Effective load

200 kg

Vibration isolation frequency

2.5 Hz

Diameter of armature

200 mm

Mass of armature

6kg

Table screw

16×M8

Flux leakage

<10gauss

Allowable eccentric moment

300N.m

Shaker dimensions

800×600×710 mm

Shake weight

About 320 Kg
