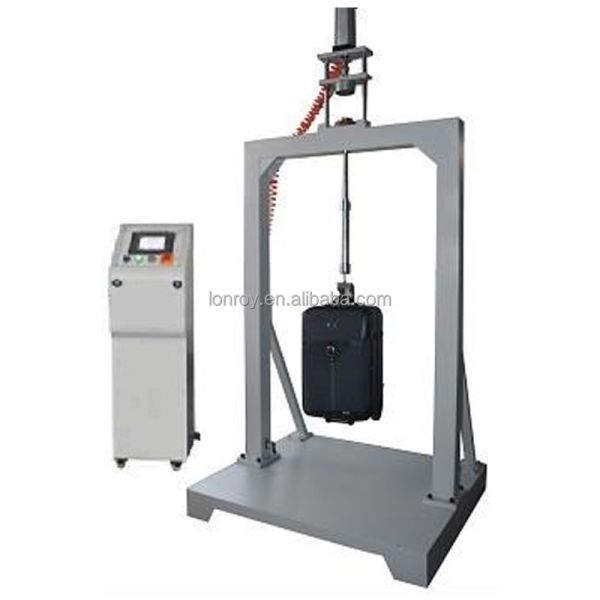

Pneumatic Bag Oscillating Testing Machine, Luggage Pull Rod Vibration Quality Tester Vibration Test Machine
Pneumatic Bag Oscillating Testing Machine, Luggage Pull Rod Vibration Quality Tester Vibration Test Machine
Pneumatic Bag Oscillating Testing Machine, Luggage Pull Rod Vibration Quality Tester Vibration Test Machine
Pneumatic Bag Oscillating Testing Machine, Luggage Pull Rod Vibration Quality Tester Vibration Test Machine
Pneumatic Bag Oscillating Testing Machine, Luggage Pull Rod Vibration Quality Tester Vibration Test Machine
Pneumatic Bag Oscillating Testing Machine, Luggage Pull Rod Vibration Quality Tester Vibration Test Machine
Pneumatic Bag Oscillating Testing Machine, Luggage Pull Rod Vibration Quality Tester Vibration Test Machine
Pneumatic Bag Oscillating Testing Machine, Luggage Pull Rod Vibration Quality Tester Vibration Test Machine
Pneumatic Bag Oscillating Testing Machine, Luggage Pull Rod Vibration Quality Tester Vibration Test Machine
Pneumatic Bag Oscillating Testing Machine, Luggage Pull Rod Vibration Quality Tester Vibration Test Machine
Pneumatic Bag Oscillating Testing Machine, Luggage Pull Rod Vibration Quality Tester Vibration Test Machine
Pneumatic Bag Oscillating Testing Machine, Luggage Pull Rod Vibration Quality Tester Vibration Test Machine
Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
±1%
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
---
Protection Class :
IP57
Voltage :
220 V
warranty :
1 Year
Test standard :
Pneumatic bag oscillating testing machine
Model :
LR-345A
MOQ :
1
Description

Pneumatic Bag Oscillating Testing Machine, Luggage Pull Rod Vibration Quality Tester Vibration Test Machine

Pneumatic bag oscillating testing machine,Luggage pull rod vibration quality tester
Use:
This machine is used for the comprehensive test of the whole bag, as the basis of quality improvement.

Pneumatic bag oscillating testing machine,Luggage pull rod vibration quality tester
principle:
The test method of this machine is to load the specified load on the object, at the speed of 30 shocks per minute and 4 inches of stroke to do 2500 tests on the specimen, the test results can be used as a reference for quality improvement.

Pneumatic bag oscillating testing machine,Luggage pull rod vibration quality tester
according to the standard
The instrument reference standard: QB/T 2922-2007.

Pneumatic bag oscillating testing machine,Luggage pull rod vibration quality tester
Technical parameters:

Impact height 2000mm Vibration mode up and down motion, damping spring constant is 17.54N/mm.
Test speed 20 times /min, test stroke is 150mm Number of impact Set the number of pull rod, soft handle and hard handle respectively according to the standard 100-2000 times.
Number setting Set the number of impact, 1~ 999,999, automatic stop after completion of the test. Control device adjustable speed, automatic stop midway drop, and has automatic recording and memory function.
Sample preparation Before the test, the sample should be parked in the temperature of 18ºC~25ºC environment for 1 hour, during the parking should not be compressed. Machine size 1400×1200×2500 mm (W×D×H)
Machine weight about 390kg Power source 1, 220V/50HZ
