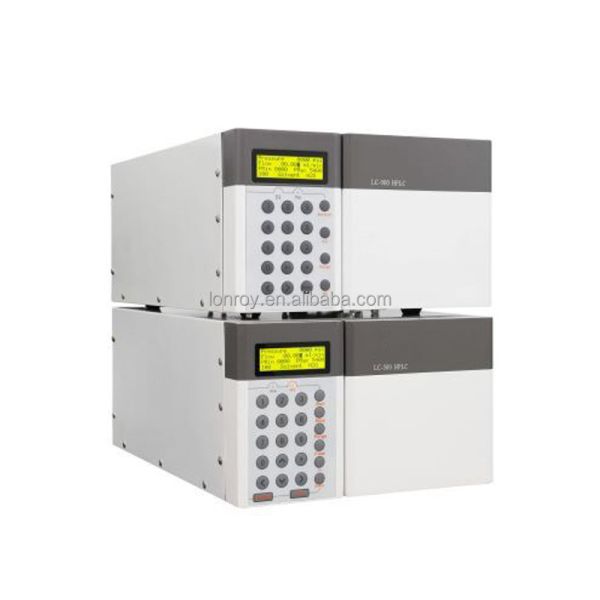

LC-500A Chromatography Analytical Apparautus Liquid Chromatograph Machine (Dual Pump) ICP Emission Spectrometer ICP ICP
LC-500A Chromatography Analytical Apparautus Liquid Chromatograph Machine (Dual Pump) ICP Emission Spectrometer ICP ICP
Specifications
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Customized support :
OEM, ODM, OBM
Warranty :
1 year
MOQ :
1
Description

LC-500A Chromatography Analytical Apparautus Liquid Chromatograph Machine (Dual Pump) ICP Emission Spectrometer ICP ICP

LC-500A Chromatography Analytical Apparautus Liquid Chromatograph Machine (Dual pump)

Performance characteristics

LC-500 high performance liquid chromatography adopts the static motor control circuit designed by independent technology to realize the automatic feedback and tracking function of motor control signals, effectively improve the motor control precision, and ensure the reliability and stability of the pump

Pump form: series or parallel double plunger

Floating self-correcting sealing ring technology and pump head self-cleaning function technology, can extend the service life of the sealing ring, to ensure that the instrument durable and high efficiency

Easy to use flow and pressure correction features ensure high accuracy and stability of the instrument

Using two kinds of gradient running program design: linear gradient and step gradient optional;

Programmed solvent class and compression factor can be automatically compensated

Complete pre - cleaning function for quick solvent replacement

Holographic double grating technology is adopted

Application of high precision photodiode design, linear range extension

Convenient and unique light intensity gain coefficient self-correction function

Holmium glass tank design, full wavelength scanning, convenient and accurate wavelength correction

Universal sample pool design, easy to change between micro and constant pool

Deuterium lamp can be replaced easily and quickly without correction

LC-500A Chromatography Analytical Apparautus Liquid Chromatograph Machine (Dual pump)

Technical parameters

  • infusion pump

    flow range

    0.001-10ml/min

    degree of accuracy

    ±1%

    degree of precision

    0.25%

    pressure limit

    0-42MPa

    gradient

    Elements 2 Collector's Edition

    Gradient mode

    Gradient elution internal software can be self-controlled, and can be controlled by PC and pump

    power supply

    100 to 240 VAC, 50 to 60Hz, 80watts

    size

    40CM(L)×30CM(W)×18CM(H)

    weight

    8.0kg

    detector

    lamp source

    Deuterium lamp/tungsten lamp

    optical path design

    Monochromator with a dual silicon photodiode detector

    wavelength coverage

    190-700nm steady growth

    1nm,Can be set by keyboard or RS232/485/USB

    bandwidth

    <6m

    wavelength accuracy

    ±1nm

    wavelength repeatability

    0.2nm

    Absorption range

    0.0005AU/mV-4AU/mV

    Data system output

    4AU/V Sampling signal control, automatic zeroing, support integrator and recorder dual output

    noise

    ±0.5x10-5AU

    drifting

    2x10-4AU(P-P)

    sample cell

    Standard Conical Pool (10mm optical path, 4.5ul volume),Semi-preparation (5mm optical path,3.5ul volume)

    power supply

    100 to 240 VAC, 50 to 60Hz, 80watts

    size

    40CM(L)×30CM(W)×18CM(H)

    weight

    8.0kg
    LC-500A Chromatography Analytical Apparautus Liquid Chromatograph Machine (Dual Pump) ICP Emission Spectrometer ICP ICPLC-500A Chromatography Analytical Apparautus Liquid Chromatograph Machine (Dual Pump) ICP Emission Spectrometer ICP ICP
