Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
----
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
----
Protection Class :
Ip56
Voltage :
220 V
warranty :
1 Year
Data interface :
RS485
Water bath capacity :
130 L (6 samples)
System resolution :
0.01 °C
System accuracy :
± 0.1 °C
MOQ :
1
Description

Cement Hydration Calorimeter Fully Automatic Cement Hydration Heat Tester Cement Maximum Heat Release Rate Test DSC

Cement Hydration Calorimeter Fully Automatic Cement Hydration Heat Tester Cement Maximum Heat Release Rate Test Machine

Product Description

Product Introduction

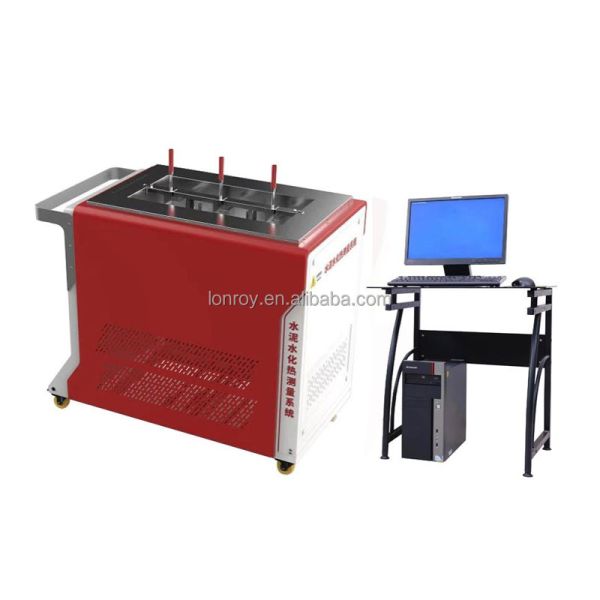

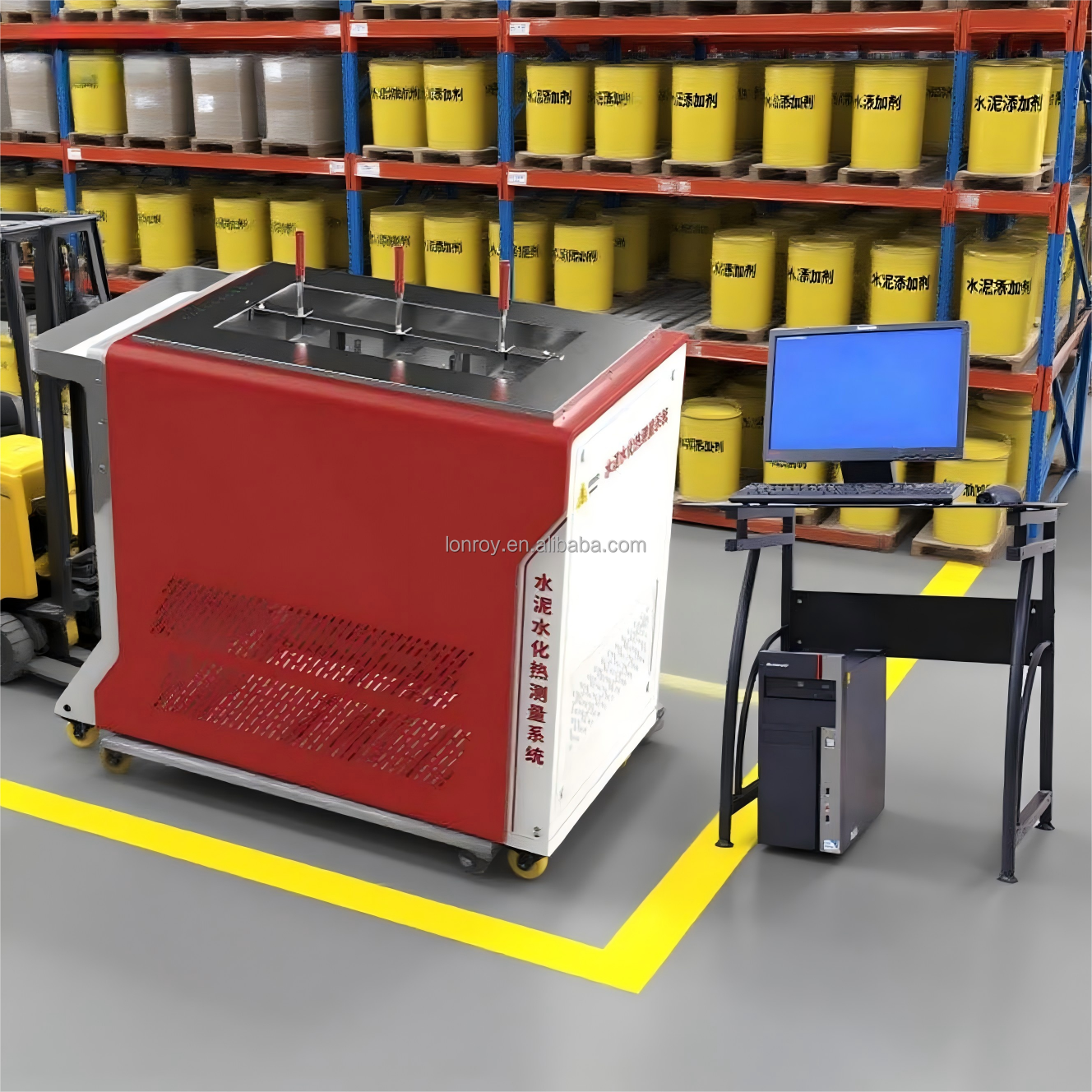

This fully automatic cement hydration heat tester was developed by our factory in accordance with the national standard GB/T12959-2008, "Method for Determination of Cement Hydration Heat." It automatically records the temperature changes of cement mortar within multiple calorimeters, calculates the total heat accumulated and dissipated within the calorimeters, and thus determines the hydration heat of cement over a 7-day (or 28-day) hydration period. This fully automated system, with dense sampling points and high accuracy, completely replaces traditional manual reading instruments. It can be used in cement plants, research institutes, colleges and universities, and construction engineering departments. It is ideal for measuring the hydration heat of cements such as dam cement, Portland cement, slag cement, fly ash cement, and cements containing admixtures. It can also measure the hydration heat of concrete and automatically calculate the maximum heat release rate.

Standards

GB/T12959-2008 "Determination of Heat of Hydration of Cement"

GBT200-2017 "Medium-heat Portland Cement, Low-heat Portland Cement"

JTG 3420-2020 "Test Procedure for Cement and Cement Concrete for Highway Engineering"

JC/T 2608-2021 "Concrete Hydration Temperature Rise Inhibitors"

ECement Hydration Calorimeter Fully Automatic Cement Hydration Heat Tester Cement Maximum Heat Release Rate Test Machine

Technical Specification

Capable sample channels

6 (3 groups), customizable to meet customer requirements.

Note: Each channel can collect and analyze data independently. If a channel fails, other channels remain unaffected and can continue to operate.

Water bath capacity

130 L (6 samples)

Water bath temperature control accuracy

20 ± 0.1 °C

Water bath temperature control range

0 °C to 80 °C

System resolution

0.01 °C

System accuracy

± 0.1 °C

Data interface

RS485

Data acquisition speed

1 second to 1 hour (adjustable), ensuring accurate test results and significantly reducing human error.

Cement Hydration Calorimeter Fully Automatic Cement Hydration Heat Tester Cement Maximum Heat Release Rate Test DSCCement Hydration Calorimeter Fully Automatic Cement Hydration Heat Tester Cement Maximum Heat Release Rate Test DSCCement Hydration Calorimeter Fully Automatic Cement Hydration Heat Tester Cement Maximum Heat Release Rate Test DSC
