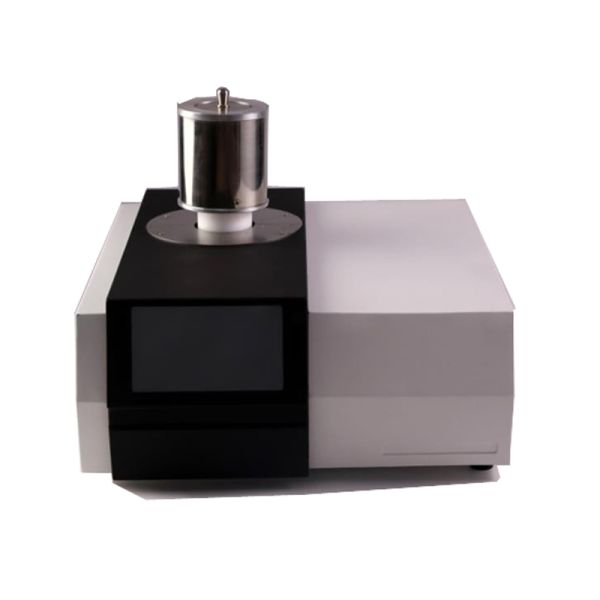

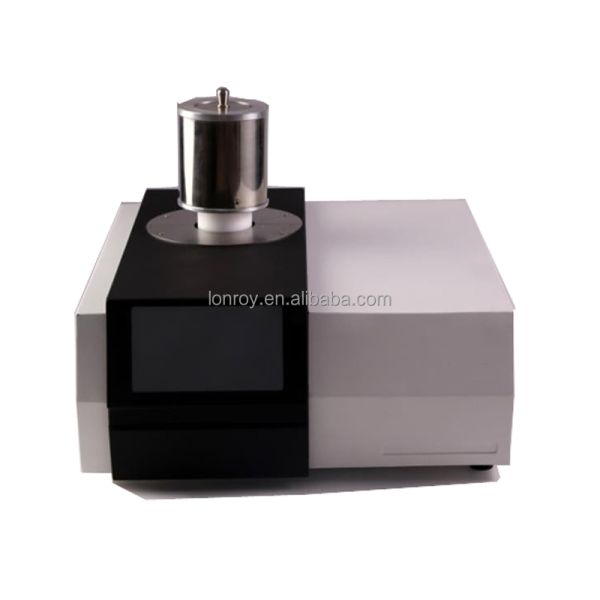

DTA DSC Analyzer 1000C High Temperature Differential Scanning Calorimeter DSC Differential Scanning Calorimeter

Product Introduction:

DTA DSC Analyzer 1000C High Temperature Differential Scanning Calorimeter DSC Differential Scanning Calorimeter

Technical parameters:

1. Temperature range: room temperature ~1000℃

2. Temperature resolution: 0.01℃

3. Temperature fluctuation :±0.01℃

4. Temperature repeatability :±0.1℃

5. Heating rate: 0.1 ~ 100℃/min

6. Constant temperature time: program setting

7. Temperature control mode: PID temperature control, temperature rise, constant temperature (automatic program control)

8.DSC range: 0 ~ ±600mW

9.DSC resolution: 0.01uW

10.DSC sensitivity: 0.001mW

11. Working power supply: AC220V/50Hz or customized

12. Atmosphere control gas: nitrogen, oxygen (automatic instrument switching)

13. Gas flow rate: 0-300mL/min

14. Gas pressure: 0.2MPa

15. Display mode: 24bit color, 7 inch LCD touch screen display

16. Data interface: standard USB interface

17. Parameter standard: equipped with standard material (indium, tin), users can correct the temperature by themselves

18. The instrument has several sets of thermocouples, a group to test the sample temperature, a group to test the internal ambient temperature of the instrument

19. The instrument has multi-point correction function, which can meet the accurate test of high, middle and low samples

20. The software can set the data collection frequency and export EXECL data packets and PDF reports

21. Curve scanning: temperature scanning, temperature scanning, temperature scanning

DTA DSC Analyzer 1000C High Temperature Differential Scanning Calorimeter DSC Differential Scanning Calorimeter

Technical features:

1. Industrial grade 7 inch touch screen, display rich information.

2. New ceramic furnace structure, better baseline, higher precision. Heating by indirect conduction mode, high uniformity and stability, reduce pulse radiation, better than the traditional heating mode.

3. USB communication interface, strong versatility, reliable communication without interruption, support for self-recovery connection function.

4. Automatic switching of two air flow, fast switching speed, short stability time. At the same time, add a protective gas input.

5. The software is easy to operate.
