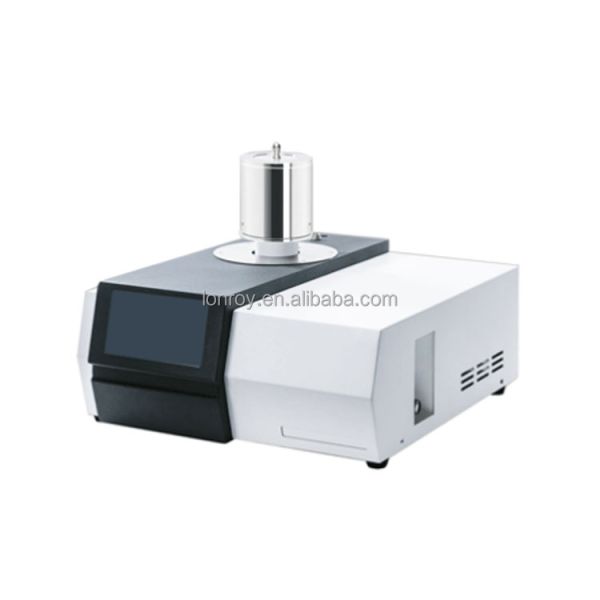

DSC DTA 1150 Celsius Differential Scanning Calorimeter Thermal Calorimetry Test Analyzer

DSC DTA 1150 Celsius Differential Scanning Calorimeter Thermal Calorimetry Test Analyzer

Product Introduction

Differential thermal analysis (DTA) is a technique to measure the temperature difference and temperature relationship between a substance and its reference substance under programmed temperature control.The dTA curve describes the temperature (T) between the sample and the reference as a function of temperature or time.In DTA tests, sample temperature changes are caused by endothermic or exothermic effects of phase transitions or reactions.Such as: phase transformation, melting, crystal structure transformation, boiling, sublimation, evaporation, dehydrogenation, fracture or decomposition reactions, oxidation or reduction reactions, lattice structure destruction and other chemical reactions.

Technical parameters:

1. Temperature range: room temperature ~1150℃

2. Range: 0 ~ ± 600MW

3. DTA accuracy: 0.01MW

4. Heating rate: 0.1 ~ 100℃/min

5 temperature resolution: 0.01℃

6 temperature accuracy: ±0.1℃

7. Temperature repeatability: ±0.1℃

8. Temperature control: heating up: program control can be adjusted according to the needs of the parameters

Constant temperature: program control constant temperature time arbitrary setting

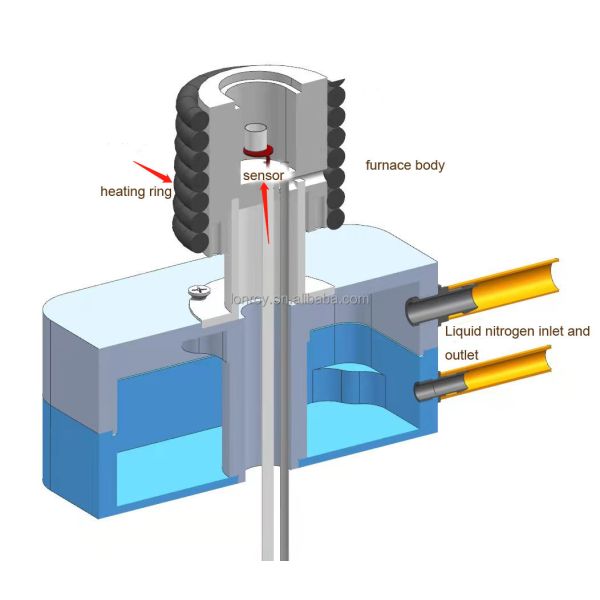

9. Furnace body structure: the furnace body adopts the upper cover structure, instead of the traditional lifting furnace body, high precision, easy to operate

10. Atmosphere control: internal program automatically switch

11. Data interface: standard USB interface with data cable and operating software

12. Display mode: 24bit color 7 inch LCD touch screen display

13. Parameter standard: equipped with standard materials, with a key calibration function, users can calibrate the temperature by themselves

14. Baseline adjustment: Users can adjust the baseline based on the slope and intercept of the baseline

15. Power supply: AC 220V 50Hz
