Specifications
plastic processed :
PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, EPS, PA, Polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP
style :
VERTICAL
plasticizing capacity(g/s) :
20
ejector stroke(mm) :
100
ejector force(kn) :
2000
theoretical shot volume(cm³) :
2
injection rate (g/s) :
66
machine type :
Electric
injection weight (g) :
64
screw diameter (mm) :
28
distance between tie bars :
180mm
weight (kg) :
1500
Place of Origin :
Guangdong, China
open stroke(mm) :
400
Model Number :
LR-250ST
Brand Name :
LONROY
power (kw) :
4000
warranty :
1 Year
key selling points :
Automatic
machinery test report :
Not Available
video outgoing-inspection :
Not Available
core components :
Pump
After-sales Service Provided :
Online support
MOQ :
1
Price :
$8,500
Description

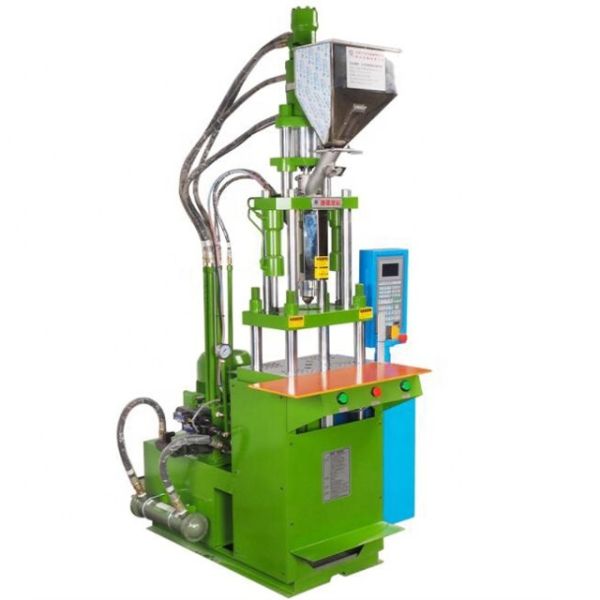

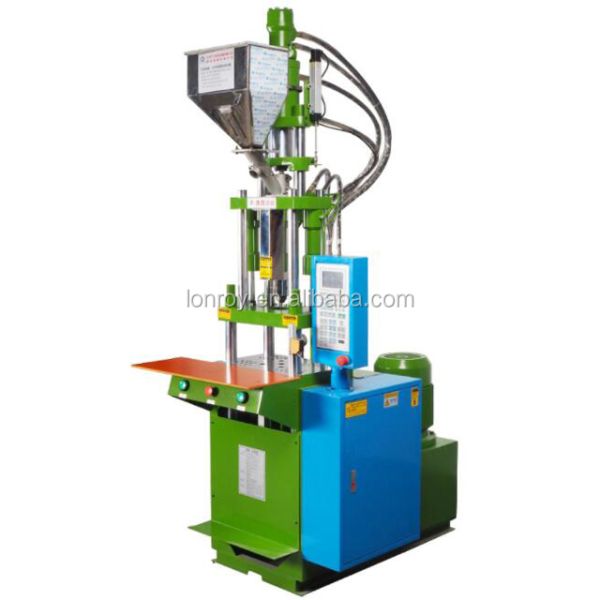

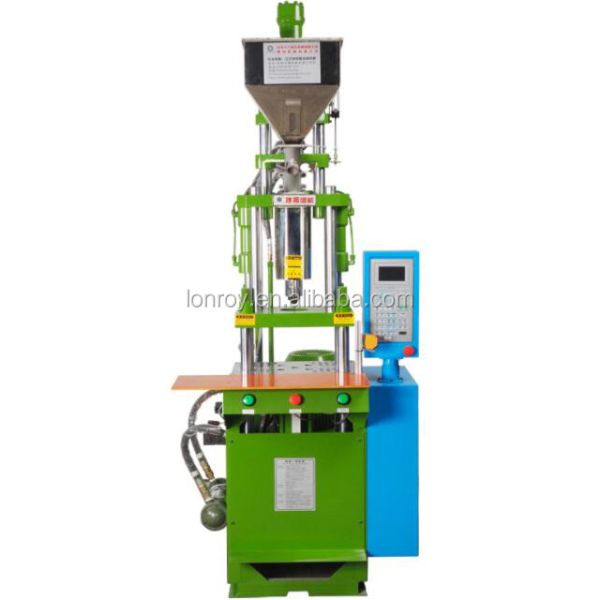

Plastic Testing Sample Injection Machine,small molding machine

Model Unit LR-160S2 LR-200ST LR-250ST LR-450ST LR-550ST LR-850ST LR-1200ST
INJECTION
UNIT

 Screw Barrel Diameter mm 26 28 28 30 26 28 30 30 32 34 32 35 42 42 45 48 42 45 48
Injection Pressure kg/cm2 1183 1019 1019 896 1530 1278 886 1171 996 820 1642 1385 960 1027 895 790 1469 1280 1125
Max. Shot Weight gram 50 58 58 67 56 64 74 74 84 106 102 123 176 176 201 227 199 228 260
Max. Shot Weight cm3/sec 34.6 40 67 76.7 57 66 75.5 62.5 71 95 49 59 84 99 113 129 95 129 183
Screw Barrel Route mm 105 105 115 115 140 140 200
Screw Barrel Rotary Speed rpm 0-215 0-200 0-205 0-190 0-175 0-200 0-180
Nozzle Contact Force tons 4.45 4.45 4.45 4.45 5.5 6.5 7.5
Nozzle Retraction Nozzle mm 130 130 170 190 210 210 210
Number of Temperature Control pcs 2 2 3 3 3 4 5
CLAMPING
UNIT		 Clamping Force tons 15 20 35 45 55 85 120
Platen Size mm 450*280 480*310 540*380 580*430 670*480 740*545 870*560
Distance Between Tie Bere mm 265 310x170 375*205 410*250 470*280 525*325 635*425
Min. Mold Height mm 100/25 100/30 158/58 220/70 270/70 430/230 480/280
Opening Stroke mm 190 180 180 200 200 255 300
Max. Opening Mold Distance mm 290/215 280/210 338/238 420/270 470/270 685/485 780/580
Ejetor Force tons 1.3 1.3 1.3 1.76 1.76 2.1 4.8
Ejetor Stoke mm 35 35 35 35 35 45 45
POWER/
HEADING
UNIT		 Max. Hydraulic Pressure kg/cm2 140 140 140 140 140 140 140
Pump Output L/min 17.5 29.5 34.5 37.2 40 47 56
Oil Resservoir Capacity Liter 80 100 100 130 150 180 200
Cooling Water Consumption L/hr 400-600 400-600 400-600 600-800 800-1000 800-1000 1000-1200
Pump Motor Power kw/hp 2.2/3HP 3.75/5HP 3.75/5HP 5.5/7.5HP 7.5/10HP 11/15HP 14.5/22HP
Barrel Heating Power kw 1.8 1.8 2.4 2.8 4.5 5 6
Total Power kw 4.2 5.5 6.3 9 12 16 20
OTHER Machine Weight tons 0.6 0.68 0.92 1.8 3 5 6.8
Machine Dimension(LxWxH) meter 1.35*0.92*2.06 1.4*0.90*2.37 1.55*0.93*2.45 1.7*1.2*3 1.85*1.2*3 2*1.3*3.2 2*1.4*4.1
Shipping Weight tons 0.8 0.88 1.12 2 3.4 5.4 7.2
Shipping Measurements(LxWxH) meter 1.3*1.0*2.23 1.49*1.08*2.25 1.55*1.14*2.3 1.82*1.18*2.16 2.0*1.15*2.6 2.2*1.4*2.5 2.2*1.6*2.8
