Specifications
Maximum Compressive Space :
600mm(23.62in)
Maximum Tensile Space :
650 mm(25.59in)
Type :
Hydraulic Tensile Testing Machine
Model Number :
WAW-600
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Crossbeam Displacement Accuracy :
±0.1 mm
Power Supply :
220 V
Product name :
Hydraulic Servo Hydraulic Tensile Testing Machine
Model :
WAW-600
Max Load :
600KN
Host weight :
5600 kg
MOQ :
1
Description

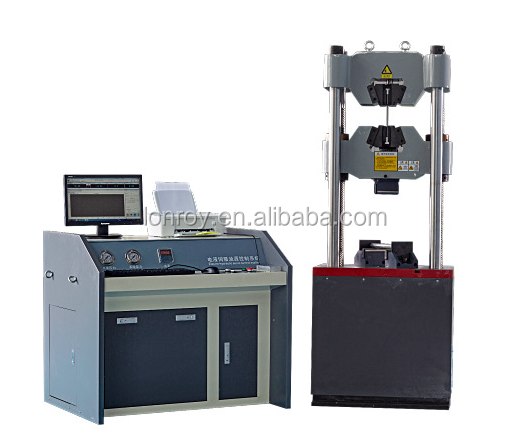

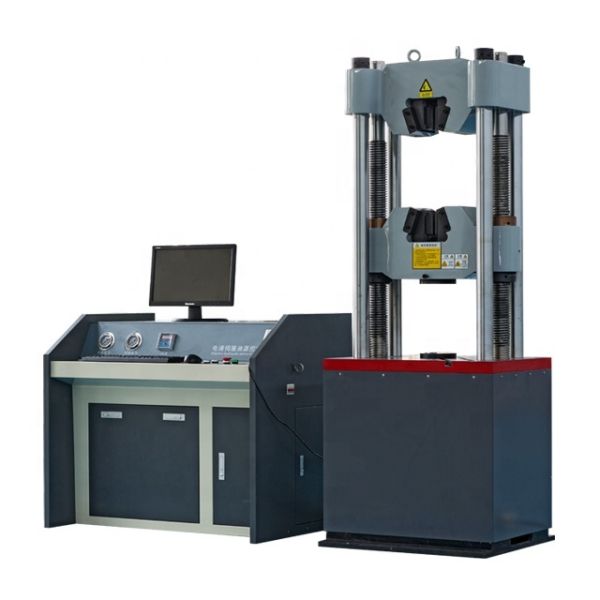

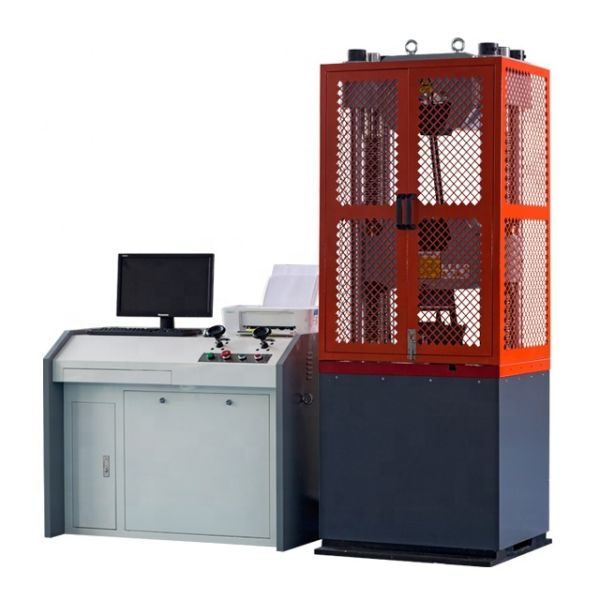

WAW-600 Hydraulic Servo Hydraulic Tensile Testing Machine

WAW-600 microcomputer-controlled electro-hydraulic servo-hydraulic universal testing machine main machine adopts the structure of oil cylinder down type main machine, mainly used for the mechanical properties test of metal materials, non-metal materials, product parts, components, structural parts, standard parts and so on.
This series of testing machine can also do the material stretching, compression and bending test under the environment if it is equipped with an environmental device. For example high temperature tensile, low temperature tensile, compression and other tests.

WAW-600 Hydraulic Servo Hydraulic Tensile Testing Machine

Specification

Max Load

600KN

Test Error

≤1%

Test Range

Max Load 2%~100%

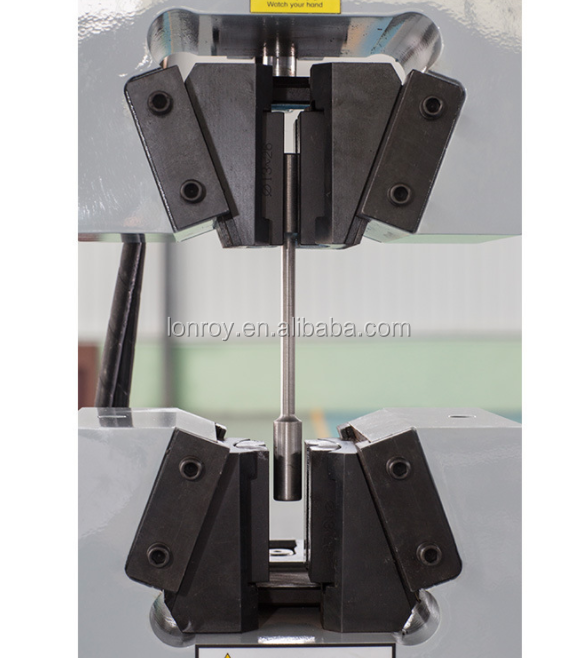

Clamping Method

Hydraulic Clamping

Diameter for Round

Φ13~Φ60 mm

Thickness for Flat

0~40mm

Width for Flat

80 mm

Max Tensile Space

650 mm

Max Compression Space

600 mm

Control Cabinet Size

1100(L)×620(W)×850(H) mm

Host Size

900(L)×750(W)×2300(H) mm

Power

2.3kw

Host weight

5600 kg

The clear spacing of columns

580 mm

Compression Plate Size

Φ205 mm

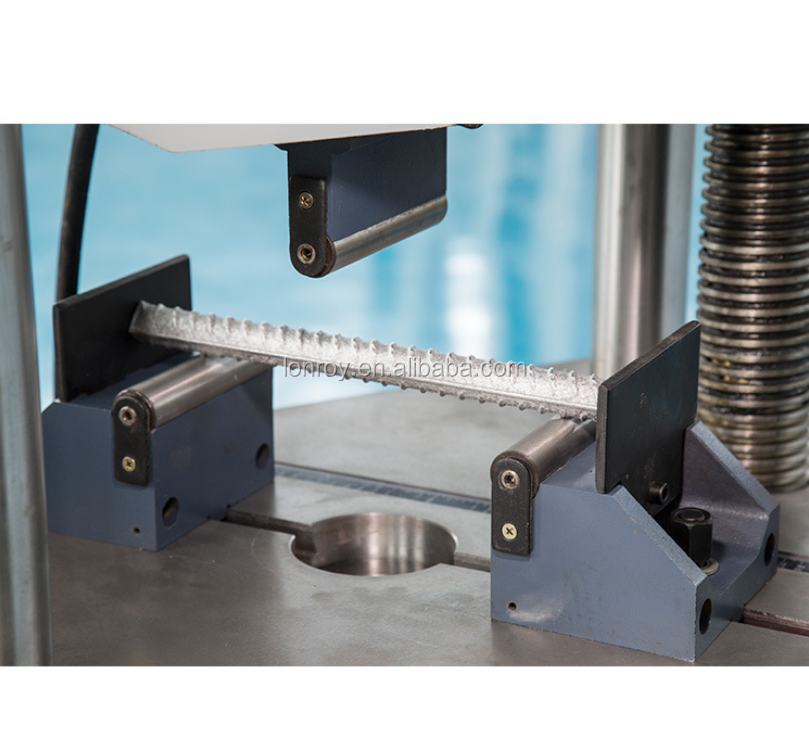

Span for Roller

450 mm

Roller Width

140 mm

Allowable Bending Length

100 mm

Max Piston Stroke

200 mm

Max Piston Speed

about 80 mm/min

Test Space Adjust Speed

about 150 mm/min
