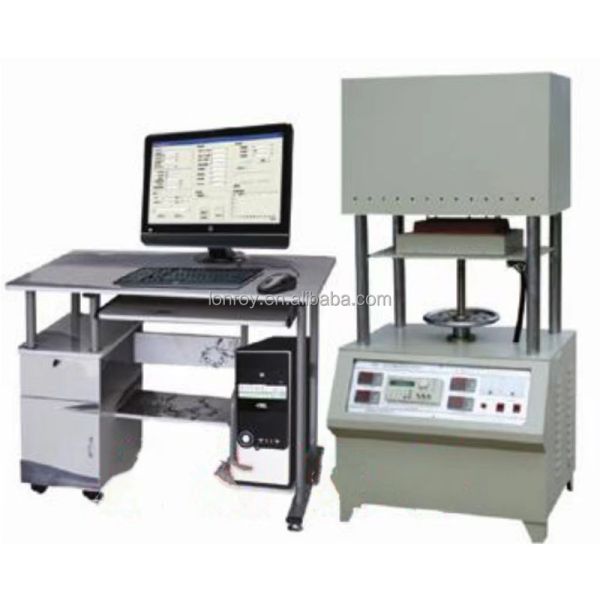

DRX-II High Temperature Thermal Conductivity Measuring Instrument Hot-wire Method Thermal Conductivity Tester
DRX-II High Temperature Thermal Conductivity Measuring Instrument Hot-wire Method Thermal Conductivity Tester
DRX-II High Temperature Thermal Conductivity Measuring Instrument Hot-wire Method Thermal Conductivity Tester
DRX-II High Temperature Thermal Conductivity Measuring Instrument Hot-wire Method Thermal Conductivity Tester
DRX-II High Temperature Thermal Conductivity Measuring Instrument Hot-wire Method Thermal Conductivity Tester
DRX-II High Temperature Thermal Conductivity Measuring Instrument Hot-wire Method Thermal Conductivity Tester
DRX-II High Temperature Thermal Conductivity Measuring Instrument Hot-wire Method Thermal Conductivity Tester
DRX-II High Temperature Thermal Conductivity Measuring Instrument Hot-wire Method Thermal Conductivity Tester
DRX-II High Temperature Thermal Conductivity Measuring Instrument Hot-wire Method Thermal Conductivity Tester
DRX-II High Temperature Thermal Conductivity Measuring Instrument Hot-wire Method Thermal Conductivity Tester
DRX-II High Temperature Thermal Conductivity Measuring Instrument Hot-wire Method Thermal Conductivity Tester
DRX-II High Temperature Thermal Conductivity Measuring Instrument Hot-wire Method Thermal Conductivity Tester
Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
±5%
Brand Name :
lonroy
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
---
Protection Class :
IP57
Voltage :
220 V
warranty :
1 Year
Product name :
High temperature thermal conductivity measuring instrument
Power supply :
220V, 50HZ
accuracy :
better than 3%
thermal conductivity test range :
1.0 ~ 500W/m.K
MOQ :
1
Description
Product Description

DRX-II High temperature thermal conductivity measuring instrument hot-wire method thermal conductivity tester
1.use
The thermal conductivity tester is mainly used to measure the thermal conductivity between 0.001-25W/M.K, the temperature in 1250,1400,1600ºC of the material, including shaped heat insulation refractory products, magnesium oxide and alumina bricks, ceramics and other non-metallic materials, the test principle using parallel hot wire method. It can be used to measure the thermal conductivity, thermal diffusivity and hot melt of various types of materials, suitable for sample types: solid, powder, granular materials.
In accordance with GB5990 "fixed heat insulation refractory product thermal conductivity test method (hot line method)". GB/T 10297 "Determination of thermal conductivity of non-metallic solid materials (hot wire method)", GB/T 17106 "test method of thermal conductivity of thermal resistant materials (parallel hot wire method)". The instrument is equipped with a computer system to greatly simplify the operation, fast and accurate.

DRX-II High temperature thermal conductivity measuring instrument hot-wire method thermal conductivity tester

2.Product Parameter

thermal conductivity test range
 1.0 ~ 500W/m.K
accuracy better than 3%
power supply
 220V, 50HZ
sample size requirements
 rod sample: 3 ~ 5×220(mm)
Filament sample: 1 ~ 3×20-45(mm)
Test the experimental temperature under controllable state, and the maximum temperature of The electric furnace is 1350ºC
The heating power can be adjusted ±1%.
Vacuum and protective atmosphere can be filled.
To achieve computer automatic testing, automatic temperature control, to achieve data printing output
DRX-II High Temperature Thermal Conductivity Measuring Instrument Hot-wire Method Thermal Conductivity Tester
