Specifications
Type :
Testing Machine
Accuracy :
---
Brand Name :
lonroy
Place of Origin :
Guangdong, China
Application :
Laboratory Testing
customized support :
OEM, ODM, OBM
power :
---
Protection Class :
IP57
Voltage :
220 V
warranty :
1 Year
Logo/graphic design :
Hot Stamping
Product name :
sheet film horizontal direction thermal conductivity tester
Power supply :
AC220V±10%; 50HZ; 500W
Number of sample groups :
1 ~ 2 pieces
Power :
Electronic
MOQ :
1
Description
Product Description

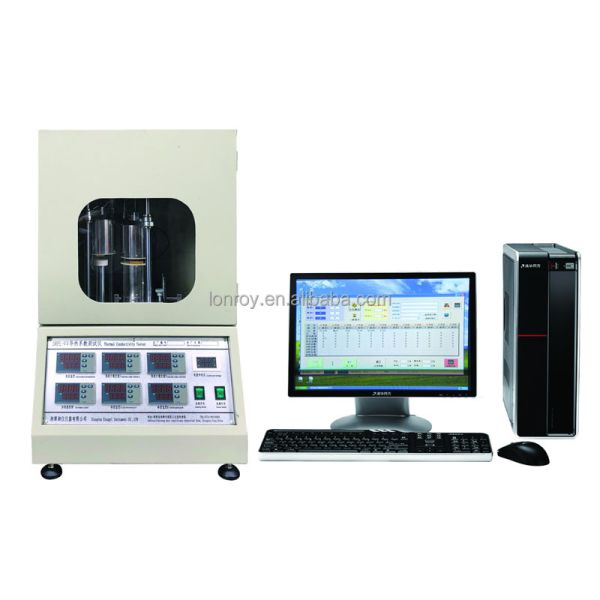

DRPL-V high temperature/high precision material thermal conductivity tester plate heat flow meter ASTM C518
1.use
It is mainly used in the research, development and quality control of materials with thermal conductivity ranging from 0.005 to 500W/m.K, such as aerogel plate, vacuum glass, graphite paper, copper foil and other very thin materials with horizontal thermal conductivity.

DRPL-V high temperature/high precision material thermal conductivity tester plate heat flow meter ASTM C518

2.Product Parameter

thermal conductivity range
 0.005 ~ 500W/m.K
sample range (50 ~ 150) ×(25) ×(0.001 ~ 5)mm length * width * thickness
Pressure loading method
 manual pressure, thickness measurement method: manual;
cold plate with precision constant temperature water tank, temperature control range
 5 ~ 70ºC, temperature control accuracy 0.1ºC, temperature meter accuracy: 0.1ºC.
hot plate heating mode 220V electric heating; Temperature control range: room temperature ~ 150ºC
heat flow meter model
 imported high-precision heat flow sensor
Number of sample groups
 1 ~ 2 pieces
Repeatability the deviation of two measurements is <±3%
voltage, frequency, power
 AC220V±10%; 50HZ; 500W
