Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
±5%
Brand Name :
LONROY
Place of Origin :
Guangdong, China
customized support :
OEM, ODM, OBM
power :
---
Protection Class :
IP55
Voltage :
220 V
warranty :
1 Year
Instrument weight :
10kg
Overall dimensions :
200 * 330 * 380 (mm)
Environmental humidity :
85% RH or less
Power supply :
AC (220±22) V (50±5) Hz
MOQ :
1
Price :
$1,700
Description

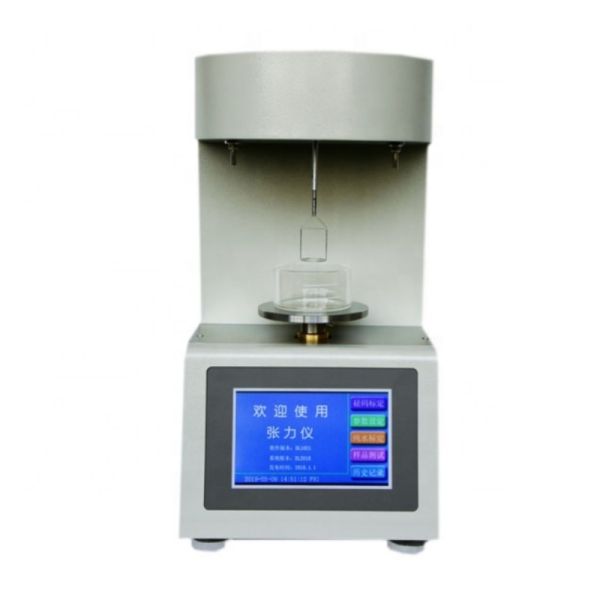

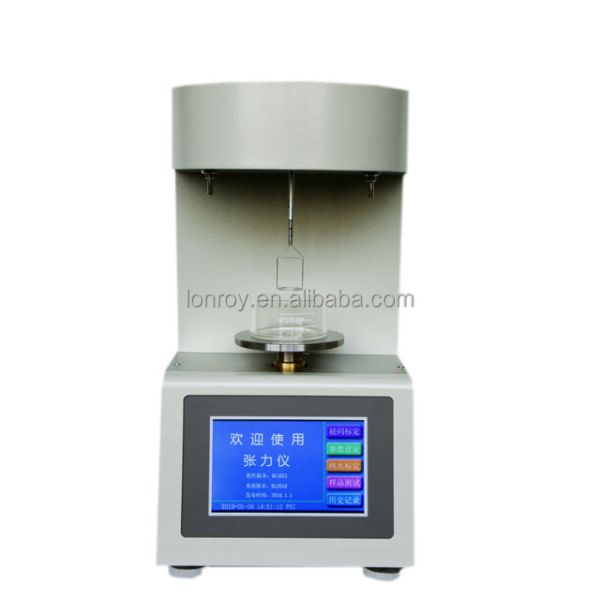

LR-562 Interface Tension Tester

ASTM D971 Interface Tension Tester Oil Surface Tension Meter Tension Meter Petroleum Interfacial Tension Test Equipment

Product introduction

Implement standard GB/T6541-86. The surface tension of various liquids and the interfacial tension between mineral oil and water were measured by ring method under non-equilibrium condition. It can be widely used in petroleum, chemical, metallurgy, electric power, transportation, commodity inspection and scientific research departments.

Functional features

v adopts high-speed CPU and high precision AD, unique hardware circuit design, with high reliability and high measurement accuracy, can store 500 experimental data at the same time;

v 5-inch industrial color touch screen;

v Full Chinese operation interface, intuitive display, English optional;

v unique weight calibration, only need to calibrate 2 points;

v Pure water calibration has loose requirements for water quality;

v accurate and repeatable measurement;

v Optional built-in printer;

Equipped with RC232 interface, can be connected with the computer to facilitate processing of test data

Technical parameters

Display mode

5 inch color touch screen

Power supply

AC (220±22) V (50±5) Hz

Range of measurement

2-100 mn/m and 2-200 mn/m

The environment temperature

Room temperature ~ 45 ℃

The resolution of the

0.1 mN/m

Environmental humidity

85% RH or less

precision

0.1 mN/m

Overall dimensions

200 * 330 * 380 (mm)

Work rate

100W

Instrument weight

10kg

standard configuration

Main machine: 1 platinum ring: 1 tension cup: 2 calibration weights (2 grams) : 1 set

Hanging parts: 1 set of power cord: 1 Manual: 1 This certificate: 1 c
