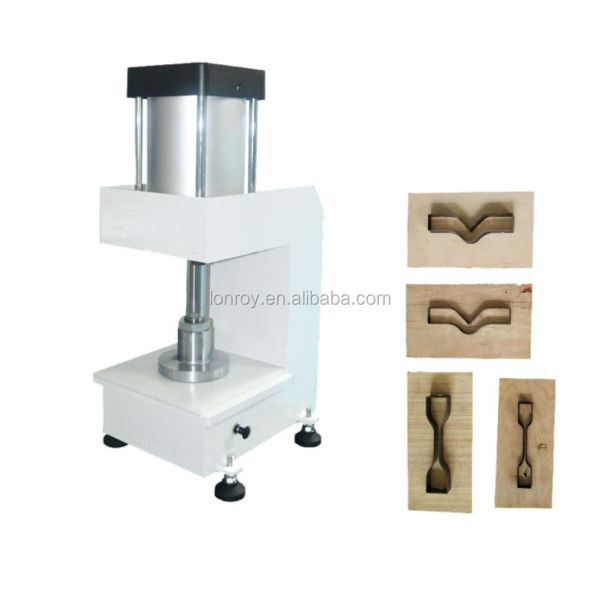

Dumbbell Pneumatic Sample Cutter/Dumbbell Rubber Die Cutter /Plastic Rubber Sample Cutter
Dumbbell Pneumatic Sample Cutter/Dumbbell Rubber Die Cutter /Plastic Rubber Sample Cutter
Dumbbell Pneumatic Sample Cutter/Dumbbell Rubber Die Cutter /Plastic Rubber Sample Cutter
Dumbbell Pneumatic Sample Cutter/Dumbbell Rubber Die Cutter /Plastic Rubber Sample Cutter
Dumbbell Pneumatic Sample Cutter/Dumbbell Rubber Die Cutter /Plastic Rubber Sample Cutter
Dumbbell Pneumatic Sample Cutter/Dumbbell Rubber Die Cutter /Plastic Rubber Sample Cutter
Dumbbell Pneumatic Sample Cutter/Dumbbell Rubber Die Cutter /Plastic Rubber Sample Cutter
Dumbbell Pneumatic Sample Cutter/Dumbbell Rubber Die Cutter /Plastic Rubber Sample Cutter
Dumbbell Pneumatic Sample Cutter/Dumbbell Rubber Die Cutter /Plastic Rubber Sample Cutter
Dumbbell Pneumatic Sample Cutter/Dumbbell Rubber Die Cutter /Plastic Rubber Sample Cutter
Dumbbell Pneumatic Sample Cutter/Dumbbell Rubber Die Cutter /Plastic Rubber Sample Cutter
Dumbbell Pneumatic Sample Cutter/Dumbbell Rubber Die Cutter /Plastic Rubber Sample Cutter
Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
±1.5%
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Lab Testing, Laboratory Testing
customized support :
OEM, ODM, OBM
power :
---
Protection Class :
IP66
Voltage :
220 V
warranty :
1 Year
Load :
1000KG
The pressure plate diameter :
D 120 mm
Effective height :
100mm
Bottom plate :
230X250mm
MOQ :
1
Description

Dumbbell Pneumatic Sample Cutter/Dumbbell rubber die cutter /Plastic Rubber Sample Cutter

Overview:

This pneumatic slicer is mainly used for rubber standard test pieces. It should be combined with standard cutting die to connect air source above 4KG.

Dumbbell Pneumatic Sample Cutter/Dumbbell rubber die cutter /Plastic Rubber Sample Cutter

Machine specifications:

Load

1000KG

The pressure plate diameter

D 120 mm

Bottom plate

230X250mm

Effective height

100mm

Machine size

280X330X430mm

Machine weight

about 60 kg

Dumbbell Pneumatic Sample Cutter/Dumbbell rubber die cutter /Plastic Rubber Sample Cutter

Operation

1. Put the slicer on the plane, adjust the four pins to make it smooth, and put the cutting adhesive.

2. Open the air source, adjust the valve switch of the oil and water separator behind, and adjust the barometer to be at least 4KG

3. Put PU adhesive on the film, put the cutting adhesive on the film, put the cutting die on the film, then press the red button switch with both hands at the same time (for safety, both hands must be pressed at the same time), press the pressure plate down to the cutting die, stay for a few seconds, let the rubber fully cut off, and then let go, take out the sample.

4. Please turn off the air source after using up.
