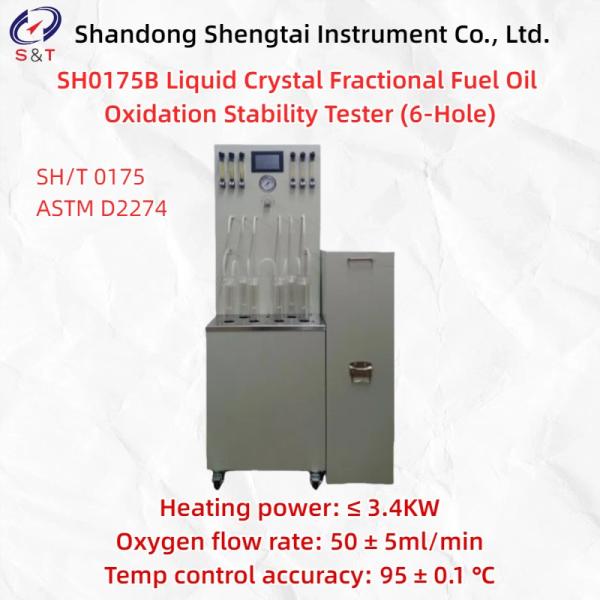

SH0175B Liquid Crystal Fractional Fuel Oil Oxidation Stability Tester (6-Hole)

The SH0175B Liquid Crystal Fractional Fuel Oil Oxidation Stability Tester is designed and manufactured in accordance with the requirements specified in the industry standards of the People's Republic of China, SH/T 0175 "Determination of Fractional Fuel Oil Oxidation Stability (Accelerated Method)" and ASTM D2274. Applicable to the method specified in SH/T 0175 standard for determining the inherent stability of middle distillate fuel oil using accelerated oxidation method.

This instrument is an automated device used by oil extraction, production, and usage units, as well as relevant universities, research departments, and others to test the oxidation stability of distillate fuel oil.

Performance characteristics

● The instrument is suitable for determining the oxidation stability of distillate fuel oil (diesel).

● When the instrument is controlled by a microcontroller for temperature control, it automatically controls the temperature, timing, alarms, and displays the temperature of the sample in real time.

● 7-inch color LCD touch screen, fully Chinese operation interface, real-time display of various parameters.

● The oxygen flow rate is controlled and adjustable separately, and the low-temperature circulating water system of the inlet compressor automatically completes the oxidation and cooling processes in one go.

● Equipped with a light shielding device to ensure the sample is protected from light during the oxidation process.

● The heating bath is made of metal bath material, without the need for bath liquid, making the testing process more convenient and environmentally friendly.

● Equipped with a concealed box and filtering device.

Technical Index:

● Power supply: AC220V ± 10% 50Hz

● Heating power: ≤ 3.4KW

● Temperature control accuracy: 95 ± 0.1 ℃

● Oxygen flow rate: 50 ± 5ml/min

● Number of oxidation tubes: 6 sets

● Dimensions: 520 * 420 * 510 mm

● Weight: 35kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
