Specifications
Brand Name :
Shandong Shengtai Instrument Co.,Ltd
Model Number :
SH6531
Certification :
GB/T 6531 ASTM D473
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10000 sets / year
Delivery Time :
7 - 15 work days
Packaging Details :
wooden crate
Heating power :
300W * 2
Whole power :
No more than 600W
Instrument size :
330*360*145mm
Instrument weight :
6.2kg without flask
Heating control :
bidirectional silicon controlled stepless voltage regulation control
Working power supply :
AC220V±10% 50Hz
Description

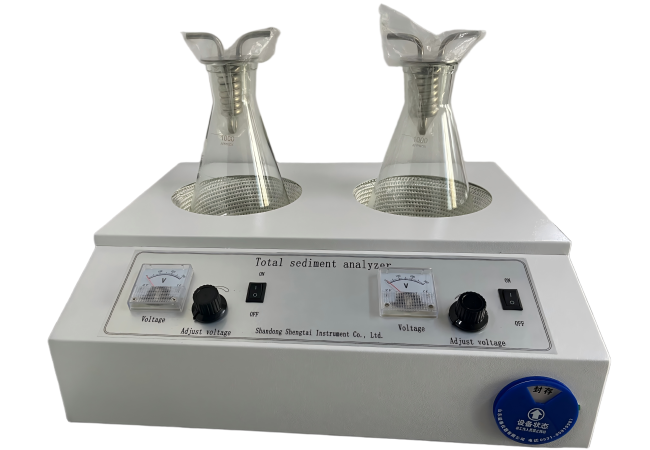

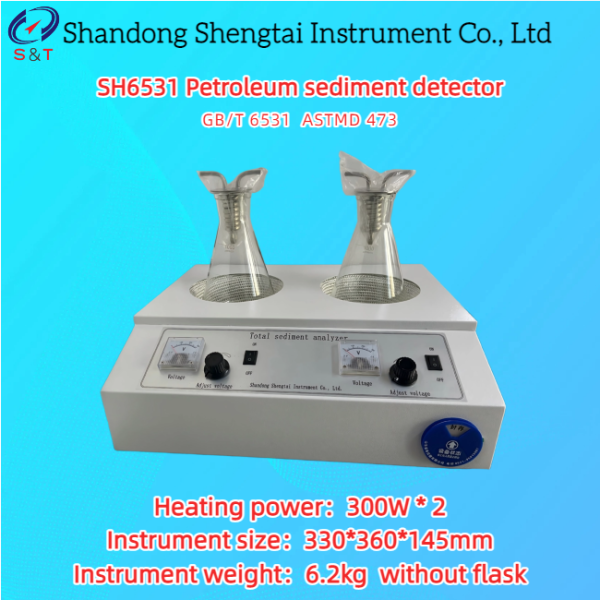

SH6531 Petroleum sediment detector

SH6531 Petroleum Sediment tester is according to the People's Republic of China standard GB/T 6531 "Determination of precipitate in crude oil and fuel oil" and ASTMD 473 , according to GB/T6531 standard to determine the content of precipitate in crude oil and fuel oil.

This instrument is a double structure, can carry out two samples at the same time test.

ASTM D473 Petroleum Product Oil Sediment Tester

ASTM D473 Sediment Content Testing Equipment Residual Fuel Oils Total Sediment Tester

Main technical indicators

Working power supply AC220V±10% 50Hz
Heating power 300W * 2
Heating control bidirectional silicon controlled stepless voltage regulation control
Ambient temp ≤35℃
Relative humidity ≤85%
Whole power No more than 600W
Instrument size 330*360*145mm
Instrument weight 6.2kg without flask
Package size 520*420*380mm
Package weight 14.22kg wooden

Petroleum Sediment Detector Heating 300W * 2 Extraction Method Dual Type ASTM D473

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Packing list

Number Name Quantity Unit Note
1 Host 1 Unit
2 1000ml conical flask 2 Piece Glass
3 Condenser 2 Piece Metal
4 Metal wire bracket 2 Piece Stainless steel
5 Extraction sleeve 2 Piece Ceramics
6 Power cord 1 Root
7 Instruction manual 1 Copy
8 Certificate of Conformity Warranty Card 1 Copy

Petroleum Sediment Detector Heating 300W * 2 Extraction Method Dual Type ASTM D473

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
