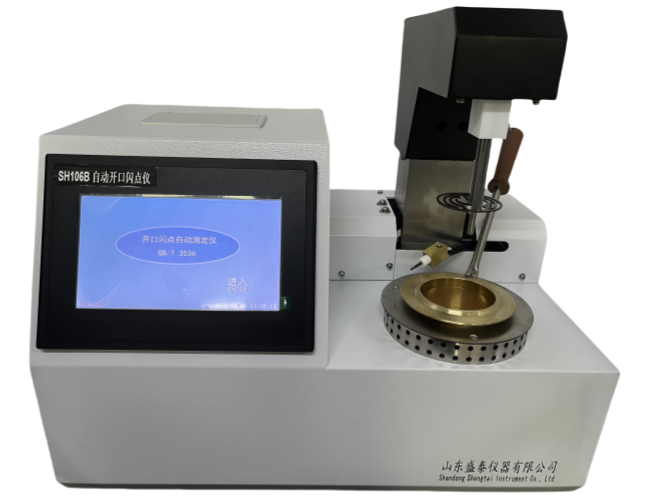

SH106B Automatic open flash point tester

The SH106B fully automatic open flash point tester is designed and manufactured in accordance with the requirements specified in the Chinese standards GB/T 3536 and GB/T 267 "Determination of Flash Point and Fire Point of Petroleum Products (Cleveland Open Cup Method)". It also supports the determination of flash point of plasticizers in accordance with GB/T1671-2008 ASTMD92 and the "Safety Testing and Inspection Specification for Coal Mine Products - Air Compressors" MT/T1203-2023. ISO 2592

The open flash point is mainly used to measure gasoline engine lubricating oil, diesel engine lubricating oil, compressor oil, and refrigerationOil, turbine oil, Gear oil, machine oil, etc

The principle of open flash point measurement is to load the sample into the test cup to the specified mark. Firstly, increase the temperature of the sample, then slowly raise the temperature, and as it approaches the flash point, increase the temperature at a constant rate. At the specified temperature interval, a small test flame is passed horizontally through the test cup, and the lowest temperature at which the vapor on the liquid surface is ignited by the test flame is used as the measurement result of the open flash point.

Instrument features

● The instrument adopts color LCD large screen display, full Chinese man-machine dialogue interface, no identification keyboard, for the parameters such as pre-value temperature, sample label, atmospheric pressure, test date, with prompt menu, oriented input function.

● Automatically correct the influence of atmospheric pressure on the test and calculate the correction value.

● Differential detection, automatic correction of system deviation.

● Scanning, detection and printing data are automatically completed, and the test arm automatically rises and falls.

● Electronic ignition and forced air cooling

● Without automatic ignition of air source, improve the safety of the test

Main technical indexes and parameters

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
