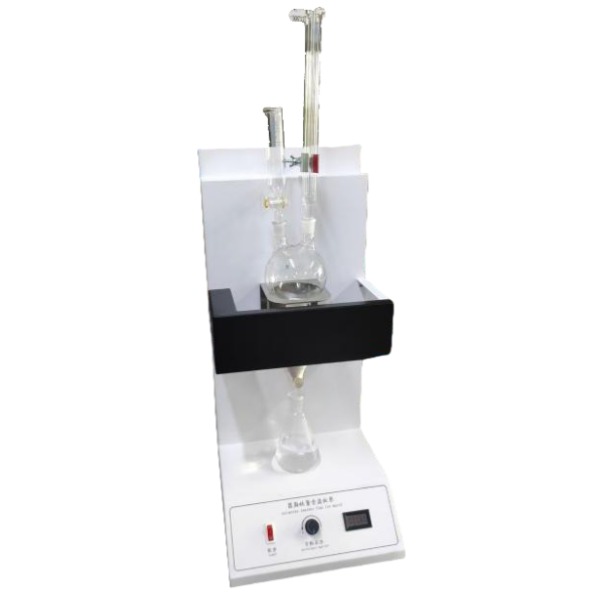

SH6532 Crude oil salt content analyzer extractor

The crude oil salt content analyzer extractor is suitable for measuring crude oil with salt content (mass fraction) ranging from 0.0005% to 0.15%, as well as heavy petroleum products such as residual oil and fuel oil. It can also be used to determine the contamination of used turbine oil and marine fuel oil by seawater. When the required precision does not exceed the range specified in this method, it can also be used for other products.

The SH6532 crude oil salt content analyzer extractor is designed and manufactured in accordance with the requirements specified in the Chinese standard GB/T6532 "Determination of salt content in crude oil - Potentiometric titration method".

Main structure of the instrument

● Extractor: consisting of a flask and a heating part, with a flask volume of 500ml; The heating part is composed of electric heating wires wound around the lower end.

● Column shaped drip funnel: used to add reagents such as hot toluene, anhydrous ethanol, C₃H₆O, and perform quantitative separation.

● Condenser: It has a condensing effect on the distilled gas.

● Temperature adjustment knob: used to heat the test solution that needs to be heated.

● Separatory funnel piston: the control piston of the extractor to discharge the solution.

● Triangular flask: A ground triangular flask used to receive the solution discharged from the flask.

● Aviation plug: Extractor heating wire working power plug

Main technical parameters and indicators

Note: The customer shall provide their own magnetic stirrer and potentiometric titrator

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Structural characteristics

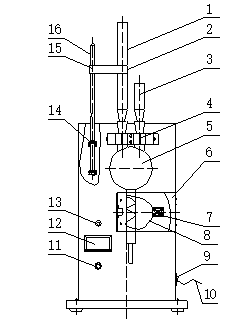

The instrument is mainly composed of an extractor (extractor) flask, a heating coil, a protective cover, a condenser, a cylindrical separatory funnel (drip funnel), a clamping device, a digital display adjustable temperature control board, a pole support, a pole, a double top wire, a universal clamp, a conical flask, etc. The structure is shown in the left figure:

1. Condenser 9. power switch

2. Universal clamp 10. power cord

3. Dropping funnel 11. voltage adjustment knob

4. Clamping device 12. Digital display voltmeter

5. Extractor flask 13. power indicator light

6. Protective cover 14. upright bracket

7. Aerial plug 15. double top wire

8. Heating coil 16. vertical pole

Packing list

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
