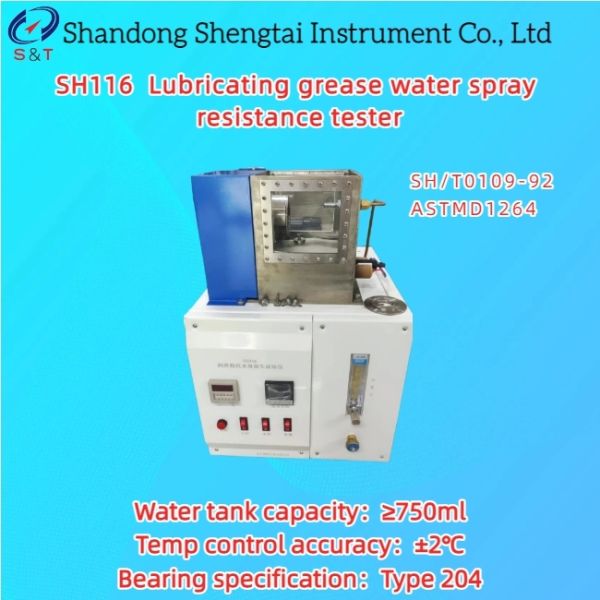

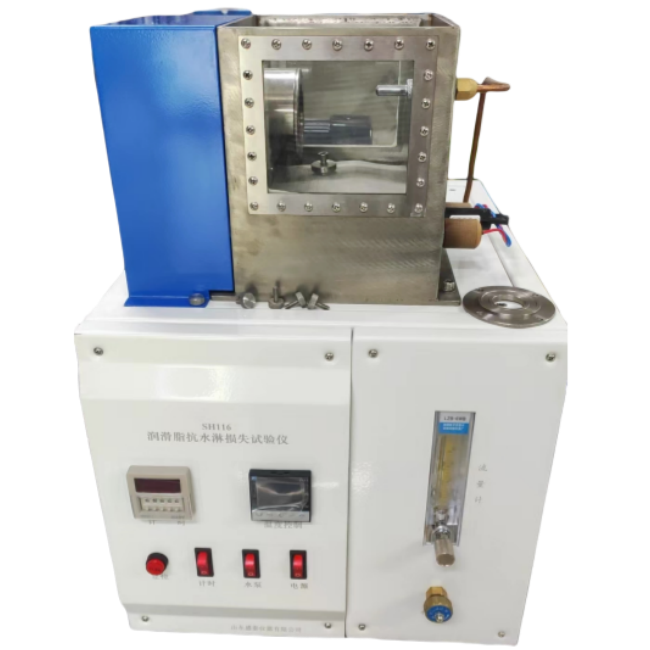

SH116 Lubricating grease water spray resistance tester

The SH116 lubricating grease anti water spray performance tester is used to measure the resistance of lubricating grease to water spray according to the standards of SH/T 0109-2004 and ASTM D1264 "Determination of Lubricating Greases Anti Water Spray Performance". It is a new product used to evaluate the resistance of lubricating grease to water flushing out of bearings under specified experimental conditions at 38℃ and 79℃.

Water spray resistance of lubricating grease: water spray resistance of lubricating grease is the ability of lubricating grease to resist water impact in running bearing, while water spray resistance of lubricating grease is the ability of lubricating grease to resist water spray impact on flat plate

Performance characteristics

● The water bath temp through the PT100 sensor (resistance temperature measurement package) input to the temperature controller, temperature controller internal operation circuit processing, obtain a control signal, the control signal output, so as to complete the heating control

● The amount of water jet can be directly controlled by circulating pump, large flow valve, nozzle, etc

● Using electric heating rod heating mode, heating speed is fast

● According to the standard to choose ball bearings, the timer can be accurate to 0.1S

Technical parameters:

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
