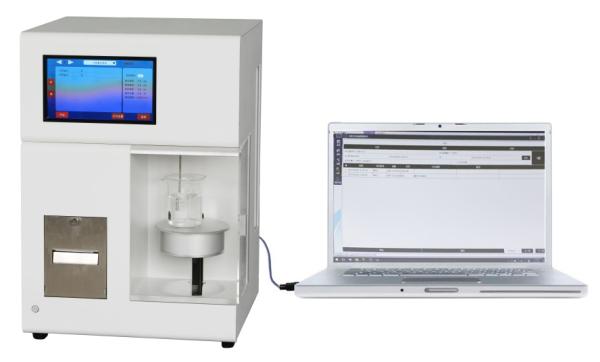

DP-GF-RS Particle Analyzer

Performance features:

Ø Meets the insoluble particle detection requirements of the Chinese Pharmacopoeia and the United States Pharmacopoeia, and can directly detect the size and quantity of insoluble particles in injections, sterile powders and infusion equipment

Ø There is a special test program for fat emulsion injection, which meets the requirements of the "Chinese Pharmacopoeia" and "Drug Standards of the Ministry of Health of the People's Republic of China" for fat emulsion injection. The emulsion injection is measured by the photoresist method and the test results are given directly.

Ø High-performance laser light source and light energy compensation circuit ensure the testing accuracy of various colorless and colored clear samples

Ø The sampling slit and pipeline are made of imported 316L and PTFE materials, which can directly detect weak acid and alkali corrosive special solutions such as organic solvents and oil matrices.

Ø High-performance processor and nearly 10,000 counting channels enable high-precision data collection

Ø Fully automatic calibration to improve calibration efficiency and ensure accuracy and reliability of test data

Ø The instrument can be calibrated and calibrated according to CHP, USP, ISO21510 and other standards, and can meet the import and export testing requirements of pharmaceuticals.

Ø The audit trail function ensures the integrity of electronic data, and equipment usage information and current detection data can be retrieved at any time.

Ø Multi-level authority management ensures data security and meets the requirements for data audit tracking in computerized systems.

Ø Using Android operating system, humanized interactive experience, simple operation

Ø Built-in database mass storage, with data statistical analysis function

Ø RS232 and USB interface can be connected to an external computer to store test results and facilitate data classification and retrieval.

Technical Parameters:

1. Channel settings: Sixty-four particle size channels, thousands of particle sizes can be customized, accuracy 0.1µm

2. Particle size range: 1~500µm (sensors can be selected in sections)

3. Counting range: 0~9999999 grains

4. Injection volume: 0.2～1000ml (accuracy 0.1ml)

5. Injection volume accuracy: <±0.5%

6. Injection speed: 5～80ml/min

7. Counting accuracy: <specified value ±5%

8. Channel resolution: >95%

9. Relative standard deviation: RSD<1.5% (standard particles ≥1000 particles/ml)

10. Limit detection concentration: 18000 capsules/ml

11. Stirring speed: 0~1000 rpm

12. Working temperature: 10～40℃

13. Power supply: 100-240VAC; 50/60Hz; <80W

14. Data output: dot matrix printer, RS232 interface, USB storage interface
