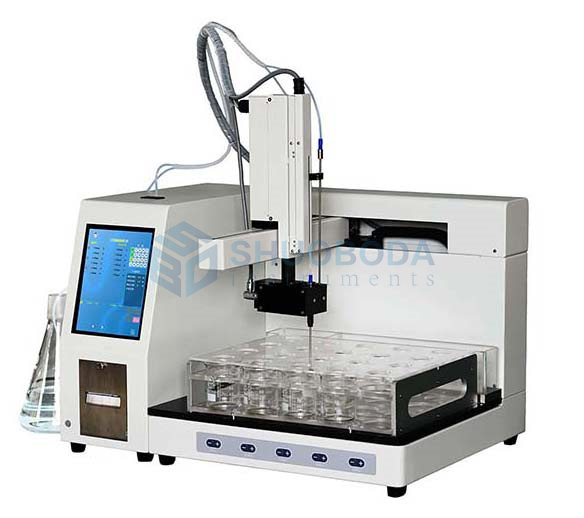

DP-GF-9D Particle Analyzer
DP-GF-9D Particle Analyzer
DP-GF-9D Particle Analyzer
DP-GF-9D Particle Analyzer
Specifications
Particle size range :
1～500µm
Counting range :
0～9999999 grains
Injection volume :
0.2～6500ml (accuracy 0.1ml)
Injection volume accuracy :
<±0.5%
Injection speed :
5～80ml/min
Counting accuracy :
<±5% of specified value
Brand Name :
SHUOBODA
Model Number :
DP-GF-9D
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
Description
DP-GF-9D Particle Analyzer
Performance Features
  • Complies with Chinese Pharmacopoeia, USP, BP, EP, JP standards and GB 8368 infusion set requirements
  • High-performance laser light source with energy compensation for accurate testing of clear and colored samples
  • 316L stainless steel and PTFE sampling components for direct testing of corrosive solutions including organic solvents
  • Precision 3D robotic arm enables fully automated multi-sample testing with intelligent operation
  • Dual-channel sampling system provides continuous sampling with high precision and speed
  • High-performance processor with nearly 10,000 counting channels for precise data collection
  • Fully automatic calibration ensures reliable test data and improved efficiency
  • Calibration compliant with Chinese Pharmacopoeia, USP, ISO21501 standards for international testing requirements
  • Automatic cleaning function supports fully automated testing workflow
  • Optional dilution function adapts to various testing requirements
  • Permission management system ensures data security
  • Optional scanner gun for automatic sample number identification
Technical Parameters
Parameter Specification
Channel Settings 64 simultaneous particle size channels, customizable thousands of sizes with 0.01µm accuracy
Particle Size Range 1-500µm (segment selection)
Counting Range 0-9,999,999 particles
Injection Volume 0.2-6500ml (0.1ml accuracy)
Injection Volume Accuracy <±0.5%
Injection Speed 5-80ml/min
Counting Accuracy <±5% of specified value
Channel Resolution >95%
Relative Standard Deviation RSD<1.5% (standard particles ≥1000 particles/ml)
Limit Detection Concentration 18,000 capsules/ml
Test Quantity 1-20 cups
Stirring Speed 0-1000 rpm, adjustable in sections
Working Temperature 10-40℃
Power Supply 100-240VAC; 50/60Hz; <80W
Data Output Dot matrix printer, RS232 interface, USB storage interface
Product Gallery
DP-GF-9D Particle Analyzer DP-GF-9D Particle Analyzer DP-GF-9D Particle Analyzer
