DND-1 Gelatin Brinell viscometer

Product introduction

DND-1 Brinell viscometer adopts industrial grade high resolution color touch screen, advanced architecture such as 32bit 400MHz CPU, temperature display accuracy is improved from 0.1°C to 0.01 °C, timing display resolution is increased from 0.1 second to 0.01 second, measurement range Covers all gelatin and adds the ability to interactively calibrate viscosity tube parameters for the first time.

Scope of application:

It is suitable for the viscosity performance test of all gelatin such as edible gelatin, medicinal gelatin and industrial gelatin.

System structure and characteristics of DND-1 Brinell viscometer

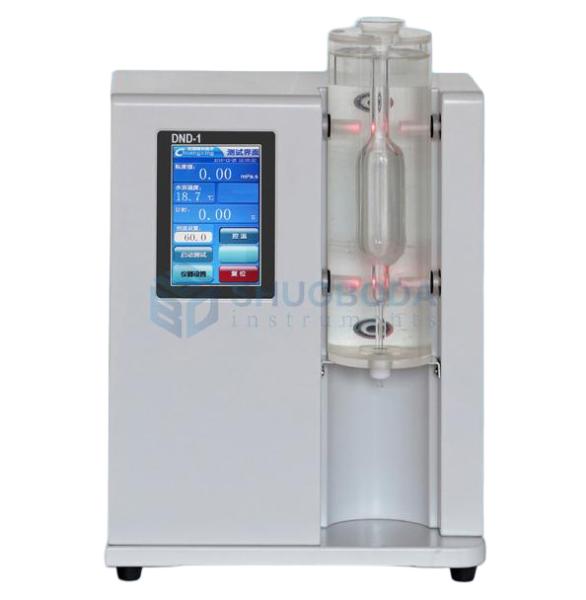

DND-1 Brinell viscometer adopts high-performance embedded intelligent touch screen, which is convenient and quick to operate, precise in control, friendly in human-computer interaction interface, and users can enjoy intelligent operation according to the screen prompts. (See the picture below)

Main technical indicators of the DND-1 Brinell viscometer

Viscosity measurement range: 0-999.99 mPa.s

Viscosity value display resolution: 0.01 mPa.s

Instrument measurement accuracy: ±0.02 mPa.s

Time measurement range: 0-5000 seconds

Time measurement accuracy: ≤0.01 seconds

Time display resolution: milliseconds

Water bath control temperature: 60°C by default

Water bath temperature control accuracy: ±0.1°C

Water bath temperature display resolution: 0.01°C

Viscometer volume: 100 ml

Viscometer volume error: ±0.5 ml

Measuring device longitudinal center moment: 152 mm ± 0.5 mm

Working power supply: AC 220V±10% 50Hz ≤500W

Environmental conditions: room temperature 10 ~ 30 ° C humidity <75%

Dimensions: 365 × 215 × 535mm (length * width * height)

Machine weight: about 12 kg
