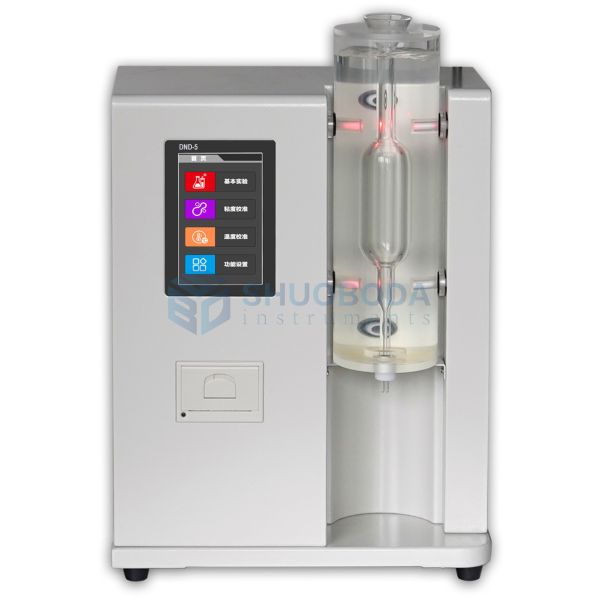

DND-5 Gelatin Brinell viscometer

Product introduction:

The DND-5 Blair viscometer is a professional model suitable for high-precision measurement of Blair viscosity (convertible Engler viscosity). DND-5 adopts an industrial-grade high-definition color touch screen and a 32-bit 400MHz central processor. It provides independent monitoring and real-time display of the water bath temperature and the temperature of the measured sample, provides interactive temperature accuracy measurement and calibration methods, and provides interactive viscosity tubes. Measurement and calibration methods with volumetric accuracy, providing arbitrary temperature settings and a constant environment, supporting viscosity measurements of samples with different specific gravity at different temperatures, and providing data comparison switching between Blair viscosity and kinematic viscosity, and Bradford viscosity and Engler viscosity (in switch directly on the display).

Application:

It is suitable for viscosity performance testing of all gelatins such as edible gelatin, medicinal gelatin, bone glue, industrial gelatin, and gelatin-like liquids that can submit specific gravity parameters.

Applicable standards for DND-5 Boehm viscosity tester:

"Chinese Pharmacopoeia" 2020 Edition

National Standard "Food Additive Gelatin" GB6783

National Standard "Medicinal Gelatin Hard Capsules" GB13731

Light industry standard "Edible Gelatin" QB/T4087-2010

Industry Standard "Medicinal Gelatin" QB2354

Industry standard "Industrial Gelatin" QB/T1995

Industry Standard "Bone Glue" QB/1996

Industry Standard "Photographic Gelatin" QB1997

Product advantages

The instrument is equipped with a 5-inch high-definition touch screen, interactive interface, and intelligent control

Instrument configuration system permission management: three levels, multiple users. (Login with username + password)

The instrument provides measurement data audit tracking function: (in line with current Chinese GMP certification specifications)

The instrument supports viscosity measurement of samples with different specific gravity at different temperatures, and provides a specific gravity writing function for gelatin-like liquids.

The instrument has interactive viscosity tube volume parameter self-measurement and automatic calibration functions.

The instrument has interactive temperature accuracy parameter self-measurement and automatic calibration functions;

Provides comparison and switching of data between Blair's viscosity and kinematic viscosity, Blair's viscosity and Engler's viscosity (direct switching on the display screen)

Provide both Chinese and English operating systems

The built-in micro printer can print the current measurement process and results, and can also trace and print historical measurement records and results by date or by operator query.

The DND-5PRO is equipped with dual temperature sensors for temperature control, which can measure the real-time temperature of the water bath and sample respectively.

DND-5 Boehm viscosity tester specifications:
