CRM-5 Confocal Raman Microscope CRM Raman Spectroscopy Machine
CRM-5 Confocal Raman Microscope CRM Raman Spectroscopy Machine
Specifications
Brand Name :
SHUOBODA
Model Number :
CRM-5
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
measurement method :
Qualitative/semi-quantitative testing
Laser (excitation wavelength) :
532nm (633nm, 785nm scalable)
Spectral range :
50～7000cm-1
Spectral resolution :
Better than 1.5cm-1
Wavelength accuracy :
≤±1cm-1
Sensitivity :
The fourth-order peak of silicon can be observed
Description

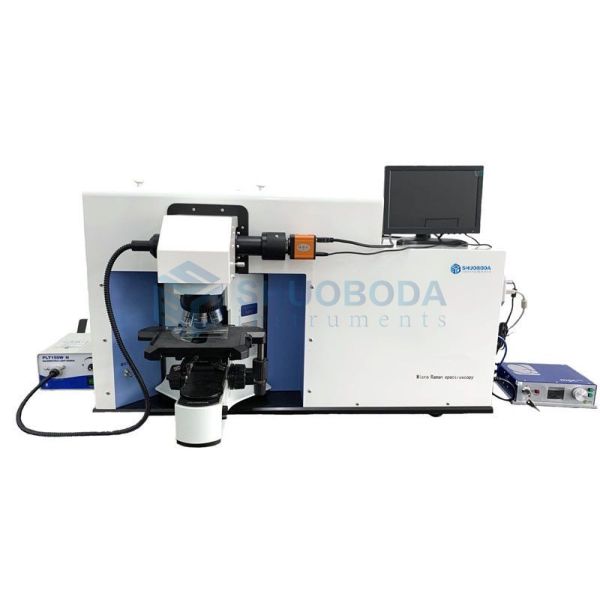

CRM-5 confocal Raman microscope (CRM)

CRM-5 Confocal Raman Microscope CRM Raman Spectroscopy Machine

Product description

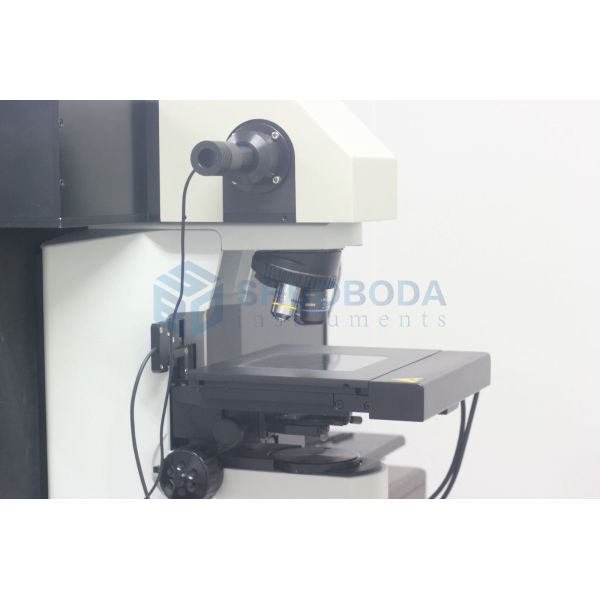

The CRM-5 confocal Raman microscope is a research-level Raman testing instrument equipped with a three-dimensional automatic platform. The true confocal microscope optical path ensures that the most detailed spectral images can be obtained quickly and accurately.

The MRS-5 model has optimized the optical path design to ensure that it has the highest sensitivity on the market, taking into account the spatial resolution to reach the diffraction limit while ensuring the high light throughput of the instrument. Combined with the self-developed software operating system, the Raman testing process is more convenient, faster and more user-friendly.

Features

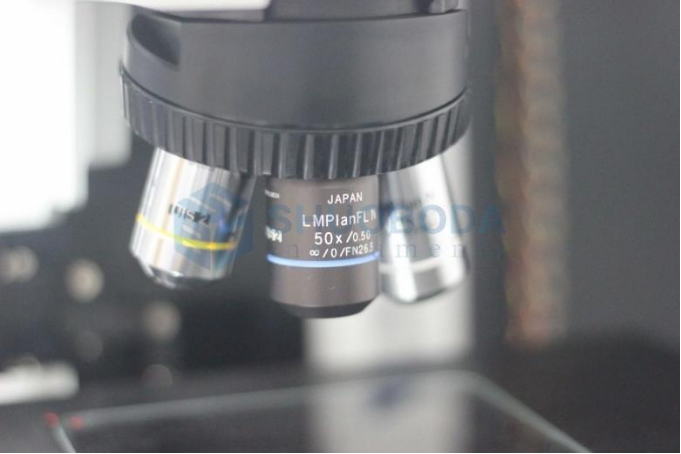

800mm focal length, high spatial and high spectral resolution

Fully automatic 3D platform enables fast automatic scanning of mapping

True confocal Raman imaging capabilities

Software controlled automatic variable pinhole

Open sample stage can meet the testing needs of samples of different shapes and volumes.

Ultra-low wave number detection

Scalable for use with a variety of other testing technologies

Wide range of applications

Low maintenance and simple to use

Function extension

Optional multi-laser, suitable for various types of samples and optimizing experimental results

Can be combined with Raman AFM and TERS (tip enhanced Raman)

Optional professional Raman database for rapid identification and analysis

CRM-5 Confocal Raman Microscope CRM Raman Spectroscopy MachineCRM-5 Confocal Raman Microscope CRM Raman Spectroscopy Machine

Technical Specifications

Model

CRM-5

measurement method

Qualitative/semi-quantitative testing

Laser (excitation wavelength)

532nm (633nm, 785nm scalable)

Spectral range

50～7000cm-1

Spectral resolution

Better than 1.5cm-1

Wavelength accuracy

≤±1cm-1

Sensitivity

The fourth-order peak of silicon can be observed

spatial resolution

X/Y axis: 0.01μm,

Z-axis: 0.002μm (related to the microscope’s fine-tuning gear reduction ratio)

CCD spectrum detector size

26.6×3.2mm

Effective Pixels

1650×200

Pixel size

16×16μm

confocal pinhole

50μm, 150μm, 200μm, 400μm
