MRS-4 Micro Raman Spectrometer 200nm - 800nm Raman Spectroscopy Machine
MRS-4 Micro Raman Spectrometer 200nm - 800nm Raman Spectroscopy Machine
Specifications
Brand Name :
SHUOBODA
Model Number :
MRS-4
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
Focal length :
300mm
Grating :
1200 pieces/mm
Wavelength range :
200~800nm
slit :
0~2mm continuously adjustable
Wavelength accuracy :
≤0.2nm
Repeatability :
≤0.2nm
excitation wavelength :
532nm
Output Power :
100mW
Description

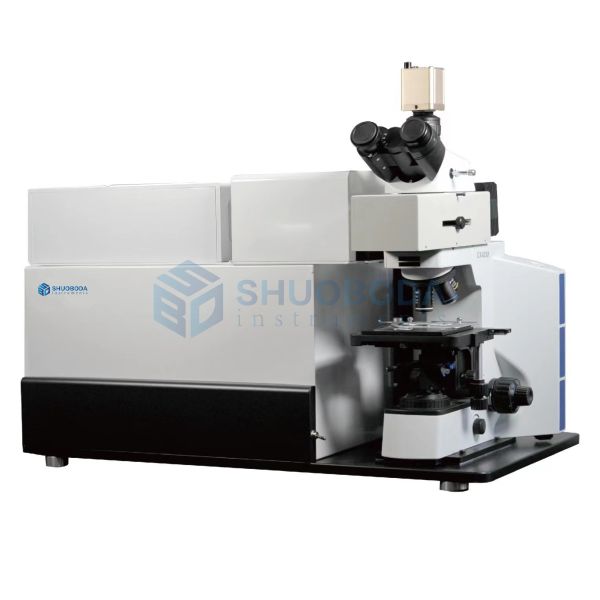

MRS-4 Micro-Raman spectrometer

MRS-4 Micro Raman Spectrometer 200nm - 800nm Raman Spectroscopy Machine

Product description

MRS-4S is a general-purpose microscopic confocal Raman spectrometer. Based on the modular design concept and advanced optical system, it achieves high performance and high-cost performance. It is suitable for university teaching, basic scientific research, enterprise testing and R&D., environmental protection and other fields

Features

Visual operation control, intuitive and simple

Sample size up to 2μm

Low wavenumber detection down to 20cm-1 is possible

Different detection methods of wavelength/wave number can be selected

Detectable polarization properties of Raman spectra

​

Model

MRS-4

Monochromator

Focal length

300mm

Grating

1200 pieces/mm

Wavelength range

200~800nm

slit

0~2mm continuously adjustable

Wavelength accuracy

≤0.2nm

Repeatability

≤0.2nm

Laser

excitation wavelength

532nm

Output Power

100mW

Microscope optical system

Infinity chromatic aberration correction system, minimum measurement diameter 2μm

eyepiece

High eye point and large field of view plan eyepiece PL10x/22mm

Micrometer available

objective lens

Infinity plan semi-apochromatic fluorescence objective (10x, 50x, 100x)

converter

Internally positioned five-hole converter

Focusing mechanism

Low hand position coarse and fine adjustment coaxial

Coarse adjustment stroke 30mm

Fine adjustment accuracy 0.002mm

Tightness adjustment device and upper limit device

Stage bracket set height adjustable

Stage

150mm x 162mm double-layer composite mechanical platform

Movement range 76mm x 50mm

Accuracy 0.1mm

X-axis single linear rail transmission

Upper platform ceramic spray paint

Lighting system

Adaptive 100V~240V wide voltage

Reflector light room

Single high-power 5W high-brightness LED light

Kohler Lighting

Reservation center

Light intensity continuously adjustable

Camera

Ultra HD 16 million pixels
